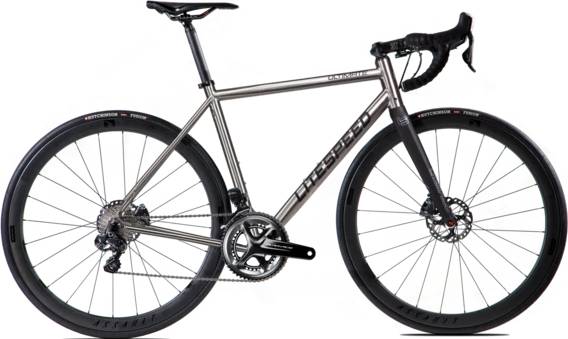

Litespeed Ultimate Disc — Dura-Ace Di2 2020
2020 Road
Estimate price |
7,439$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
titanium
Suspension Fork
Litespeed Carbon
Drivetrain
Rear Derailleur
Dura-Ace Di2 R9150
Front Derailleur
Dura-Ace Di2 R9150
Shift Levers
Dura-Ace Di2 Shift/Hydraulic Disc
Cassette
Dura-Ace 11-30
Crank
Dura-Ace R9150 50-34
Bottom Bracket
Praxis
Chain
Dura-Ace HG901
Wheels
Rims
Optimized for clearance on up to 30mm tires (most tire/rim combinations)
Tires
Continental GP5000 28c
Brakes
Brakes
Dura-Ace R9150
Disk Rotors
Shimano RT900 160mm
Cockpit
Stem
Easton EA90
Handlebar
Easton EC90 Aero
Headset
Chris King InSet 7 Matte Black
Seat
Saddle
Prologo Scratch 2 PAS Tirox
Seatpost
Litespeed Titanium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.43 mm | 1.44 mm | 1.49 mm | 1.54 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 566 mm | 571 mm | 576 mm | 592 mm | 605 mm | 619 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 59 mm | 56 mm | 56 mm | 56 mm | 57 mm |
| Stack | 519 mm | 534 mm | 549 mm | 569 mm | 594 mm | 624 mm |
| Reach | 374 mm | 379 mm | 384 mm | 394 mm | 399 mm | 404 mm |
| Top Tube Length | 519 mm | 529 mm | 544 mm | 564 mm | 579 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 455 mm | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 101 mm | 115 mm | 129 mm | 150 mm | 176 mm | 207 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 975 mm | 980 mm | 985 mm | 1001 mm | 1014 mm | 1028 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 68 mm |
| Standover Height | 720 mm | 738 mm | 756 mm | 776 mm | 799 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview
Ultimate Disc — Dura-Ace Di2 is a Litespeed Ultimate model. There are 55 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Litespeed Ultimate — Shimano 105 2020 has a starting price of 2999$. Litespeed Ultimate Gravel — SRAM Red eTap 2020 on the other hand is the most expensive at 7699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 7439$. Comparing the average cost of a Race bike to this one, you will see that Ultimate Disc — Dura-Ace Di2 price is 122.06% more expensive.
Overview of components
Fork material
Ultimate Disc — Dura-Ace Di2 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Ultimate Disc — Dura-Ace Di2 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Litespeed Ultimate Disc — Dura-Ace Di2 bike has 6 sizes, in the range of 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
