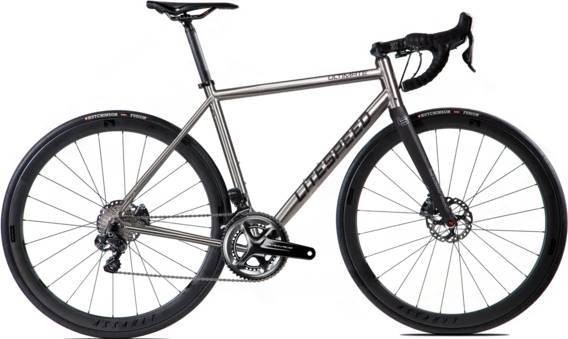

Litespeed Ultimate Disc — Ultegra Di2 2020
2020 Road
Estimate price |
4,959$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
titanium
Suspension Fork
Litespeed Carbon
Drivetrain
Rear Derailleur
Ultegra Di2
Front Derailleur
Ultegra Di2
Shift Levers
Ultegra Di2
Cassette
Ultegra 11-30
Crank
Ultegra 50/34
Bottom Bracket
Praxis
Chain
Shimano HG701
Wheels
Rims
Optimized for clearance on up to 30mm tires (most tire/rim combinations)
Tires
Continental Ultra Sport II Folding 28c
Brakes
Brakes
Ultegra
Disk Rotors
Shimano RT800 160mm
Cockpit
Stem
Easton EA70 31.8
Handlebar
Easton EA70
Headset
Cane Creek 40 Series
Seat
Saddle
Prologo Scratch 2.0
Seatpost
Race Face Next Carbon Zero Setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.43 mm | 1.44 mm | 1.49 mm | 1.54 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 566 mm | 571 mm | 576 mm | 592 mm | 605 mm | 619 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 59 mm | 56 mm | 56 mm | 56 mm | 57 mm |
| Stack | 519 mm | 534 mm | 549 mm | 569 mm | 594 mm | 624 mm |
| Reach | 374 mm | 379 mm | 384 mm | 394 mm | 399 mm | 404 mm |
| Top Tube Length | 519 mm | 529 mm | 544 mm | 564 mm | 579 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 455 mm | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 101 mm | 115 mm | 129 mm | 150 mm | 176 mm | 207 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 975 mm | 980 mm | 985 mm | 1001 mm | 1014 mm | 1028 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 68 mm |
| Standover Height | 720 mm | 738 mm | 756 mm | 776 mm | 799 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview
Ultimate Disc — Ultegra Di2 completes the Litespeed Ultimate model. Litespeed launched 55 bikes of this model so far. Take a sneak peek at all Litespeed Ultimate bikes models from 2020, by clicking here.
Model range prices
Litespeed Ultimate — Shimano 105 2020 is the most economical model, with a starting price of 2999$. Litespeed Ultimate Gravel — SRAM Red eTap 2020 on the other hand costs 7699$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Litespeed released this model in 2020, its price was 4959$. Comparing the average cost of a Race bike to this one, you will see that Ultimate Disc — Ultegra Di2 price is 48.03% higher.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Ultimate Disc — Ultegra Di2 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ultimate Disc — Ultegra Di2 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
