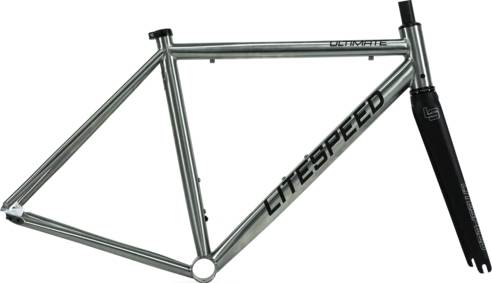

Litespeed Ultimate Frame — Frameset 2020
2020 Road
Estimate price |
2,399$
Weight | 1.23 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
titanium
Drivetrain
Bottom Bracket
PF30 BB shell
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.43 mm | 1.44 mm | 1.49 mm | 1.54 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 566 mm | 571 mm | 576 mm | 592 mm | 605 mm | 620 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 59 mm | 56 mm | 55 mm | 55 mm | 55 mm |
| Stack | 519 mm | 534 mm | 549 mm | 569 mm | 594 mm | 624 mm |
| Reach | 374 mm | 379 mm | 384 mm | 394 mm | 399 mm | 404 mm |
| Top Tube Length | 517 mm | 526 mm | 545 mm | 561 mm | 579 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 455 mm | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 101 mm | 115 mm | 128 mm | 149 mm | 176 mm | 207 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 966 mm | 971 mm | 976 mm | 993 mm | 1005 mm | 1021 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 68 mm |
| Standover Height | 717 mm | 735 mm | 752 mm | 774 mm | 796 mm | 826 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview
Ultimate Frame — Frameset belongs to the Litespeed Ultimate model. Litespeed launched 55 frames of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Litespeed Ultimate Frame — Frameset 2020 is the most economical model, with a starting price of 2399$. Litespeed Ultimate Disc Frame — Frame Only (i2 / eTap Specific) 2020 on the other hand costs 2899$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race frames
If you want to purchase a solid Race frame, it is important to know that the average cost is 2445$. However, this doesn’t mean that if you spend less money on a Race frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
This frame was released in 2020 and its price was 2399$. Doing a quick comparison, we notice that Ultimate Frame — Frameset price is 1.92% smaller than the average cost of a Race frame.
Race frames average weight
On a deeper look, we notice that the average weight of a Race frame is 1.41 kg (3.11 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Litespeed Ultimate Frame — Frameset it’s weighing 1.23 kg (2.71 lbs). At this weight, is considerably lighter than average. In short, the average Race frame weight is 14.63% higher than this one.
Overview of components
Sizes
This frame is available in 6 sizes. They vary from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
