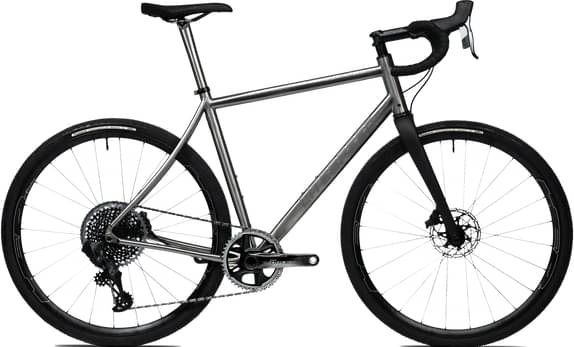

Litespeed Ultimate Gravel — SRAM Force XPLR eTap AXS 2022
2022 Road
Estimate price |
6,465$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Force XPLR eTap, Force eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
titanium
Suspension Fork
Select Fork Above
Drivetrain
Rear Derailleur
SRAM Force XPLR eTap AXS 12spd
Shift Levers
SRAM Force eTap AXS
Cassette
SRAM Force XPLR 10-44 12spd
Crank
SRAM Force 1X 42T 12spd
Bottom Bracket
SRAM Press-Fit
Chain
SRAM Force 12spd
Wheels
Rims
Sun Ringle Charger Comp
Tires
700C Tires - Panaracer Gravel King SS 700x38c Tubeless
Brakes
Brakes
SRAM Force eTap AXS HRD
Disk Rotors
SRAM Centerline 160mm
Cockpit
Stem
FSA Energy
Handlebar
FSA A-Wing AGX Alloy
Headset
FSA 55R 1.5" ACR
Seat
Saddle
WTB Volt Medium Cromoly
Seatpost
FSA SL-K Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.51 mm | 1.55 mm | 1.61 mm |
| Bottom Bracket Height | 275 mm | 278 mm | 278 mm | 281 mm | 281 mm |
| Front Center | 587 mm | 592 mm | 609 mm | 622 mm | 637 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Stack | 557 mm | 572 mm | 592 mm | 617 mm | 647 mm |
| Reach | 377 mm | 382 mm | 392 mm | 397 mm | 402 mm |
| Top Tube Length | 535 mm | 549 mm | 565 mm | 584 mm | 598 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 106 mm | 123 mm | 144 mm | 173 mm | 205 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1008 mm | 1014 mm | 1031 mm | 1045 mm | 1060 mm |
| Bottom Bracket Drop | 74 mm | 71 mm | 71 mm | 68 mm | 68 mm |
| Standover Height | 762 mm | 782 mm | 797 mm | 823 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |
Model Overview
Ultimate Gravel — SRAM Force XPLR eTap AXS is a Litespeed Ultimate model. Litespeed launched 55 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Litespeed Ultimate — Shimano 105 2022 is the most affordable bike of this model and has a price of 3695$. On the other hand, Litespeed Ultimate Disc — Dura-Ace Di2 12 Spd 2022, is the most expensive and costs 9144$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2022 and its price was 6465$. If we compare this with the average Gravel bike cost we notice that the price is 162.59% higher.
Overview of components
Wheels
The wheels on Ultimate Gravel — SRAM Force XPLR eTap AXS are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Litespeed Ultimate Gravel — SRAM Force XPLR eTap AXS is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Ultimate Gravel — SRAM Force XPLR eTap AXS comes in 5 sizes, that range from 162 cm – 199 cm (5.31 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
