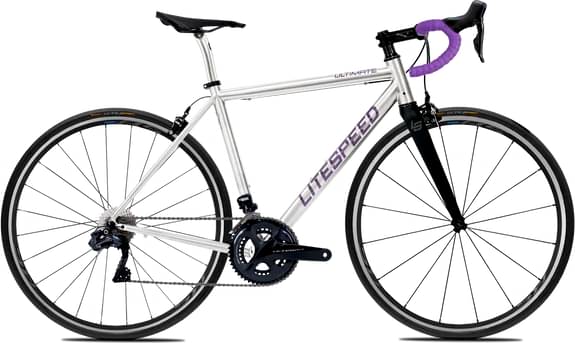

Litespeed Ultimate — Shimano 105 11 Spd 2023
2023 Road
Estimate price |
3,695$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
titanium
Suspension Fork
Litespeed Carbon Tapered Fork
Drivetrain
Rear Derailleur
Shimano 105 R7000
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 R7000
Cassette
R7000 11-30
Crank
Shimano 105 50/34
Bottom Bracket
Praxis
Chain
Shimano HG601
Wheels
Rims
Optimized for clearance on up to25mm tires (most tire/rim combinations)
Tires
Continental Ultrasport3 25c
Brakes
Brakes
Shimano 105 R7000
Cockpit
Stem
FSA Gossamer
Handlebar
FSA Gossamer Wing Compact
Headset
Cane Creek 40 Series
Seat
Saddle
Prologo Nago Evo 134
Seatpost
FSA Gossamer Alloy 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.43 mm | 1.44 mm | 1.49 mm | 1.54 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 268 mm |
| Front Center | 566 mm | 571 mm | 576 mm | 592 mm | 605 mm | 620 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 59 mm | 56 mm | 55 mm | 55 mm | 55 mm |
| Stack | 519 mm | 534 mm | 549 mm | 569 mm | 594 mm | 624 mm |
| Reach | 374 mm | 379 mm | 384 mm | 394 mm | 399 mm | 404 mm |
| Top Tube Length | 517 mm | 526 mm | 545 mm | 561 mm | 579 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 455 mm | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 101 mm | 115 mm | 128 mm | 149 mm | 176 mm | 207 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 966 mm | 971 mm | 976 mm | 993 mm | 1005 mm | 1021 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 68 mm |
| Standover Height | 717 mm | 735 mm | 752 mm | 774 mm | 796 mm | 826 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
About this model
Ultimate — Shimano 105 11 Spd is a Litespeed Ultimate model. 55 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Litespeed Ultimate — Shimano 105 11 Spd 2023 is the most economical model, with a starting price of 3695$. Litespeed Ultimate Disc — Dura-Ace Di2 12 Spd 2023 on the other hand costs 7599$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3695$. In conclusion, this bike price is 10.3% more expensive than the price of the average Race bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Ultimate — Shimano 105 11 Spd bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Litespeed Ultimate — Shimano 105 11 Spd has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Litespeed Ultimate — Shimano 105 11 Spd bike has 6 sizes, in the range of 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
