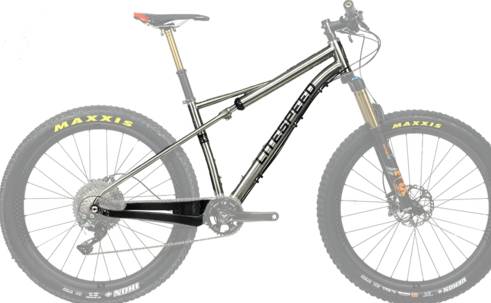

Litespeed Unicoi Frame — Frame Only (i2 / eTap Specific) 2020
2020 Mountain
Estimate price |
3,199$
Weight | 2.61 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 29" / 27.5" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
titanium
Suspension Fork
Optimized for 100-140mm travel fork
Drivetrain
Bottom Bracket
PF30 BB shell
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.541 mm | 1.541 mm | 1.47 mm | 1.47 mm | 1.415 mm | 1.415 mm | 1.368 mm | 1.368 mm |
| Bottom Bracket Height | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm |
| Front Center | 279 mm | 279 mm | 287 mm | 287 mm | 296 mm | 296 mm | 307 mm | 307 mm |
| Rake | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm |
| Stack | 250 mm | 250 mm | 252 mm | 252 mm | 254 mm | 254 mm | 258 mm | 258 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 150 mm | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm | 210 mm | 210 mm |
| Head Tube Angle | 67 ° | 67 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 48 mm | 48 mm | 50 mm | 50 mm | 52 mm | 52 mm | 56 mm | 56 mm |
| Wheelbase | 459 mm | 459 mm | 466 mm | 466 mm | 476 mm | 476 mm | 486 mm | 486 mm |
| Bottom Bracket Drop | 243 mm | 224 mm | 243 mm | 224 mm | 243 mm | 224 mm | 243 mm | 224 mm |
| Standover Height | 315 mm | 315 mm | 315 mm | 315 mm | 317 mm | 317 mm | 323 mm | 323 mm |
| Wheels | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
About this model
Unicoi Frame — Frame Only (i2 / eTap Specific) belongs to the Litespeed Unicoi model. Litespeed released 11 frames variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Litespeed Unicoi Frame — Frameset 2020 is the most economical model, with a starting price of 3199$. Litespeed Unicoi Frame — Frame Only (i2 / eTap Specific) 2020 on the other hand costs 3199$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail frames average price
According to our math, the average price for a trustworthy Trail frame is 1736$. However, even though the average price of a Trail frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
When Litespeed released this model in 2020, its price was 3199$. Comparing this to the average Trail frame price, we see that the price is 84.27% higher.
Average weight for Trail frames
On a deeper look, we notice that the average weight of a Trail frame is 2.93 kg (6.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Unicoi Frame — Frame Only (i2 / eTap Specific) weighs 2.61 kg (5.75 lbs) and is considerably lighter than the average. In other words, this model is 12.26% lighter than the average Trail frame.
Unicoi Frame — Frame Only (i2 / eTap Specific) components
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
