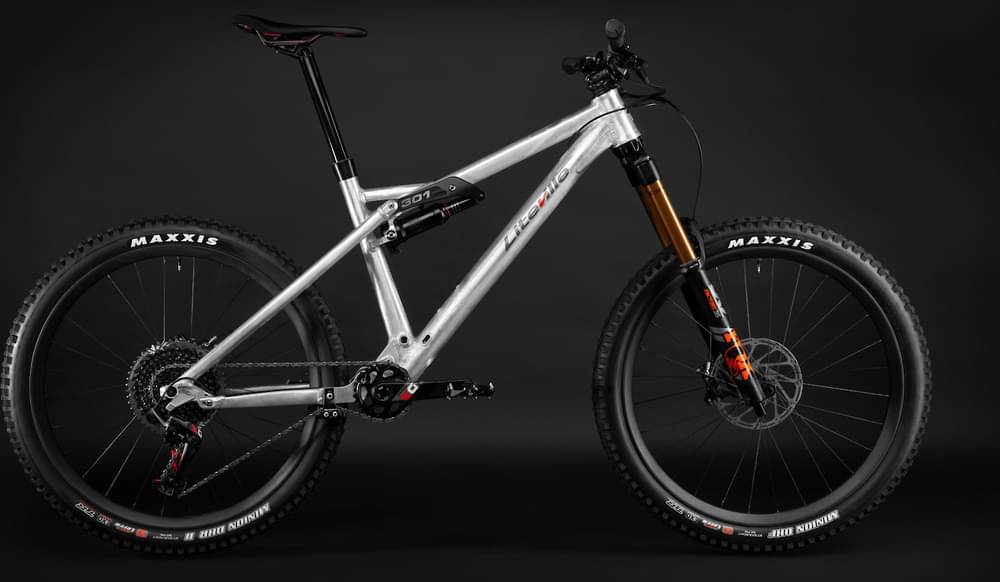

Liteville 301 Mk15 Trail Eagle X01 2021
2021 Mountain
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 130mm -
Fork RockShox Pike Select
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike Select+, Offset: 37mm (27.5" 150mm), 42mm (29" 140mm)
Rear Shock
RockShox Deluxe Select+
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM X01 Eagle, 12-speed, 10-50 tooth
Crank
SRAM X01 Eagle, 170mm or 175mm length
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
Syntace SCS-III EVO6
Pedals
None
Wheels
Front Hub
Syntace W33i Straight Alu wheelset, 110x15mm Boost front, EVO6 148x12mm Boost rear with XD driver, Option: Syntace C33i Straight Carbon wheelset
Rear Hub
Syntace W33i Straight Alu wheelset, 110x15mm Boost front, EVO6 148x12mm Boost rear with XD driver, Option: Syntace C33i Straight Carbon wheelset
Rims
Syntace W33i Straight Alu wheelset, Option: Syntace C33i Straight Carbon wheelset
Spokes
Syntace W33i Straight Alu wheelset, Option: Syntace C33i Straight Carbon wheelset
Tires
Maxxis Ardent, 2.4"
Brakes
Brakes
SRAM G2 RSC, 200mm front rotor, 180mm rear rotor
Brake Levers
SRAM G2 RSC
Cockpit
Stem
Syntace Megaforce3, 30/40/50/60mm lengths
Handlebar
Syntace Vector Carbon Superlight High10/High20, 780mm width, 8° or 12° sweep
Grips
Syntace Moto, lock-on, 30mm or 33mm diameter
Headset
Syntace VarioSpin 0°
Seat
Saddle
SQlab 611 Ergowave Liteville Edition, 13/14/15cm width options
Seatpost
Eightpins integrated dropper, up to 220mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | LG | XL | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.356 mm | 1.369 mm | 1.361 mm | 1.319 mm | 1.314 mm | 12.807 mm | 1.289 mm | 1.274 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 343 mm | 338 mm | 343 mm | 344 mm | 338 mm | 344 mm |
| Stack | 586 mm | 616 mm | 615 mm | 616 mm | 615 mm | mm | 625 mm | 655 mm |
| Reach | 432 mm | 450 mm | 452 mm | 467 mm | 468 mm | 486 mm | 485 mm | 514 mm |
| Top Tube Length | 576 mm | 606 mm | 606 mm | 623 mm | 623 mm | 644 mm | 645 mm | 683 mm |
| Seat Tube Angle | 76.3 ° | 75.8 ° | 75.9 ° | 75.9 ° | 75.9 ° | 75.5 ° | 75.7 ° | 75.5 ° |
| Seat Tube Length | 417 mm | 441 mm | 441 mm | 465 mm | 465 mm | 489 mm | 489 mm | 537 mm |
| Head Tube Angle | 65.2 ° | 65 ° | 65.1 ° | 65 ° | 65.1 ° | 65.1 ° | 65 ° | 65.1 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm | 155 mm |
| Chainstay Length | 422 mm | 428 mm | 438 mm | 428 mm | 438 mm | 445 mm | 435 mm | 450 mm |
| Wheelbase | 1158 mm | 1198 mm | 1207 mm | 1215 mm | 1224 mm | 1253 mm | 1244 mm | 1301 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 12 mm | 17 mm | 12 mm | 11 mm | 17 mm | 11 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
301 Mk15 Trail Eagle X01 is a Liteville 301 model. Liteville launched 4 bikes of this model so far. You can easily view all of the Liteville 301 bikes models from 2021, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
301 Mk15 Trail Eagle X01 weighs 13.2 kg (29.1 lbs) and is slightly heavier than the average. In other words, this model is 1.69% heavier than the average Trail bike.
301 Mk15 Trail Eagle X01 components
Fork
The 301 Mk15 Trail Eagle X01 comes factory-installed with the RockShox Pike Select fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Deluxe Select+, with a travel distance of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on 301 Mk15 Trail Eagle X01 are the 27.5″ carbon type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Liteville 301 Mk15 Trail Eagle X01 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Liteville 301 Mk15 Trail Eagle X01 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
