Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle AXS, e*thirteen -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS system, integrated -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 38 Factory EMTB, GRIP2 damper
Rear Shock
FOX FLOAT X2 Factory, 205mm x 65mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12-speed, electronic wireless
Front Derailleur
None
Shift Levers
SRAM X01 Eagle AXS Controller, 12-speed, electronic wireless
Cassette
SRAM X01 Eagle XG-1295, 12-speed, 10-52 tooth
Crank
e*thirteen e*spec Plus, 160mm length
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
Option: Syntace ChainTunnel
Pedals
Syntace NumberNine2 Titan
Wheels
Front Hub
Syntace C33i Straight Carbon wheelset, 15x110mm Boost front, EVO6 12x148mm Boost rear with XD driver
Rear Hub
Syntace C33i Straight Carbon wheelset, 15x110mm Boost front, EVO6 12x148mm Boost rear with XD driver
Rims
Syntace C33i Straight Carbon wheelset, includes Syntace tubeless kit
Spokes
Syntace C33i Straight Carbon wheelset
Tires
Front: Maxxis Minion DHF, 3C, EXO, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 27.5" x 2.8"
Brakes
Brakes
Trickstuff Direttissima, 4-piston, 203mm rotors
Brake Levers
Trickstuff Direttissima
Cockpit
Stem
Syntace Megaforce3, 40mm length
Handlebar
Syntace Vector Carbon Superlight High20, 780mm width
Grips
Syntace Moto, lock-on, 30mm diameter
Headset
Syntace VarioSpin 0°
Seat
Saddle
SQlab 611 Ergowave Carbon, 14cm width
Seatpost
EIGHTPINS integrated dropper, up to 220mm drop
Motor & Battery
Motor
Shimano STEPS EP8, 85Nm torque, 250W
Battery
Shimano STEPS system, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm |
| Front Center | 785 mm | 813 mm |
| Rake | 35 mm | 35 mm |
| Trail | 140 mm | 140 mm |
| Stack | 638.3 mm | 647.3 mm |
| Reach | 442 mm | 465 mm |
| Top Tube Length | 602 mm | 627.8 mm |
| Seat Tube Angle | 76 ° | 76 ° |
| Seat Tube Length | 446 mm | 470 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm |
| Chainstay Length | 437 mm | 437 mm |
| Wheelbase | 1221 mm | 1249 mm |
| Bottom Bracket Drop | 16 mm | 16 mm |
| Wheels | 29" | 29" |
Model Overview

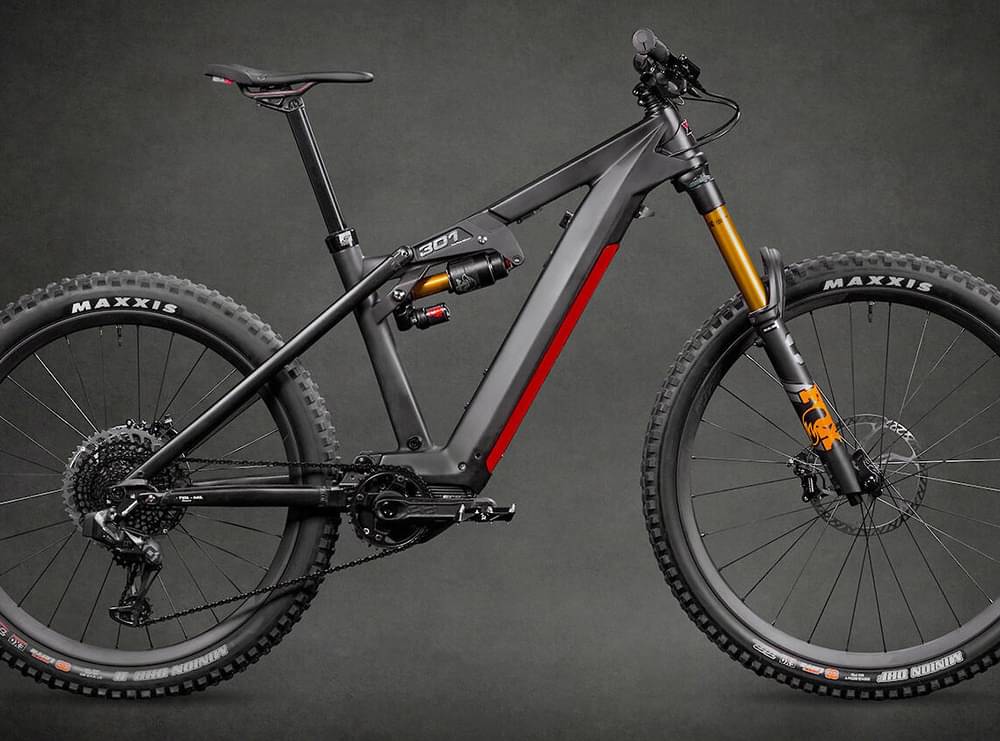

301CE Mk1 Air.Limited completes the Liteville E 301ce model. Liteville released 5 e-bikes variations of this model so far. Take a sneak peek at all Liteville E 301ce e-bikes models from 2021, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
301CE Mk1 Air.Limited components
Fork
Liteville 301CE Mk1 Air.Limited 2021 e-bike is equipped with the Fox Factory Float 38 fork, and has 170mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX FLOAT X2 Factory rear shock model, which has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the 301CE Mk1 Air.Limited e-bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The 301CE Mk1 Air.Limited has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Liteville 301CE Mk1 Air.Limited comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
