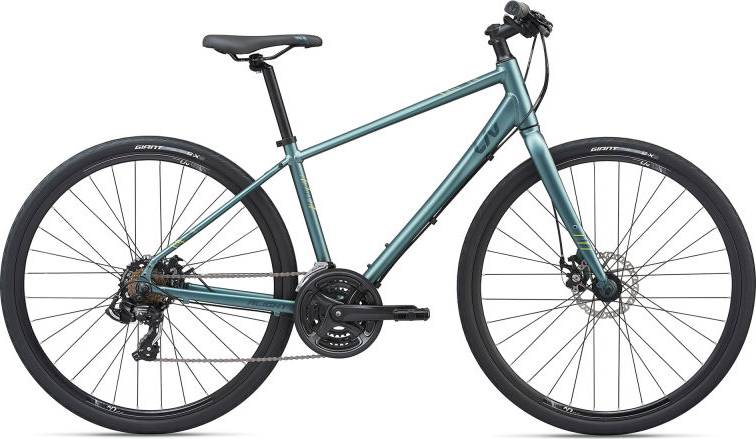

Liv Alight 3 Disc 2020
2020 Urban
Estimate price |
407$
Weight | 12.72 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
148cm - 163cm
SM
158cm - 169cm
MD
164cm - 175cm
LG
170cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum, disc
Suspension Fork
alloy, rack mounts
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Tourney
Shift Levers
Shimano ST-EF41
Cassette
MF-TZ50, 14x34, 7-Speed
Crank
forged alloy, 28/38/48
Bottom Bracket
cartridge
Chain
KMC Z8.3
Pedals
Giant Urban Fitness
Wheels
Front Hub
Alloy 32h, Loose Bearing, Disc
Rear Hub
Alloy 32h, Loose Bearing, Disc
Rims
Giant GX06, Double Wall, Alloy
Spokes
Stainless
Tires
Giant S-X3 Puncture Protect, 700x38
Brakes
Brakes
Tektro MD-U510 Mechanical Disc, 160mm
Brake Levers
Shimano ST-EF41
Cockpit
Stem
Giant Sport
Handlebar
Giant Sport, alloy
Seat
Saddle
Liv Sport Comfort
Seatpost
Giant Sport, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.52 mm | 1.52 mm |
| Front Center | 623 mm | 629 mm | 633 mm | 649 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75.1 mm | 72 mm | 68.7 mm | 69.2 mm |
| Stack | 570 mm | 587 mm | 603 mm | 617 mm |
| Reach | 387 mm | 392 mm | 396 mm | 407 mm |
| Top Tube Length | 549 mm | 564 mm | 579 mm | 594 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1071 mm | 1077 mm | 1081 mm | 1097 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 687 mm | 723 mm | 753 mm | 783 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 148 cm | 158 cm | 164 cm | 170 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 183 cm |
About this model
Alight 3 Disc belongs to the Liv Alight model. Liv launched 60 bikes of this model so far. Take a sneak peek at all Liv Alight bikes models from 2020, by clicking here.
Model range prices
Liv Alight 24 2020 is the most economical model, with a starting price of 350$. Liv Alight 2 DD City Disc 2020 on the other hand costs 710$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter bikes
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 411$. Comparing the average cost of a Commuter bike to this one, you will see that Alight 3 Disc price is 85.4% lower.
Average weight for Commuter bikes
The average weight for Commuter bikes is 14.29 kg (31.5 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 12.72 kg (28.04 lbs), Liv bike is considerably lighter than average. In conclusion, the average Commuter bike weighs 12.34% more than Alight 3 Disc.
Overview of components
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the Alight 3 Disc bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Liv Alight 3 Disc has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 148 cm – 183 cm (4.86 ft – 6 ft). In conclusion, finding one for you shouldn’t be a problem.
