Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
148cm - 163cm
SM
158cm - 169cm
MD
164cm - 175cm
LG
170cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum, disc
Suspension Fork
steel/alloy, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Altus
Shift Levers
Shimano Tourney, 3x7
Cassette
Shimano MF-TZ500, 14x34
Crank
ProWheel TY-CQ99, 28/38/48 XS:165mm, S:165mm, M:170mm, L:172.5mm
Bottom Bracket
cartridge
Chain
KMC Z7
Pedals
platform
Wheels
Front Hub
Giant GX Disc wheelset
Rear Hub
Giant GX Disc wheelset
Rims
Giant GX Disc wheelset
Spokes
Giant GX Disc wheelset
Tires
Giant S-X3, puncture protect, 700x38c
Brakes
Brakes
Tektro TKB-172 mechanical [F]160mm, [R]160mm
Brake Levers
Tektro mechanical
Cockpit
Stem
Giant Sport, 25.4mm XS:80mm, S:80mm, M:90mm, L:100mm
Handlebar
Sport, 25.4mm XS:60cm, S:60cm, M:64cm, L:64cm
Grips
Dynamic Comfort XS: 31mm, S:31mm, M:31mm, L:34mm
Seat
Saddle
Liv Sport Comfort
Seatpost
alloy, suspension, 30.9mm XS:350mm, S:350mm, M:350mm, L:350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.51 mm | 1.5 mm | 1.48 mm |
| Front Center | 607 mm | 617 mm | 627 mm | 647 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 78.2 mm | 74.8 mm | 71.4 mm | 71.4 mm |
| Stack | 558 mm | 579 mm | 591 mm | 605 mm |
| Reach | 375 mm | 384 mm | 395 mm | 410 mm |
| Top Tube Length | 539 mm | 554 mm | 574 mm | 594 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 160 mm | 175 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1048 mm | 1059 mm | 1069 mm | 1089 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 595 mm | 594 mm | 595 mm | 591 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 148 cm | 158 cm | 164 cm | 170 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 183 cm |
About this model

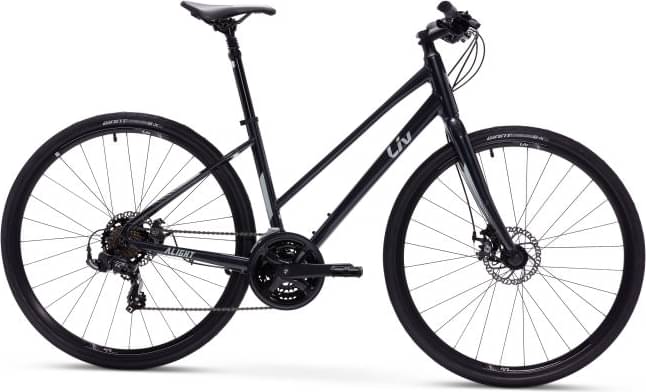

Alight Disc 3 completes the Liv Alight model. Liv released 60 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Liv Alight 24 2022 has a starting price of 337$. Liv Alight DD Disc 1 2022 on the other hand is the most expensive at 930$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter bikes average price
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 650$. In conclusion, this bike price is 17.23% smaller than the price of the average Commuter bike.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The wheels on Alight Disc 3 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Alight Disc 3 comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 4 sizes. They vary from 148 cm – 183 cm (4.86 ft – 6 ft). In conclusion, finding one for you shouldn’t be a problem.
