Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 70Nm mid-drive -
Battery EnergyPak Smart 625Wh EnergyPak Plus range extender compatible -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 163cm
SM
158cm - 169cm
MD
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX Aluminium, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
Suspension Fork
SR Suntour NEX E25 NLO 75mm travel 15AH
Rear Shock
-
Drivetrain
Rear Derailleur
Shimano Deore, 10-Speed, Shadow+
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano CS-M4100, 11-42T, 10-Speed
Crank
Forged Alloy minimal Q-factor, 36/48T
Bottom Bracket
-
Chain
KMC e.10 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 15mm Axle [R] 135mm QR
Rear Hub
Giant eTracker, [F] 15mm Axle [R] 135mm QR
Rims
Giant eX 2, Tubeless Ready, 700c Aluminium
Spokes
Stainless steel
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect XC Riser 31.8x 620/690mm
Grips
Liv Connect Ergo Microtech Plus, Lock-on
Seat
Saddle
Liv Sport Comfort
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
SyncDrive Sport, 70Nm, Powered by Yamaha
Battery
EnergyPak Smart 625Wh EnergyPak Plus range extender compatible
Remote
Giant RideDash Evo
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.6 mm | 1.58 mm |
| Front Center | 637 mm | 652 mm | 667 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 88.6 mm | 88.6 mm | 88.6 mm |
| Stack | 618 mm | 627 mm | 637 mm |
| Reach | 381 mm | 393 mm | 404 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 385 mm | 435 mm | 485 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1102 mm | 1117 mm | 1132 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 158 cm | 164 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm |

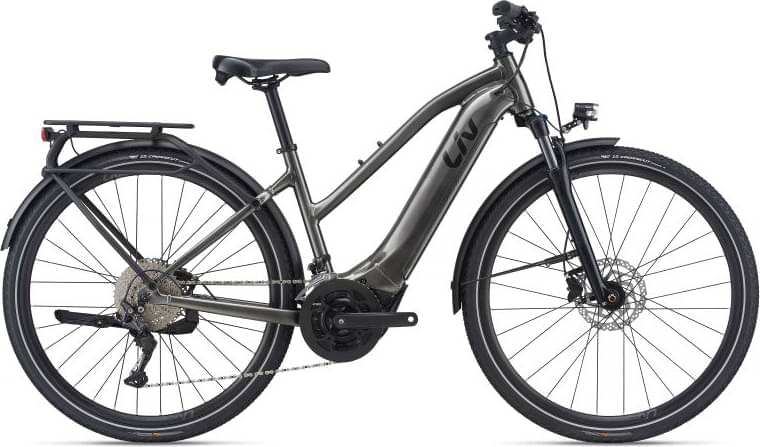

About this model
Amiti E+ 1 completes the Liv E Amiti model. Liv launched 20 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Liv Amiti E+ 1 2022 is the cheapest e-bike model and costs 3311$. Liv Amiti E+ 1 625Wh 2022 is the most expensive one and costs 4256$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3311$. If we compare this with the average Hybrid e-bike cost we notice that the price is 33.51% higher.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Amiti E+ 1 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Liv Amiti E+ 1 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 150 cm – 175 cm (4.92 ft – 5.74 ft). In short, it won’t be difficult to find the right one for you.
