Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Yamaha 80Nm hub-drive -
Battery Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
Suspension Fork
RST Volante, 60mm travel, tappered steerer, hydraulic lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
-
Shift Levers
Shimano SL-M2000
Cassette
Shimano CS-HG201, 11-36T, 9-Speed
Crank
Forged Alloy minimal Q-factor, 42T
Bottom Bracket
N/A
Chain
KMC e.9 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR, e-bike optimized
Rear Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR, e-bike optimized
Rims
Giant eX 2, Tubeless Ready, 700c aluminium, e-bike optimized
Spokes
Stainless steel
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect XC Riser, 31.8mm
Seat
Saddle
Liv Contact Comfort, Upright
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport, 80Nm powered by YAMAHA, 350% tuneable support
Battery
Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion
Remote
Giant RideControl ONE, remote button
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.61 mm | 1.61 mm | 1.61 mm |
| Front Center | 634 mm | 648 mm | 670 mm | 684 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 623 mm | 623 mm | 642 mm | 661 mm |
| Reach | 371 mm | 386 mm | 400 mm | 410 mm |
| Top Tube Length | 549 mm | 569 mm | 589 mm | 609 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 135 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1101 mm | 1115 mm | 1137 mm | 1152 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 620 mm | 600 mm | 588 mm | 574 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

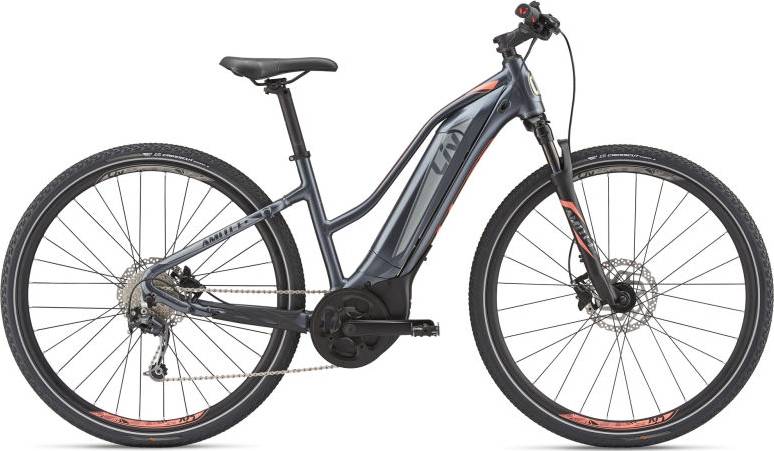

Amiti E+ 2 completes the Liv E Amiti model. Liv released 20 e-bikes variations of this model so far. You can easily view all of the Liv E Amiti e-bikes models from 2019, here.
Model range prices
Liv Amiti E+ 2 2019 is the most economical model, with a starting price of 2700$. Liv Amiti E+ 2 2019 on the other hand costs 2700$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Liv released this model in 2019, its price was 2700$. Comparing this to the average Hybrid e-bike price, we see that the price is 8.87% more expensive.
Overview of components
Fork
The RST is included from the factory. It has a travel distance of 60mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Amiti E+ 2 2019 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Liv Amiti E+ 2 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
