Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum
Suspension Fork
Composite, with alloy OverDrive steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra
Cassette
Shimano Tiagra 11x32, 10-speed
Crank
Shimano Tiagra, 34/50
Bottom Bracket
Shimano, Press Fit
Chain
KMC X10 NP
Pedals
N/A
Wheels
Front Hub
Giant Sport Tracker Road Disc, 32h
Rear Hub
Giant Sport Tracker Road Disc, 32h
Rims
Giant SR-2 Disc
Spokes
Stainless Steel, 14g
Tires
Giant P-R3, 700x25, Front and rear specific, Deflect 3
Brakes
Brakes
TRP Spyre, Mechanical disc, 160mm
Brake Levers
Shimano Tiagra
Cockpit
Stem
Giant Sport
Handlebar
Giant Connect, 31.8mm
Seat
Saddle
Liv Connect, forward
Seatpost
Giant D-Fuse, Composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.448 mm | 1.478 mm | 1.504 mm | 1.523 mm |
| Stack | 530 mm | 550 mm | 567 mm | 588 mm |
| Reach | 366 mm | 372 mm | 377 mm | 386 mm |
| Top Tube Length | 515 mm | 525 mm | 540 mm | 555 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Head Tube Angle | 70.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 135 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 998 mm | 990 mm | 1000 mm | 1016 mm |
| Standover Height | 676 mm | 701 mm | 729 mm | 765 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

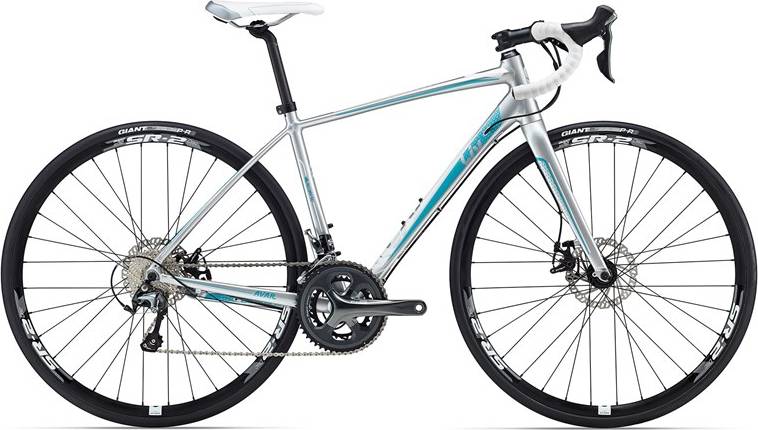

About this model
Avail 2 Disc completes the Liv Avail model. 40 bikes variations carry this model name so far. You can get a glimpse at all models from 2016, by clicking on this link.
Model range prices
Liv Avail 4 2016 is the most affordable bike of this model and has a price of 660$. On the other hand, Liv Avail 1 Disc White 2016, is the most expensive and costs 1500$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Liv released this model in 2016, its price was 1200$. In conclusion, this bike price is 95.5% lower than the price of the average Endurance bike.
Avail 2 Disc components
Fork material
Avail 2 Disc has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Liv Avail 2 Disc 2016, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Liv Avail 2 Disc bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
