Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite
Suspension Fork
Advanced-grade composite, Hybrid OverDrive steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano RS505
Cassette
Shimano 105 11x32, 11-speed
Crank
Shimano Ultegra, 34/50
Bottom Bracket
Shimano, Press fit
Chain
KMC X11 EL
Pedals
N/A
Wheels
Front Hub
Giant Performance Tracker Road Disc, Sealed Bearing, [F] 12mm axle [R] 142x12mm axle, 28h
Rear Hub
Giant Performance Tracker Road Disc, Sealed Bearing, [F] 12mm axle [R] 142x12mm axle, 28h
Rims
Giant PR-2 Disc
Spokes
Sapim Race, 14/15g
Tires
Giant P-SL 1, 700x25, Front and Rear Specific, folding
Brakes
Brakes
Shimano RS505, hydraulic disc, 160mm
Brake Levers
Shimano RS505
Cockpit
Stem
Giant Connect
Handlebar
Giant Contact, 31.8mm
Seat
Saddle
Liv Contact Forward
Seatpost
Giant D-Fuse, Composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.49 mm | 1.52 mm | 1.53 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 576 mm | 588 mm | 580 mm | 590 mm | 606 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 76 mm | 73 mm | 64 mm | 64 mm | 64 mm |
| Stack | 506 mm | 522 mm | 542 mm | 561 mm | 580 mm |
| Reach | 354 mm | 364 mm | 364 mm | 369 mm | 378 mm |
| Top Tube Length | 492 mm | 507 mm | 517 mm | 532 mm | 547 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 375 mm | 410 mm | 445 mm | 480 mm | 515 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 978 mm | 990 mm | 982 mm | 992 mm | 1008 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 636 mm | 667 mm | 694 mm | 722 mm | 756 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

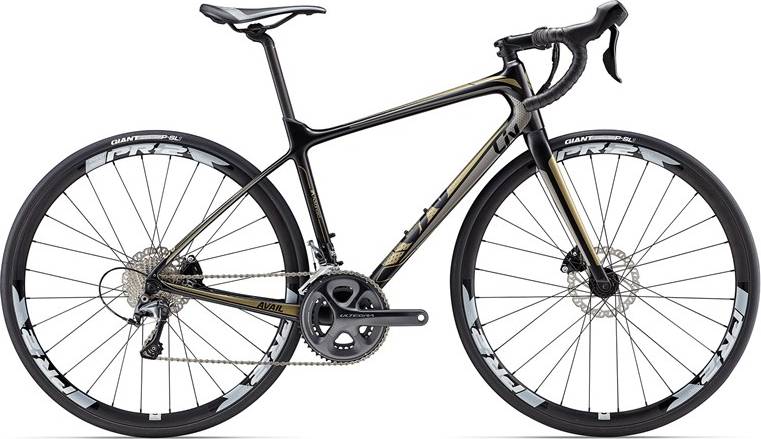

About this model
Avail Advanced 1 completes the Liv Avail Advanced model. Liv launched 43 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
The most economical model, the Liv Avail Advanced 3 2017 has a starting price of 1550$. Liv Avail Advanced Pro 1 2017 on the other hand is the most expensive at 3250$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2017 and its price was 2375$. If we compare this with the average Endurance bike cost we notice that the price is 1.24% more expensive.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Liv Avail Advanced 1 2017, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Liv Avail Advanced 1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
