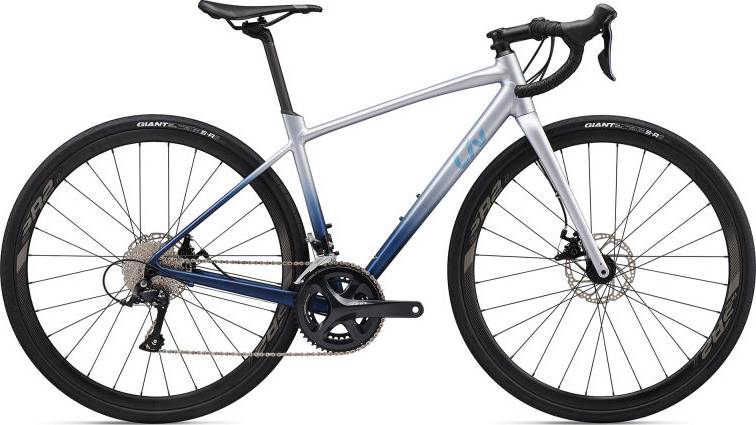

Liv Avail AR 3 2020
2020 Road
Estimate price |
1,000$
Weight | 10.12 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum
Suspension Fork
composite, OverDrive steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora
Cassette
Shimano CS-HG400, 11x34
Crank
Shimano Sora, 34/50
Bottom Bracket
Shimano, threaded
Chain
KMC X9
Pedals
Pedal with toe clips/straps
Wheels
Front Hub
Giant S-R2 Disc wheelset
Rear Hub
Giant S-R2 Disc wheelset
Rims
Giant S-R2 Disc wheelset
Spokes
Giant S-R2 Disc wheelset
Tires
Giant S-R3 AC, 700x32
Brakes
Brakes
Tektro MD-C550
Brake Levers
Shimano Sora
Cockpit
Stem
Giant Sport
Handlebar
Giant Connect
Seat
Saddle
Liv Contact (forward)
Seatpost
Giant D-Fuse, alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.53 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm |
| Front Center | 590 mm | 592 mm | 597 mm | 613 mm |
| Rake | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 69.5 mm | 62.9 mm | 59.6 mm | 59.6 mm |
| Stack | 531 mm | 554 mm | 575 mm | 594 mm |
| Reach | 359 mm | 362 mm | 366 mm | 376 mm |
| Top Tube Length | 508 mm | 518 mm | 533 mm | 548 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 445 mm | 480 mm | 515 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 118 mm | 138 mm | 158 mm | 178 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 992 mm | 994 mm | 999 mm | 1015 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 674 mm | 702 mm | 729 mm | 759 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Avail AR 3 completes the Liv Avail Ar model. Liv launched 13 bikes of this model so far. You can easily view all of the Liv Avail Ar bikes models from 2020, here.
Model range prices
Liv Avail AR 3 2020 is the most affordable bike of this model and has a price of 1000$. On the other hand, Liv Avail AR 1 2020, is the most expensive and costs 1550$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Liv released this model in 2020, its price was 1000$. Doing a quick comparison, we notice that Avail AR 3 price is 134.6% smaller than the average cost of an Endurance bike.
Average weight for Endurance bikes
Endurance bikes have an average weight of 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 10.12 kg (22.31 lbs), the Avail AR 3 model is much heavier than average. In conclusion, the average Endurance bike weighs 23.41% less than Avail AR 3.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Avail AR 3 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
