Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-Grade Aluminum
Suspension Fork
Advanced-Grade Composite
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano 105, 11x34
Crank
Shimano RS510, 34/50
Bottom Bracket
Shimano, press fit
Chain
KMC X11EL-1
Pedals
N/A
Wheels
Front Hub
Giant PR-2 wheelset
Rear Hub
Giant PR-2 wheelset
Rims
Giant PR-2 wheelset
Spokes
Giant PR-2 wheelset
Tires
Giant P-R3 AC, 700x28
Brakes
Brakes
Tektro TK-B178
Brake Levers
Shimano 105
Cockpit
Stem
Giant Sport
Handlebar
Giant Connect
Seat
Saddle
Liv Contact (forward)
Seatpost
Giant D-Fuse, composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.48 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 588 mm | 580 mm | 590 mm | 606 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 63.5 mm | 63.5 mm | 63.5 mm |
| Stack | 526 mm | 546 mm | 565 mm | 584 mm |
| Reach | 368 mm | 368 mm | 373 mm | 382 mm |
| Top Tube Length | 511 mm | 521 mm | 536 mm | 551 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 465 mm | 500 mm | 535 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 135 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 994 mm | 986 mm | 996 mm | 1012 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 683 mm | 712 mm | 740 mm | 768 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

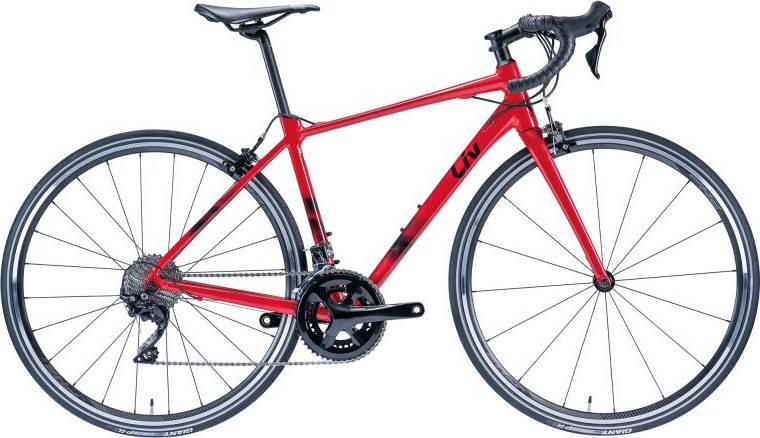

Avail SL 1 is a Liv Avail model. 40 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Liv Avail 3 2020 is the cheapest bike model and costs 700$. Liv Avail SL 1 Disc 2020 is the most expensive one and costs 1702$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1215$. If we compare this with the average Endurance bike cost we notice that the price is 93.09% smaller.
Avail SL 1 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Avail SL 1 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Avail SL 1 has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
Liv Avail SL 1 bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
