Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 32
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-grade aluminum, 120mm FlexPoint suspension
Suspension Fork
Fox 32 Rhythm, Grip Damper, Boost, OverDrive, 120mm travel
Rear Shock
Fox Float Performance EVOL
Drivetrain
Rear Derailleur
Shimano SLX
Front Derailleur
N/A
Shift Levers
Shimano SLX
Cassette
Shimano SLX 11x46, 11-Speed
Crank
Shimano SLX, 30T
Bottom Bracket
Shimano, Press fit
Chain
KMC X11-1
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Giant Performance Tracker, sealed bearing, [F] Boost 110x15mm, [R] QR
Rear Hub
Giant Performance Tracker, sealed bearing, [F] Boost 110x15mm, [R] QR
Rims
Giant XC-1, Tubeless
Spokes
Sapim Race, 14/15g
Tires
Maxxis Ardent; Tubeless, 60 TPI, [F] 27.5x2.4, [R] 27.5x2.25
Brakes
Brakes
Shimano MT365, hydraulic disc, [F] 180mm, [R] 160mm
Brake Levers
Shimano MT365
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect Trail, 31.8mm
Headset
Integrated OverDrive sealed cartridge bearing
Seat
Saddle
Liv Contact Upright
Seatpost
TranzX YSP-19 dropper post, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.36 mm | 1.36 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 655 mm | 675 mm | 691 mm | 702 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 562 mm | 567 mm | 576 mm | 585 mm |
| Reach | 394 mm | 412 mm | 424 mm | 431 mm |
| Top Tube Length | 554 mm | 574 mm | 594 mm | 604 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 390 mm | 440 mm | 490 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1093 mm | 1113 mm | 1129 mm | 1140 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 696 mm | 697 mm | 725 mm | 761 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

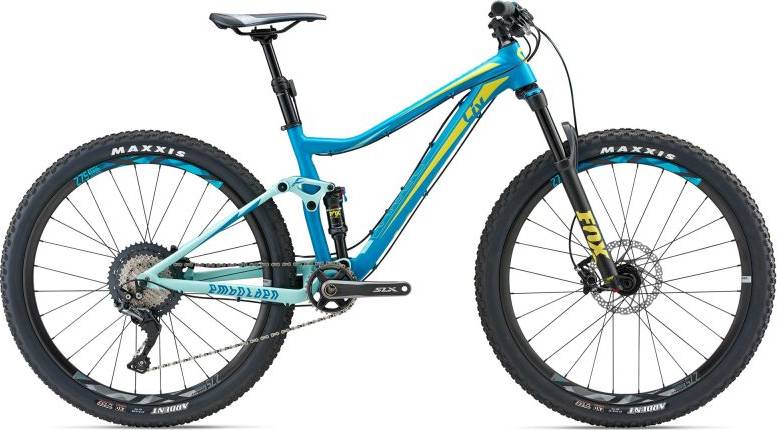

Embolden 1 is a Liv Embolden model. Liv released 14 bikes variations of this model so far. Take a sneak peek at all Liv Embolden bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Liv Embolden 2 2018 has a starting price of 1530$. Liv Embolden 1 2018 on the other hand is the most expensive at 2145$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2145$. If we compare this with the average Trail bike cost we notice that the price is 28.76% smaller.
Embolden 1 components
Fork
The fork installed on this bike is the Fox Rhythm Float 32 model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Liv Embolden 1 bike has the Fox Float Performance EVOL model installed, and has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Embolden 1 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Embolden 1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Embolden 1. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
