Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset SLX, Deore -
Suspension Full -
Motor Yamaha 80Nm mid-drive -
Battery Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon RL, Lockout, 110x15mm MaxleLite
Rear Shock
RockShox Monarch RT, high volume, 184x44mm, standard eyelet, custom tuned
Drivetrain
Rear Derailleur
Shimano SLX, 10-speed, Shadow+
Front Derailleur
None
Shift Levers
Shimano Deore, 10-speed
Cassette
Shimano HG50-10, 11-36 tooth, 10-speed
Crank
Forged Alloy minimal Q-factor
Chain
KMC e.10 Sport, e-bike optimized
Chain Guide
None
Pedals
None
Wheels
Front Hub
Giant eTracker, sealed cartridge bearing, IS 6-bolt, e-bike optimized
Rear Hub
Giant eTracker, sealed cartridge bearing, IS 6-bolt, e-bike optimized
Rims
Giant AM 27.5+, tubeless ready, 35mm inner width, e-bike optimized
Spokes
Stainless steel
Tires
Maxxis Rekon 27.5x2.6", EXO, TR
Brakes
Brakes
Shimano BR-MT500, 203mm rotors
Brake Levers
Shimano BR-MT500
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect TR, 780mm
Headset
OverDrive, integrated
Seat
Saddle
Liv Contact, upright
Seatpost
Giant 2-bolt, micro adjustable, forged aluminium
Motor & Battery
Motor
Giant SyncDrive Sport, 80Nm powered by YAMAHA, 350% tuneable support
Battery
Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.45 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 375 mm | 375 mm | 375 mm | 375 mm |
| Front Center | 683 mm | 698 mm | 714 mm | 730 mm |
| Rake | 31 mm | 31 mm | 31 mm | 31 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 589 mm | 589 mm | 599 mm | 608 mm |
| Reach | 392 mm | 407 mm | 419 mm | 432 mm |
| Top Tube Length | 562 mm | 577 mm | 592 mm | 607 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 406 mm | 445 mm | 490 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1144 mm | 1159 mm | 1175 mm | 1191 mm |
| Bottom Bracket Drop | -20 mm | -20 mm | -20 mm | -20 mm |
| Standover Height | 707 mm | 725 mm | 753 mm | 786 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

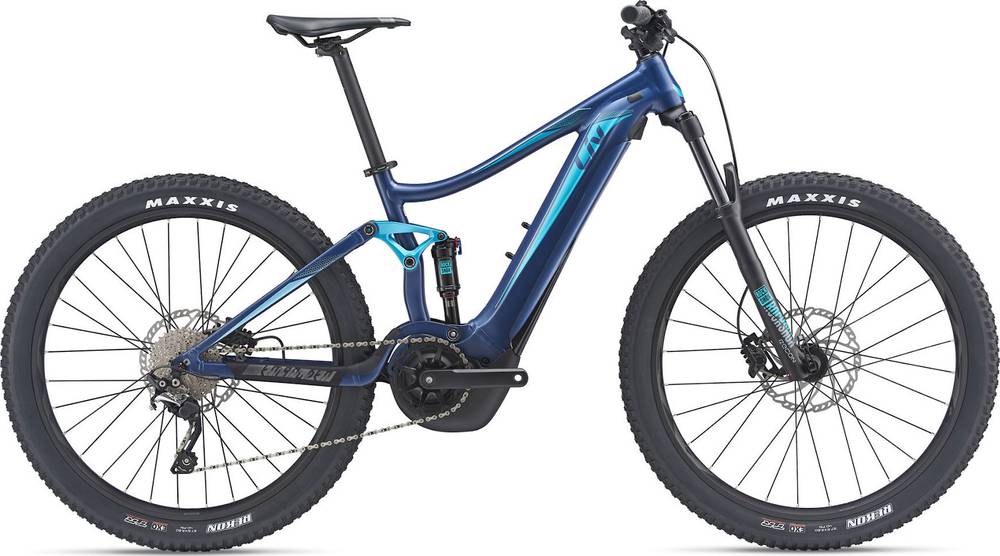

Model Overview
Embolden E+ 1 completes the Liv E Embolden model. 21 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Liv Embolden E+ 2 Power 2019 has a starting price of 3500$. Liv Embolden E+ 2 2019 on the other hand is the most expensive at 3675$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Monarch RT model, with a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Embolden E+ 1 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Liv Embolden E+ 1 e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
