Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 125mm -
Fork Suntour XCR
-
Groupset Deore, FSA -
Suspension Full -
Motor Yamaha 250W 75Nm mid-drive -
Battery EnergyPak Smart 625, EnergyPak Plus 250Wh range extender compatible -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 163cm
SM
155cm - 172cm
MD
164cm - 175cm
LG
170cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset
Suspension Fork
SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle
Rear Shock
SR Suntour Raidon R, 190x45mm, custom tuned
Drivetrain
Rear Derailleur
Shimano Deore LinkGlide, 10-speed
Front Derailleur
MRP HD2 co-moulded chain guide
Shift Levers
Shimano Deore LinkGlide
Cassette
Shimano CS-LG400-10, 11-43T, 10-speed LinkGlide
Crank
FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
Bottom Bracket
n/a
Chain
Shimano, LinkGlide, CN-LG500
Pedals
N/A
Wheels
Front Hub
Giant eTracker Boost, [F] 110x15 [R] 148x12mm
Rear Hub
Giant eTracker Boost, [F] 110x15 [R] 148x12mm
Rims
AM30, 27.5", Tubeless ready, 30mm inner width
Spokes
Stainless Steel
Tires
Maxxis Rekon 27.5x2.4" Foldable, TLR, EXO, 60TPI
Brakes
Brakes
Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano Deore BL-M4100
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect TR Riser 31.8x750mm (XS-S), 780mm (M-L)
Grips
Liv Tactal Pro Single Lock-On Grips
Seat
Saddle
Liv sylvia E
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery

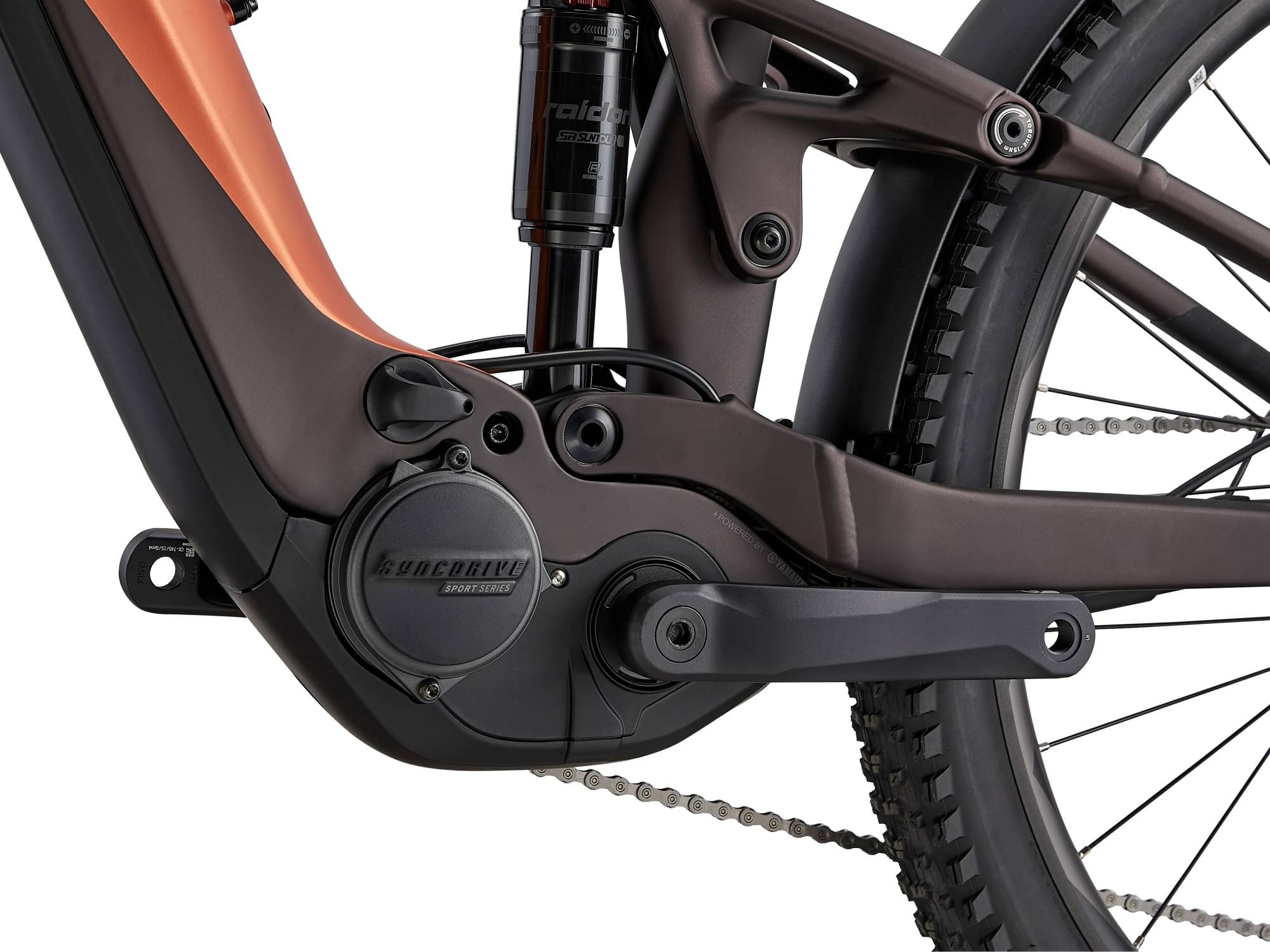

Motor
SyncDrive Sport 2, 75Nm, powered by Yamaha
Battery
EnergyPak Smart 625, EnergyPak Plus 250Wh range extender compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.46 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 335 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 734 mm | 734 mm | 750 mm | 772 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 598 mm | 618 mm | 627 mm | 636 mm |
| Reach | 423 mm | 423 mm | 435 mm | 452 mm |
| Top Tube Length | 562 mm | 572 mm | 592 mm | 612 mm |
| Seat Tube Angle | 77 ° | 76.5 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 395 mm | 425 mm | 455 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1198 mm | 1196 mm | 1212 mm | 1234 mm |
| Bottom Bracket Drop | 20 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 687 mm | 707 mm | 732 mm | 757 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 150 cm | 155 cm | 164 cm | 170 cm |
| Rider Max Height | 163 cm | 172 cm | 175 cm | 181 cm |
About this model
Embolden E+ EX is a Liv E Embolden model. Liv released 21 e-bikes variations of this model so far. Take a sneak peek at all Liv E Embolden e-bikes models from 2023, by clicking here.
Model range prices
Liv Embolden E+ EX 2023 is the cheapest e-bike model and costs 3904$. Liv Embolden E+ 1, Pro 2023 is the most expensive one and costs 5300$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Liv Embolden E+ EX price was 3904$. If we compare this with the average Trail e-bike cost we notice that the price is 16.02% higher.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the SR Suntour Raidon R model, with a travel of 125mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Embolden E+ EX model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Embolden E+ EX comes in 4 sizes, that range from 150 cm – 181 cm (4.92 ft – 5.94 ft). In short, it won’t be difficult to find the right one for you.
