Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite w/ ALUXX SL rear triangle, Advanced Forged composite upper rocker, 160mm Maestro suspension
Suspension Fork
Fox 36 Talas Performance Elite, FIT4 damper, 15mm QR, Boost, OverDrive, 130-160mm travel
Rear Shock
Fox Float X2 Performance Elite, Trunnion mount
Drivetrain
Rear Derailleur
Shimano Deore XT
Front Derailleur
N/A
Shift Levers
Shimano SLX
Cassette
Shimano SLX 11x42, 11-speed
Crank
Shimano Deore XT, 30T w/ MRP AMG V2 Guide(Alloy backplate)
Bottom Bracket
Shimano, Press fit
Chain
KMC X11 EL
Pedals
N/A
Wheels
Front Hub
Giant Performance Tracker Disc, 28h, [F] Boost 110x15mm, [R] Boost 148x12mm
Rear Hub
Giant Performance Tracker Disc, 28h, [F] Boost 110x15mm, [R] Boost 148x12mm
Rims
Giant P-AM2
Spokes
Sapim Race, 14/15g
Tires
[F] Schwalbe Magic Mary, 27.5x2.35, Snakeskin, TL Easy, Trail Star [R] Schwalbe Hans Dampf, 27.5x2.35, Snakeskin, TL Easy, Pace Star
Brakes
Brakes
Shimano SLX, hydraulic disc, [F] 200mm [R] 180mm
Brake Levers
Shimano SLX
Cockpit
Stem
Truvativ Holzfeller
Handlebar
Giant Contact SL DH, 31.8mm
Seat
Saddle
Liv Contact SL Upright, SST tubular rails
Seatpost
Giant Contact SL Switch Trail, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.35 mm | 1.35 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 710 mm | 725 mm | 753 mm | 770 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 575 mm | 579 mm | 593 mm | 607 mm |
| Reach | 403 mm | 417 mm | 438 mm | 449 mm |
| Top Tube Length | 569 mm | 584 mm | 609 mm | 624 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 365 mm | 380 mm | 431 mm | 482 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1144 mm | 1159 mm | 1187 mm | 1204 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Standover Height | 709 mm | 716 mm | 754 mm | 794 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

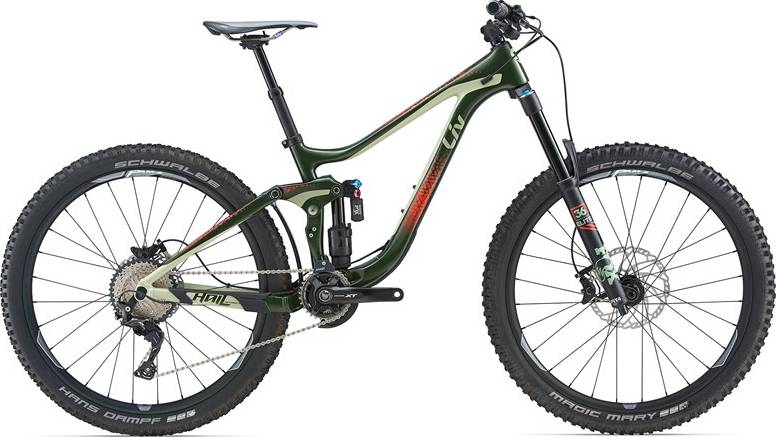

Hail Advanced 1 is a Liv Hail model. There are 12 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Liv Hail 2 2017 is the most economical model, with a starting price of 3250$. Liv Hail Advanced 0 2017 on the other hand costs 8250$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2017 for 5350$. Doing a quick comparison, we notice that Hail Advanced 1 price is 48.65% more expensive than the average cost of an Enduro bike.
Overview of components
Fork
Liv Hail Advanced 1 2017 bike is equipped with the Fox Performance Elite Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Hail Advanced 1 has a rear shock with a travel of 160mm. The model Fox Float X2 Performance Elite is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Hail Advanced 1 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Liv Hail Advanced 1 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Hail Advanced 1 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
