Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork Fox Performance Float 36
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-Grade Aluminium front and rear triangles, 125mm Maestro Suspension, flip chip
Suspension Fork
Fox 36 Float Performance, 140mm, GRIP damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv
Rear Shock
Fox Float DPS Performance, 185/50, custom tuned for Liv
Drivetrain
Rear Derailleur
Shimano SLX M7100
Front Derailleur
N/A
Shift Levers
Shimano SLX M7100, 1x12
Cassette
Shimano SLX M7100, 10x51
Crank
Shimano M511, 30t S:170mm, M:170mm, L:170mm
Bottom Bracket
Shimano, press fit
Chain
KMC X-12
Pedals
Platform
Wheels
Front Hub
[F] alloy 15x110, sealed bearing [R] alloy 12x148, sealed bearing
Rear Hub
[F] alloy 15x110, sealed bearing [R] alloy 12x148, sealed bearing
Rims
Giant AM 29, tubeless ready, sleeve-joint, 30mm inner width
Spokes
Sapim
Tires
[F] Maxxis Minion DHF 29x2.5WT, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, EXO, TR, tubeless
Brakes
Brakes
Shimano BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers
Shimano MT501
Cockpit
Stem
Giant Contact SL, 35mm S:50mm, M:50mm, L:50mm
Handlebar
Giant Contact TR35, alloy, 35mm
Grips
Liv Supera, single lock ring
Seat
Saddle
Liv Sylvia
Seatpost
Giant Contact Switch dropper, remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.494 mm | 1.453 mm | 1.417 mm |
| Bottom Bracket Height | 401.6 mm | 401.6 mm | 401.6 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 425 mm | 435 mm | 460 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 105 mm | 110 mm | 125 mm |
| Bottom Bracket Drop | -27 mm | -27 mm | -27 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

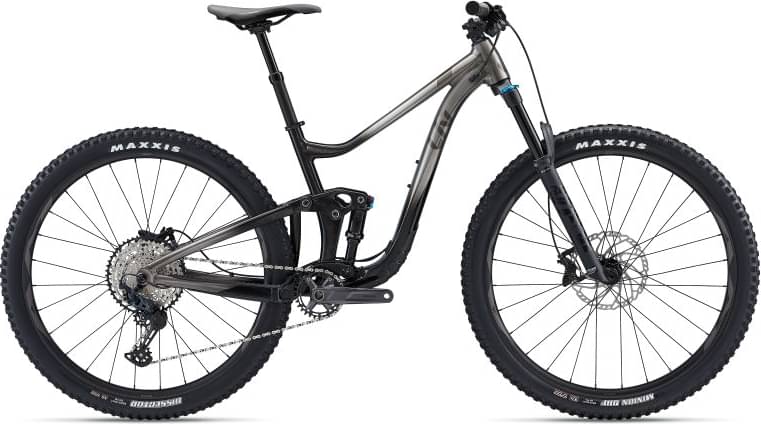

Intrigue 29 1 completes the Liv Intrigue model. 36 bikes variations carry this model name so far. Take a sneak peek at all Liv Intrigue bikes models from 2022, by clicking here.
Model range prices
Liv Intrigue 2022 is the most affordable bike of this model and has a price of 2419$. On the other hand, Liv Intrigue Advanced Pro 29 1 2022, is the most expensive and costs 5731$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Liv released this model in 2022, its price was 3056$. Comparing this to the average Trail bike price, we see that the price is 10.64% higher.
Intrigue 29 1 components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox Float DPS Performance model, with a travel of 125mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Intrigue 29 1 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Intrigue 29 1 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Intrigue 29 1 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Intrigue 29 1. Therefore, climbing or descending will be a breeze.
