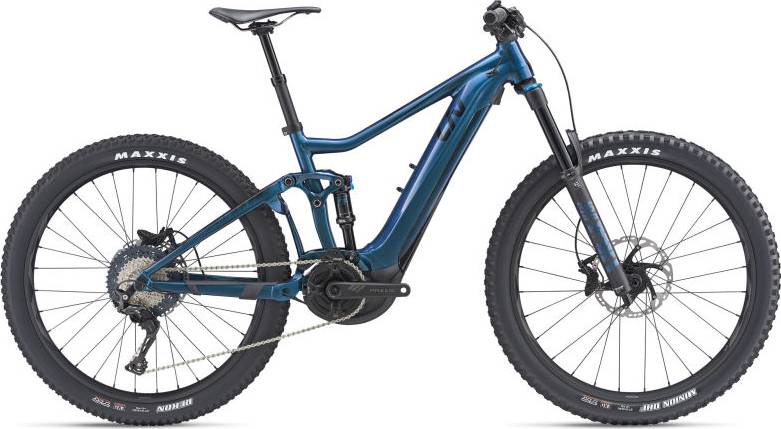

Liv Intrigue E+ 1 Pro 2019
2019 E-bike
Estimate price |
4,830$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor Yamaha mid-drive -
Battery Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system
Suspension Fork
Fox 36 Float Rhythm 27.5+ 150mm, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-Bike optimized
Rear Shock
Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
Shimano Deore XT, 11-Speed, Shadow+
Front Derailleur
MRP 1X CS custom
Shift Levers
Shimano SLX
Cassette
Shimano HG-M7000, 11-46T, 11-Speed
Crank
Praxis 36T Cold Forged 4130 premium steel Wave Praxis e-Cadet+ custom forged crankarm set
Bottom Bracket
N/A
Chain
KMC e.11 Turbo, EcoProteq, e-bike optimized
Chain Guide
MRP 1X CS custom
Pedals
-
Wheels
Front Hub
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized
Rear Hub
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized
Rims
Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized
Spokes
Sapim E-Lite [r] Race [f], e-bike optimized
Tires
Maxxis Minion DHF 27.5x2.6" Foldable, Tubeless, EXO, Dual compound [F] Maxxis Rekon 27.5x2.6" Foldable, Tubeless, EXO, Dual Compound [R]
Brakes
Brakes
Shimano BR-MT520, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano BL-MT520, i-spec II
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact SL 35 Trail
Headset
OverDrive, integrated
Seat
Saddle
Liv Contact, Upright
Seatpost
Giant Contact Switch, dropper, 30,9mm, under bar remote lever
Motor & Battery
Motor
Giant SyncDrive Pro, 360% tuneable support, powered by YAMAHA
Battery
Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion
Remote
Giant RideControl One, remote button
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm | 1.37 mm | 1.35 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 699 mm | 715 mm | 731 mm | 759 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 576 mm | 581 mm | 585 mm | 604 mm |
| Reach | 401 mm | 415 mm | 428 mm | 448 mm |
| Top Tube Length | 562 mm | 577 mm | 592 mm | 617 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 406 mm | 445 mm | 482 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 125 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1166 mm | 1182 mm | 1198 mm | 1226 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 704 mm | 722 mm | 750 mm | 778 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Intrigue E+ 1 Pro is a Liv E Intrigue model. 24 e-bikes variations carry this model name so far. Take a sneak peek at all Liv E Intrigue e-bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Liv Intrigue E+ 1 Pro 2019 has a starting price of 4600$. Liv Intrigue E+ 1 Pro 2019 on the other hand is the most expensive at 4830$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Liv released this model in 2019, its price was 4830$. Doing a quick comparison, we notice that Intrigue E+ 1 Pro price is 43.54% higher than the average cost of a Trail e-bike.
Overview of components
Fork
The Intrigue E+ 1 Pro comes factory-installed with the Fox Rhythm Float 36 fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float DPS Performance rear shock model, which has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Liv Intrigue E+ 1 Pro 2019, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
