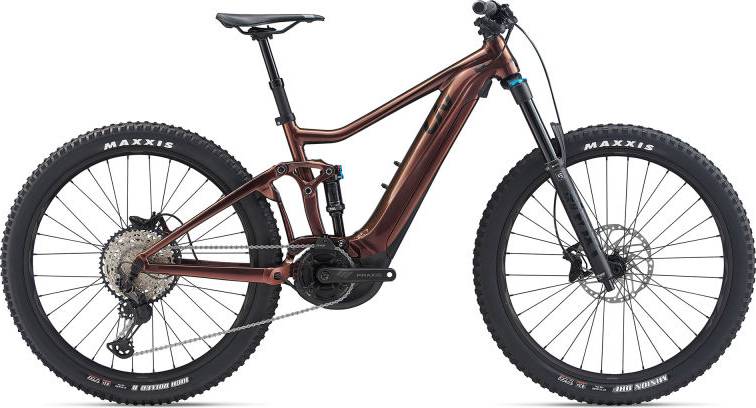

Liv Intrigue E+ 1 Pro 2020
2020 E-bike
Estimate price |
5,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor Yamaha 80Nm mid-drive -
Battery Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system
Suspension Fork
Fox 36 Float Rhythm 27.5+ 150mm, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-Bike optimized
Rear Shock
Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-Speed, Shadow+
Front Derailleur
MRP 1X CS custom
Shift Levers
Shimano SLX 12-speed
Cassette
Shimano HG-M7100, 10-51T, 12-Speed
Crank
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, XS/S:160, M/L:165)
Bottom Bracket
N/A
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized
Pedals
-
Wheels
Front Hub
Shimano Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spling Drive Body Thru-axle
Rear Hub
Shimano Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spling Drive Body Thru-axle
Rims
Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized
Spokes
Sapim E-Lite [r] Race [f], e-bike optimized
Tires
Maxxis Minion DHF 27.5x2.6" Foldable, Tubeless, EXO, Dual compound [F] Maxxis HighRollerII 27.5x2.6" Foldable, Tubeless, EXO, Dual Compound [R]
Brakes
Brakes
Shimano BR-MT520, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano BL-MT501
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact SL 35 Trail
Seat
Saddle
Liv Contact, Upright
Seatpost
Giant Contact Switch, dropper, 30,9mm, (XS:75, S:100, M:125, L:150)
Motor & Battery
Motor
Giant SyncDrive Pro, 80Nm, 360% tuneable support, powered by YAMAHA. Pedal assist up to 20 mph.
Battery
Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion
Remote
Giant RideControl One, remote button
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm | 1.37 mm | 1.35 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 699 mm | 715 mm | 731 mm | 759 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 576 mm | 581 mm | 585 mm | 604 mm |
| Reach | 401 mm | 415 mm | 428 mm | 448 mm |
| Top Tube Length | 562 mm | 577 mm | 592 mm | 617 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 406 mm | 445 mm | 482 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 125 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1166 mm | 1182 mm | 1198 mm | 1226 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 704 mm | 722 mm | 750 mm | 778 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Intrigue E+ 1 Pro completes the Liv E Intrigue model. 24 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Liv Intrigue E+ 2 Pro Electric Bike 2020 is the cheapest e-bike model and costs 4378$. Liv Intrigue E+ 1 Pro 2020 is the most expensive one and costs 5000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5000$. If we compare this with the average Trail e-bike cost we notice that the price is 48.59% more expensive.
Overview of components
Fork
The Intrigue E+ 1 Pro comes factory-installed with the Fox Rhythm Float 36 fork. This has a travel range of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox Float DPS Performance rear shock model, which has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Intrigue E+ 1 Pro model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Intrigue E+ 1 Pro has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Intrigue E+ 1 Pro comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
Dropper post
The Liv model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
