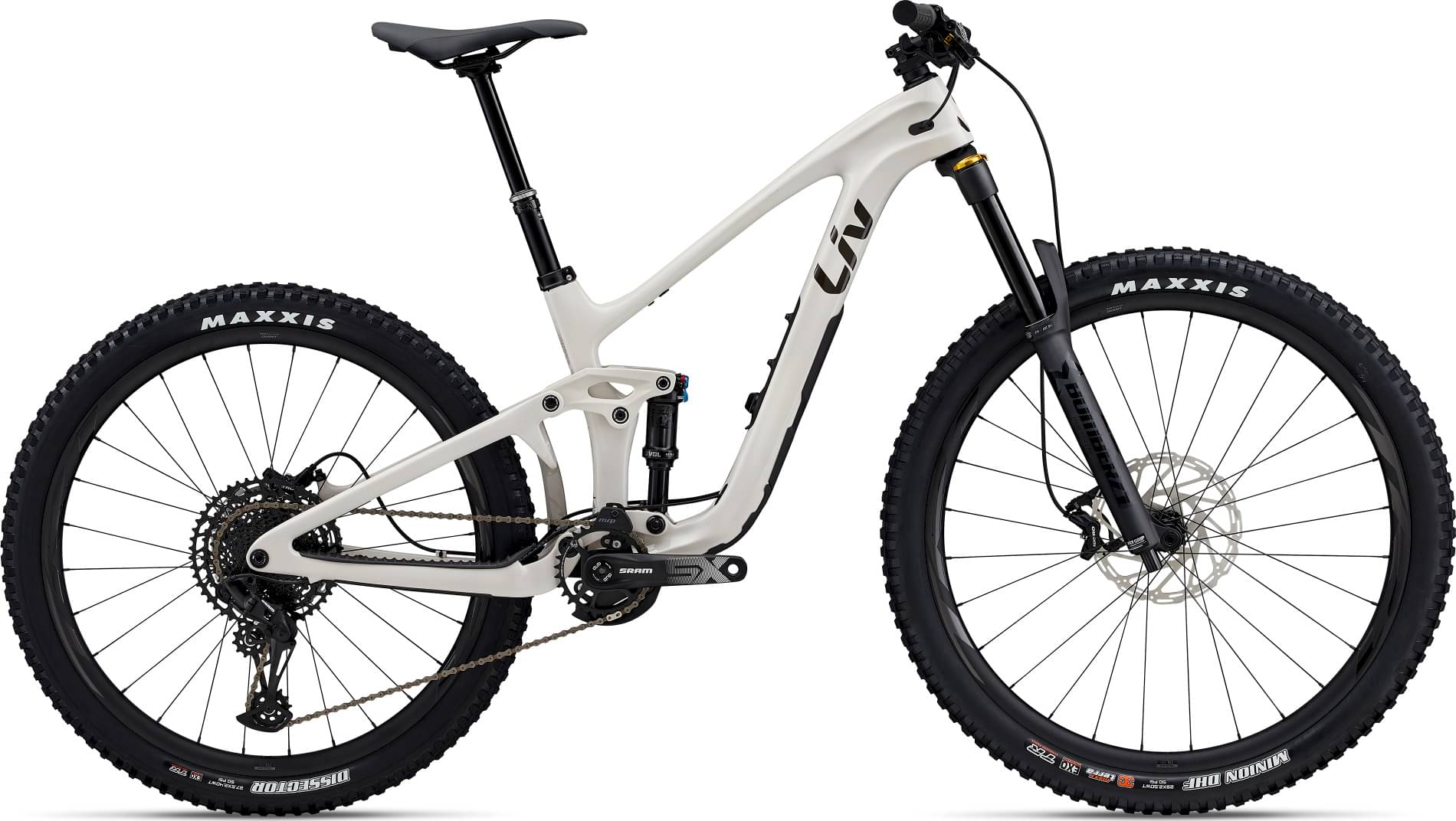

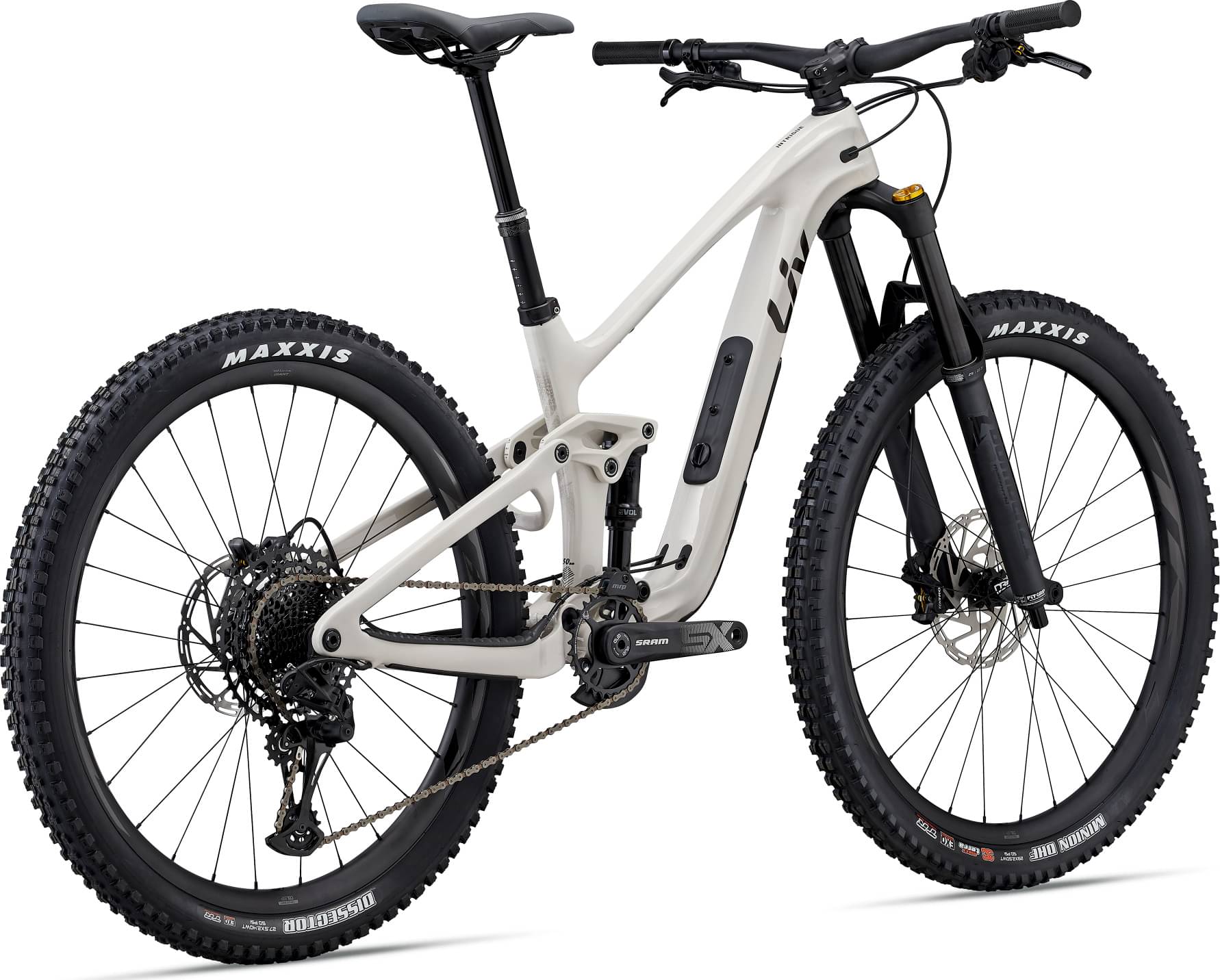

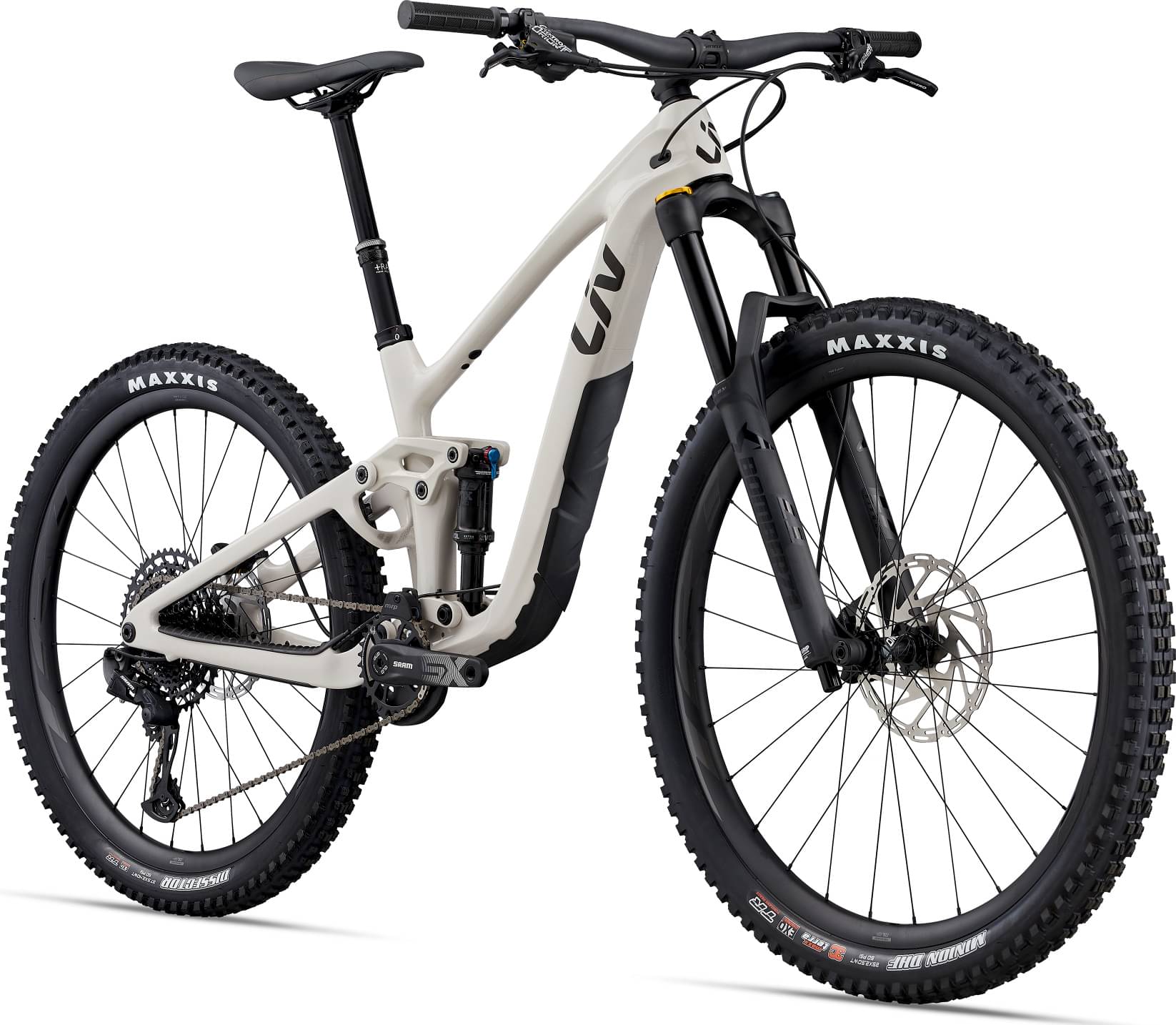

Liv Intrigue LT, Advanced Pro 2 2023
2023 Mountain
Estimate price |
3,574$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Marzocchi Bomber Z1
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
150cm - 163cm
XS Low
150cm - 163cm
XS Mid
150cm - 163cm
SM High
158cm - 169cm
SM Mid
158cm - 169cm
SM Low
158cm - 169cm
MD High
164cm - 175cm
MD Mid
164cm - 175cm
MD Low
164cm - 175cm
LG High
170cm - 181cm
LG Mid
170cm - 181cm
LG Low
170cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

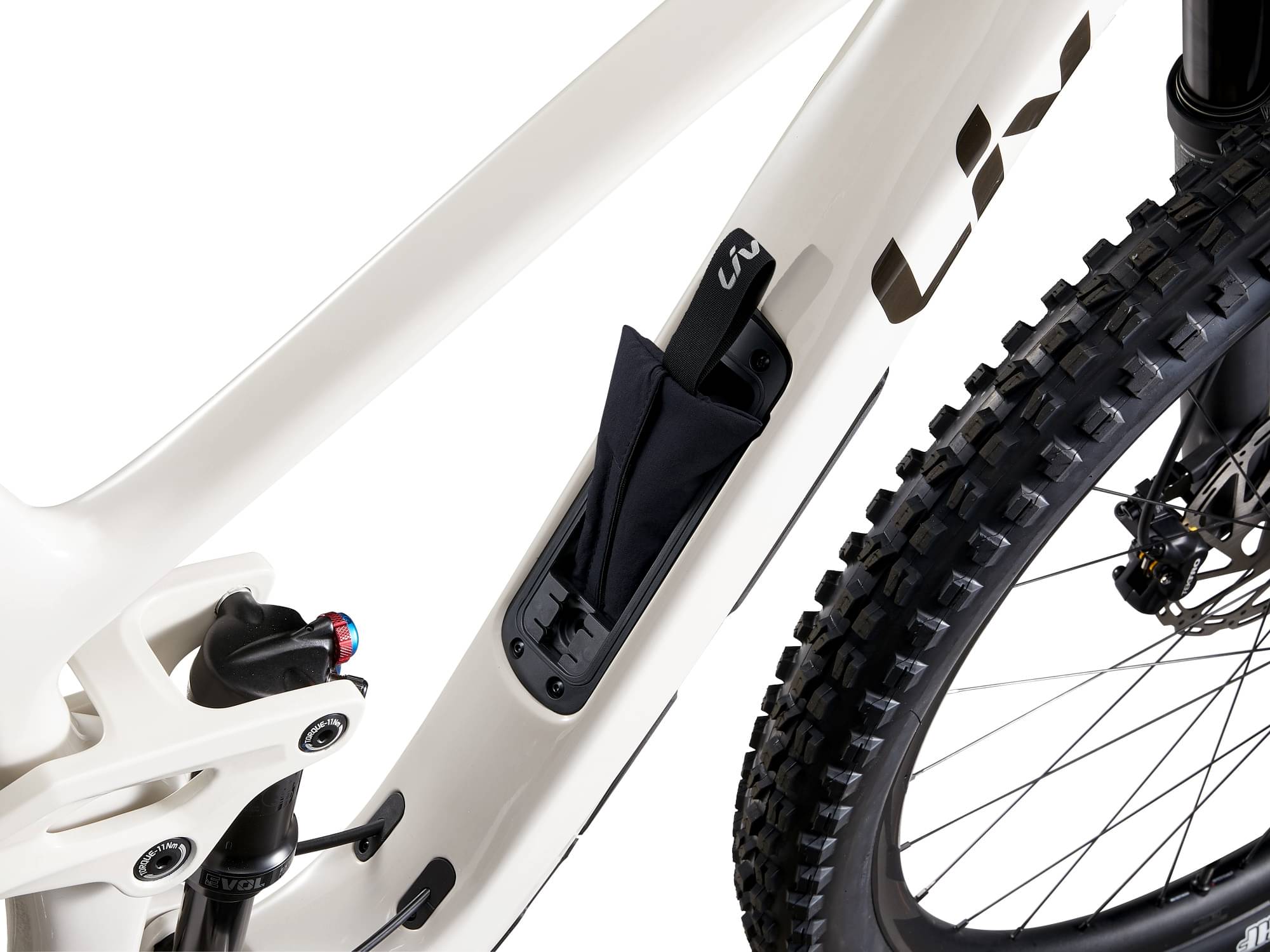

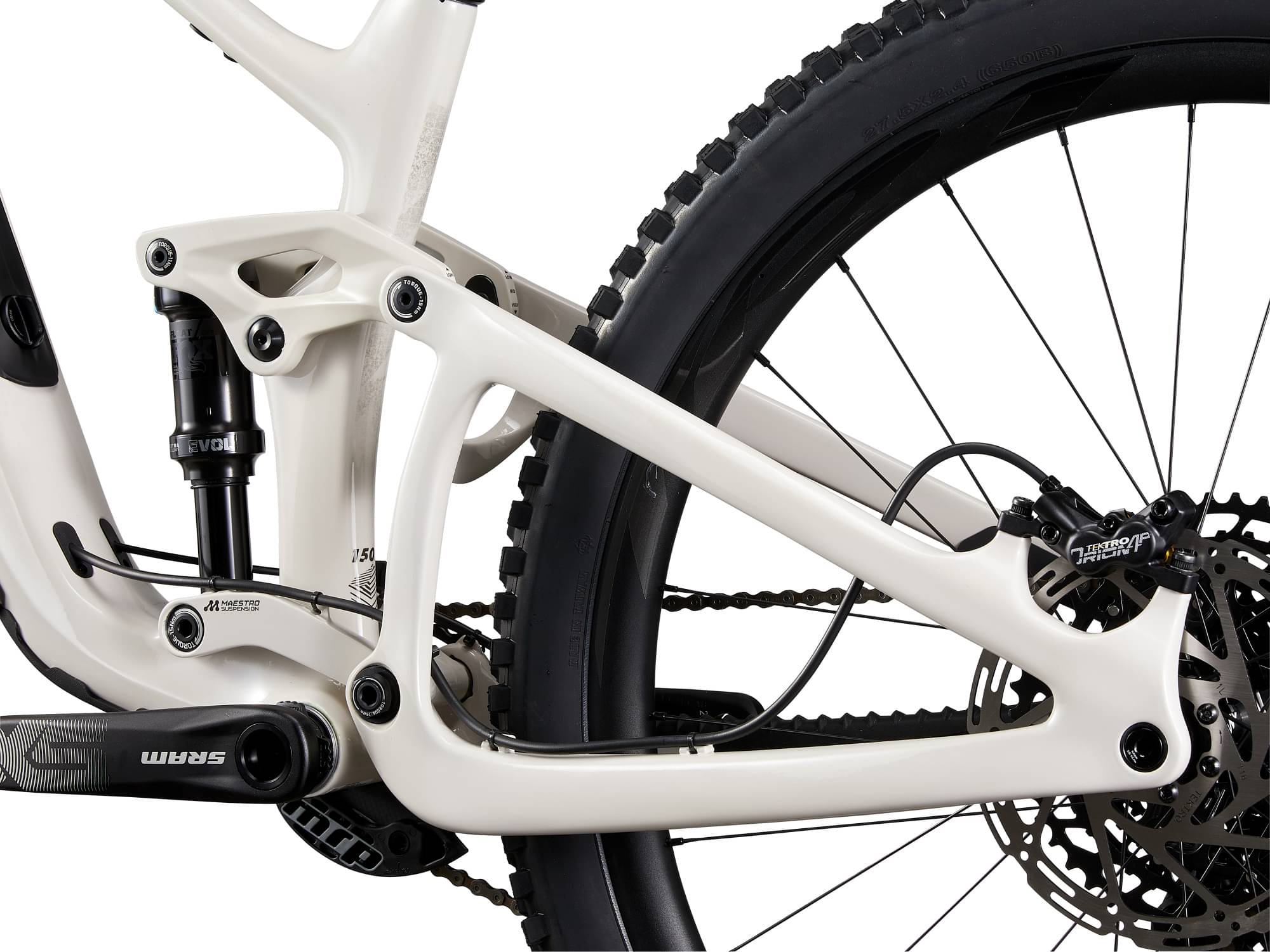

Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip – Maestro 3, integrated down tube storage
Suspension Fork
Marzocchi Bomber Z1, 160mm, Rail damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv
Rear Shock
Fox Float DPS Performance 185x55, custom tuned for Liv

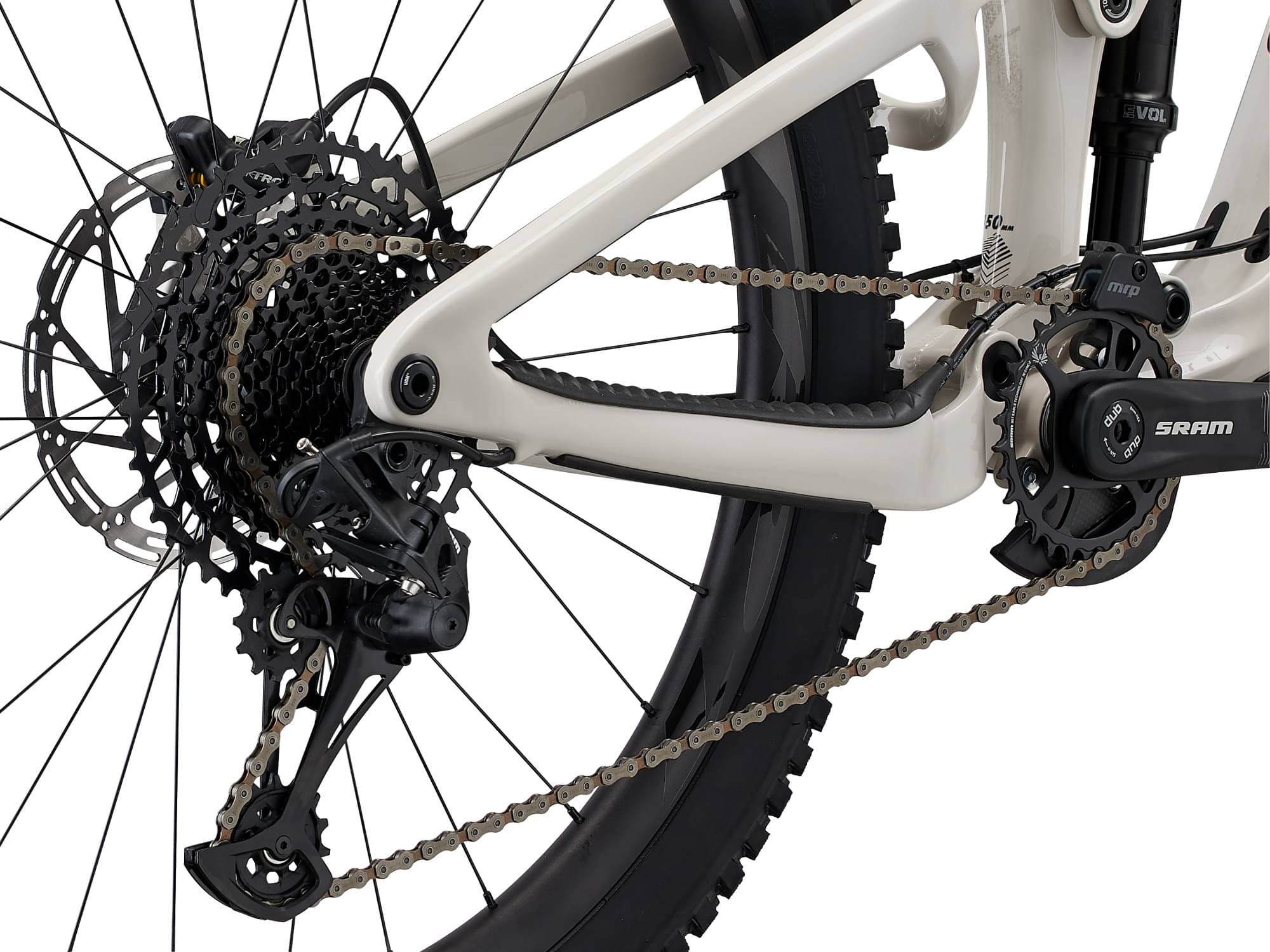

Drivetrain
Rear Derailleur
SRAM SX Eagle
Front Derailleur
N/A
Shift Levers
SRAM SX Eagle, 1x12
Cassette
SRAM SX Eagle, 11x50
Crank
SRAM SX, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM SX Eagle
Pedals
N/A
Wheels
Front Hub
alloy, sealed bearing
Rear Hub
alloy, sealed bearing
Rims
Giant TR 1 29 WheelSystem
Spokes
Sapim
Tires
[Size XS, S, M and L, F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [Size XS and S, R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless [Size M and L, R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Brakes
Brakes
Tektro M745, hydraulic, Tektro rotors [F]203mm, [R]180mm
Brake Levers
Tektro HDM-745

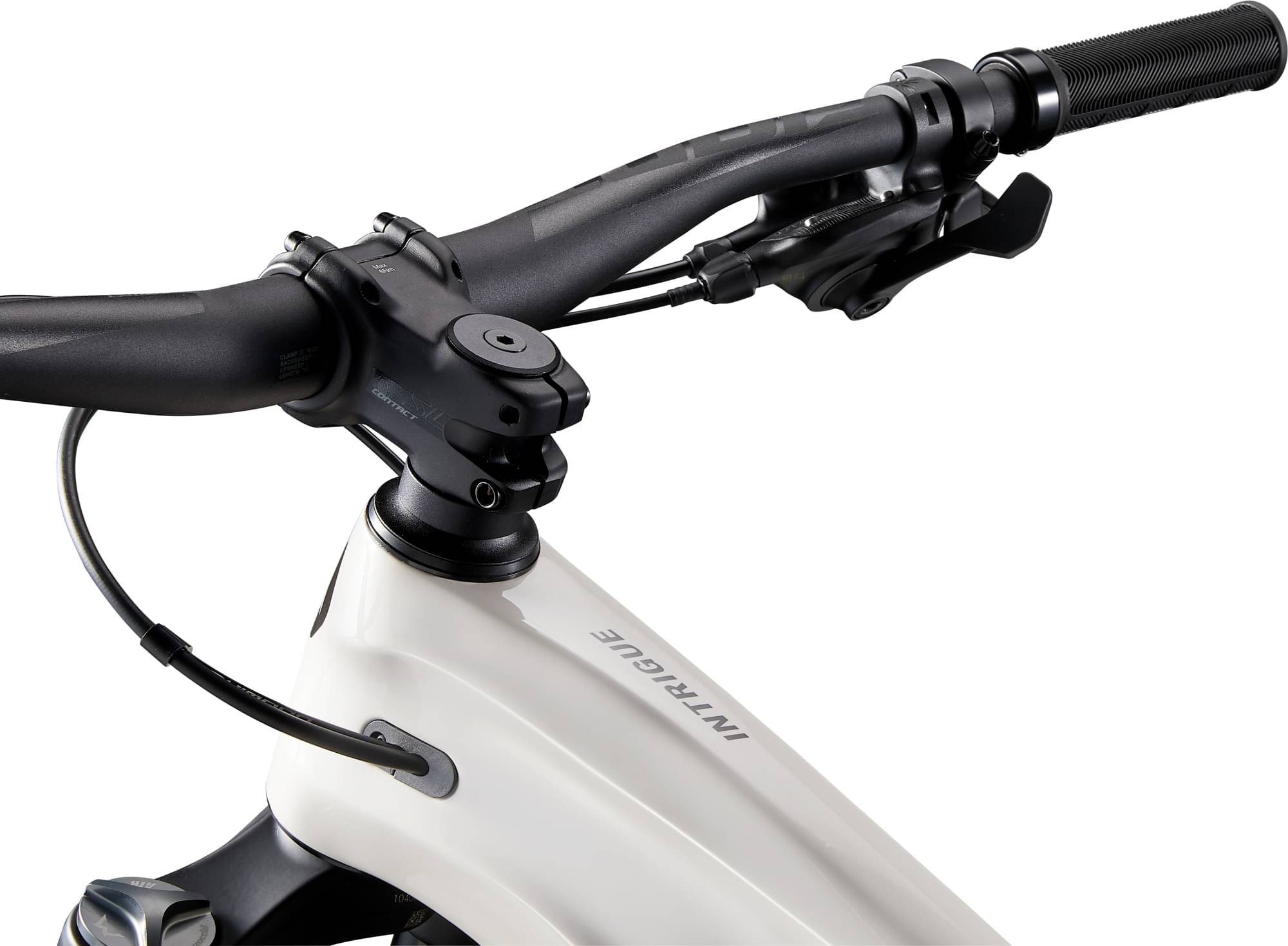

Cockpit
Stem
Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm
Handlebar
Giant Contact SL TR35, 35mm XS: 760mm, S:760mm, M:760mm, L:780mm
Grips
Liv Tactal single lock-on XS/S: 120mm, M/L: 130mm
Seat
Saddle
Liv Sylvia
Seatpost
TranzX travel-adjustable dropper, remote XS: 120-150mm travel / 30.9 x 459mm S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 140-170mm travel / 30.9 x 499mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | XS Mid | SM High | SM Mid | SM Low | MD High | MD Mid | MD Low | LG High | LG Mid | LG Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.57 mm | 1.55 mm | 1.48 mm | 1.5 mm | 1.52 mm | 1.39 mm | 1.41 mm | 1.43 mm | 1.35 mm | 1.37 mm | 1.38 mm |
| Bottom Bracket Height | 340 mm | 330 mm | 335 mm | 340 mm | 335 mm | 331 mm | 349 mm | 344 mm | 339 mm | 349 mm | 344 mm | 339 mm |
| Front Center | 724 mm | 724 mm | 725 mm | 739 mm | 739 mm | 741 mm | 768 mm | 767 mm | 767 mm | 792 mm | 791 mm | 791 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 124.8 mm | 131 mm | 127.9 mm | 124.8 mm | 127.8 mm | 131.6 mm | 124.8 mm | 127.7 mm | 130.6 mm | 124.8 mm | 127.7 mm | 130.5 mm |
| Stack | 628 mm | 633 mm | 631 mm | 628 mm | 631 mm | 632 mm | 626 mm | 629 mm | 632 mm | 635 mm | 638 mm | 641 mm |
| Reach | 410 mm | 402 mm | 406 mm | 425 mm | 421 mm | 417 mm | 451 mm | 446 mm | 443 mm | 471 mm | 466 mm | 463 mm |
| Top Tube Length | 554 mm | 556 mm | 556 mm | 569 mm | 570 mm | 571 mm | 583 mm | 584 mm | 585 mm | 605 mm | 606 mm | 607 mm |
| Seat Tube Angle | 77 ° | 76.2 ° | 76.6 ° | 77 ° | 76.6 ° | 76.2 ° | 78 ° | 77.6 ° | 77.3 ° | 78 ° | 77.6 ° | 77.3 ° |
| Seat Tube Length | 370 mm | 370 mm | 370 mm | 390 mm | 390 mm | 390 mm | 420 mm | 420 mm | 420 mm | 450 mm | 450 mm | 450 mm |
| Head Tube Angle | 65.5 ° | 64.7 ° | 65.1 ° | 65.5 ° | 65.1 ° | 64.6 ° | 65.5 ° | 65.1 ° | 64.8 ° | 65.5 ° | 65.1 ° | 64.8 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 95 mm | 95 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 444 mm | 447 mm | 446 mm | 444 mm | 446 mm | 447 mm | 444 mm | 446 mm | 447 mm | 444 mm | 446 mm | 447 mm |
| Wheelbase | 1168 mm | 1170 mm | 1170 mm | 1183 mm | 1184 mm | 1187 mm | 1211 mm | 1211 mm | 1212 mm | 1235 mm | 1235 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 25 mm | 20 mm | 15 mm | 20 mm | 24 mm | 25 mm | 30 mm | 35 mm | 25 mm | 30 mm | 35 mm |
| Standover Height | 617 mm | 617 mm | 617 mm | 678 mm | 678 mm | 678 mm | 716 mm | 716 mm | 716 mm | 754 mm | 754 mm | 754 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 150 cm | 150 cm | 158 cm | 158 cm | 158 cm | 164 cm | 164 cm | 164 cm | 170 cm | 170 cm | 170 cm |
| Rider Max Height | 163 cm | 163 cm | 163 cm | 169 cm | 169 cm | 169 cm | 175 cm | 175 cm | 175 cm | 181 cm | 181 cm | 181 cm |
Model Overview
Intrigue LT, Advanced Pro 2 completes the Liv Intrigue model. 36 bikes variations carry this model name so far. Take a sneak peek at all Liv Intrigue bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Liv Intrigue 29 2 2023 has a starting price of 2603$. Liv Intrigue LT, Advanced Pro 0 2023 on the other hand is the most expensive at 12500$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Liv Intrigue LT, Advanced Pro 2 price was 3615$. Doing a quick comparison, we notice that Intrigue LT, Advanced Pro 2 price is 0.44% higher than the average cost of an Enduro bike.
Overview of components

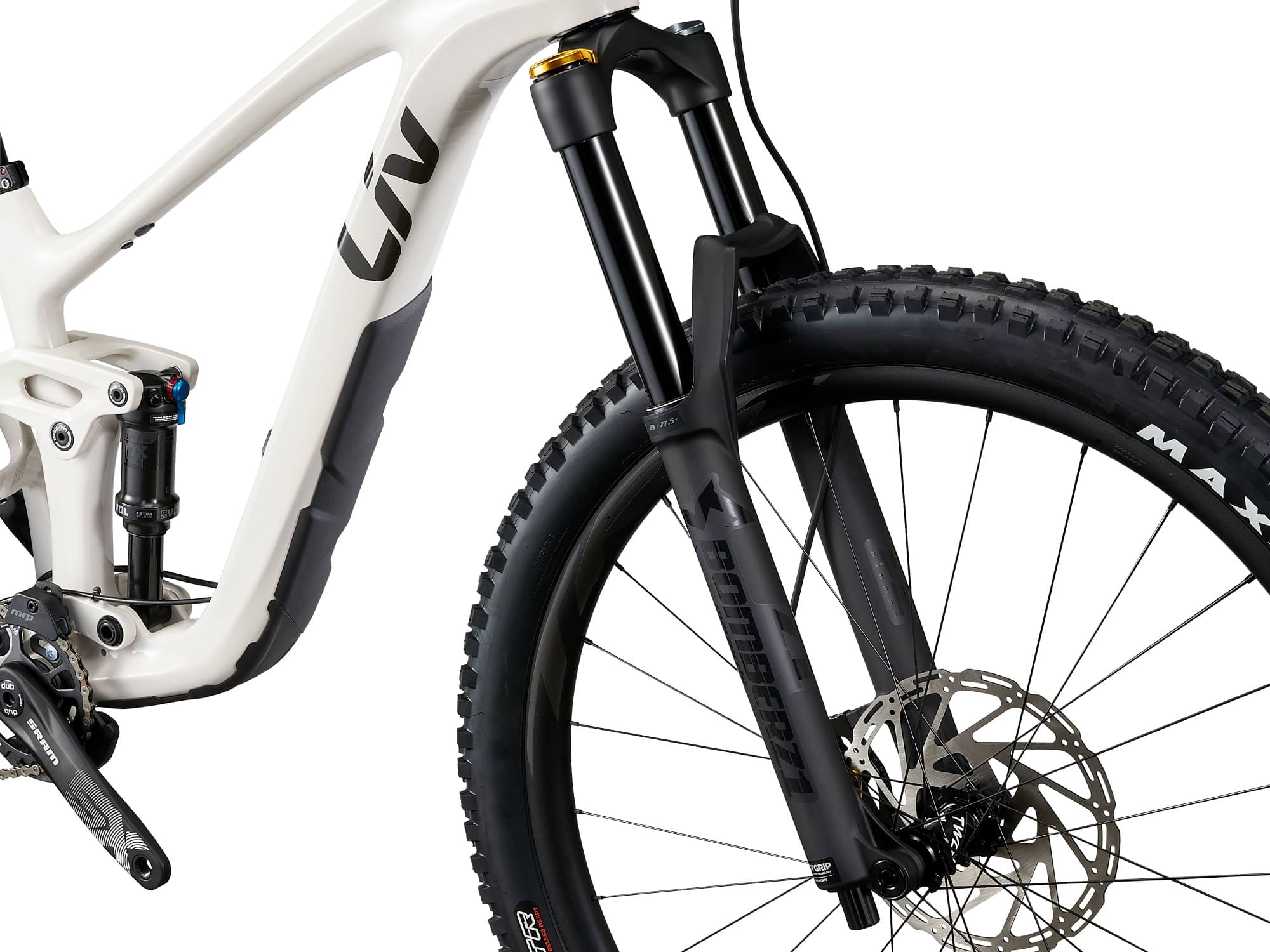

Fork
The Marzocchi Bomber Z1 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

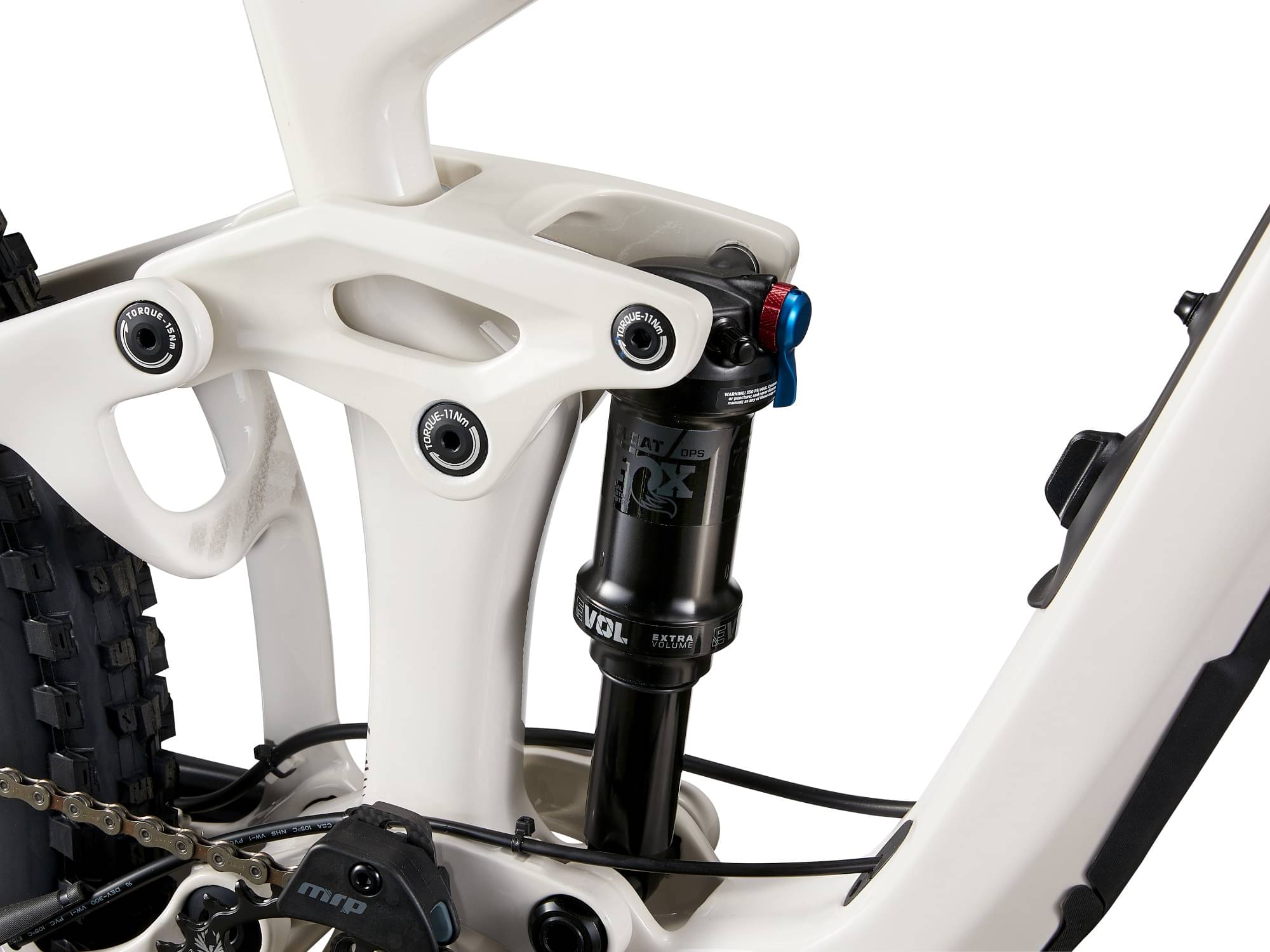

Rear Shock
The Intrigue LT, Advanced Pro 2 has a rear shock with a travel of 150mm. The model Fox Float DPS Performance 185×55 is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Intrigue LT, Advanced Pro 2 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Liv Intrigue LT, Advanced Pro 2 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Intrigue LT, Advanced Pro 2 comes in 12 sizes, that range from 150 cm – 181 cm (4.92 ft – 5.94 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Intrigue LT, Advanced Pro 2. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
