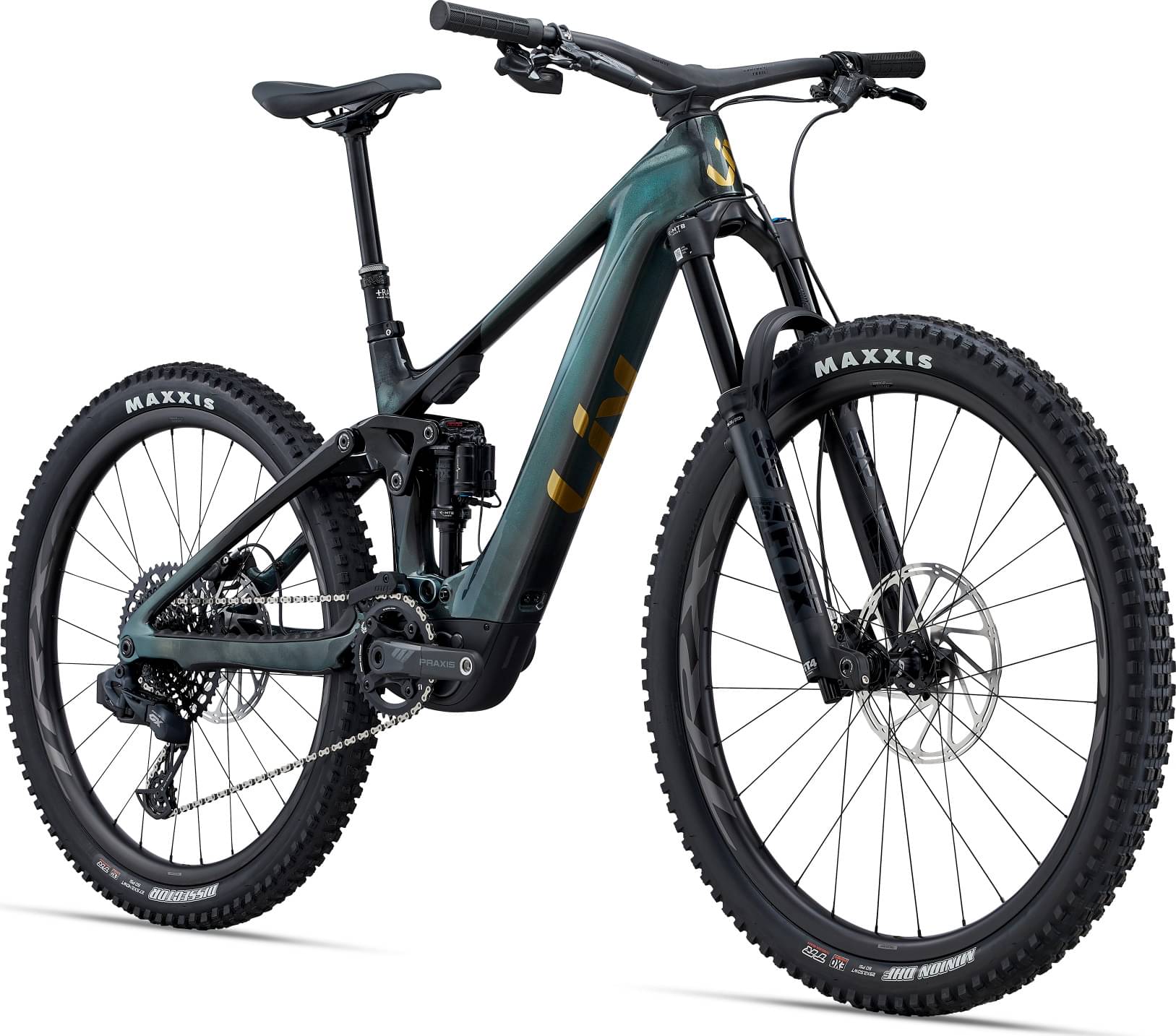

Liv Intrigue X Advanced E+, EL 1 2023
2023 E-bike
Estimate price |
10,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle AXS, X01 Eagle AXS -
Suspension Full, Electronic -
Motor Yamaha 250W 85Nm mid-drive -
Battery EnergyPak Smart Compact 400, EnergyPak Plus range extender compatible -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
152cm - 163cm
XS Low
152cm - 163cm
SM High
158cm - 169cm
SM Low
158cm - 169cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
LG High
170cm - 181cm
LG Low
170cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components

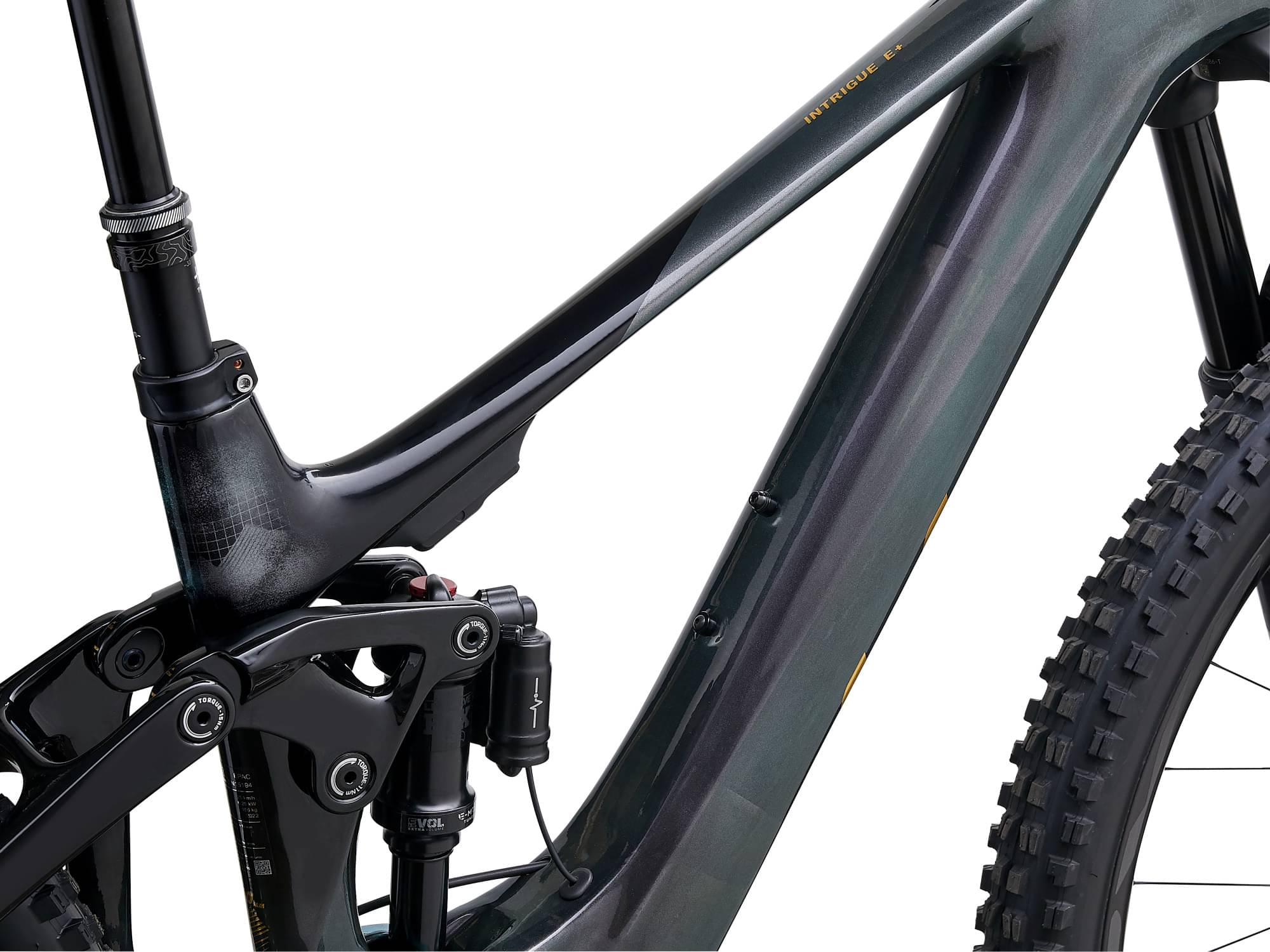

Frame

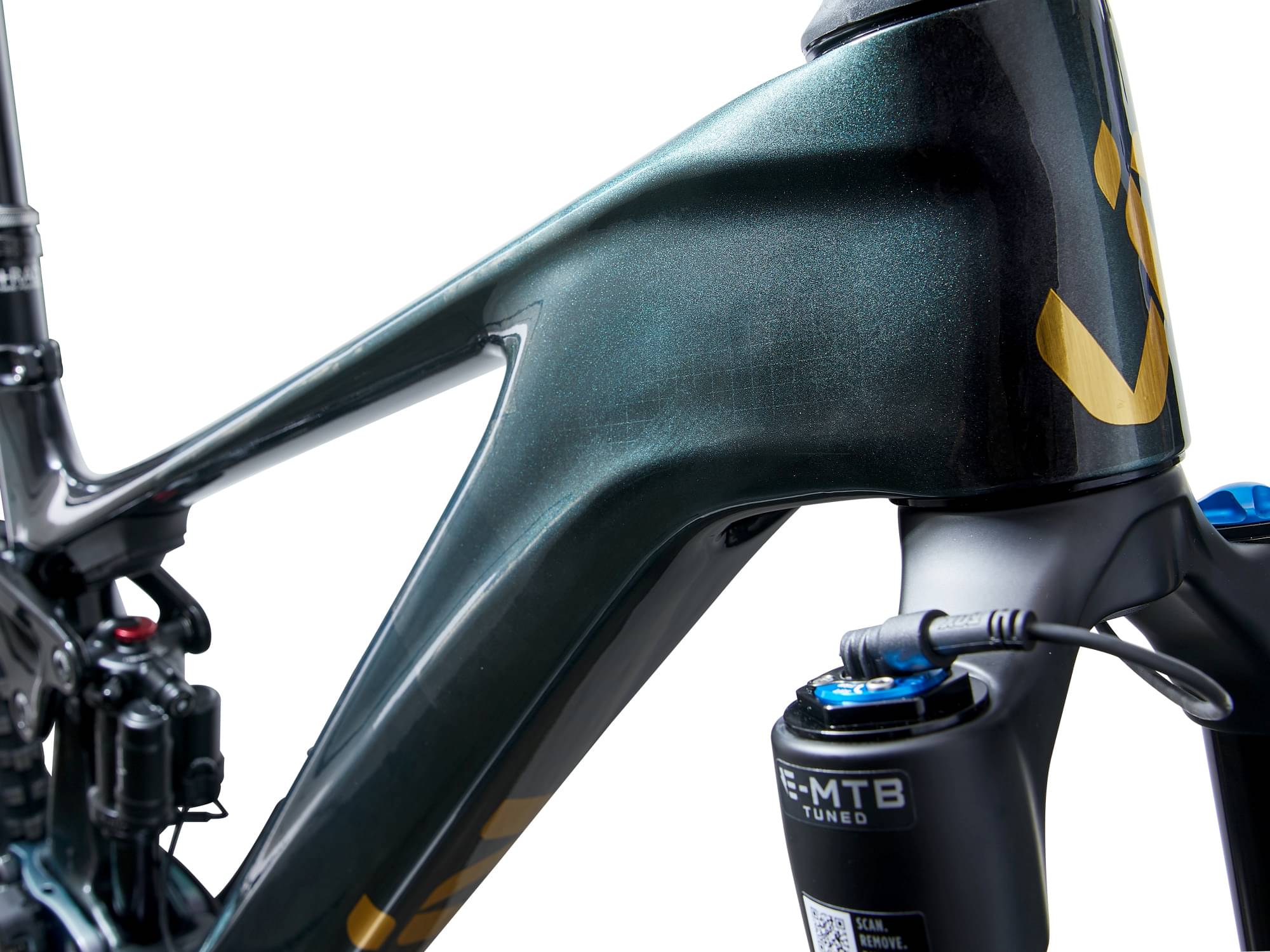

Frame
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension systemMX (front 29", rear 27.5")
Suspension Fork
Fox 36 Performance Elite Live Valve E-Tuned 29er, 150mm travel, 44mm offset, Fit4 damper, Kabolt-X 110, electronic adaptive suspension, e-bike integrated

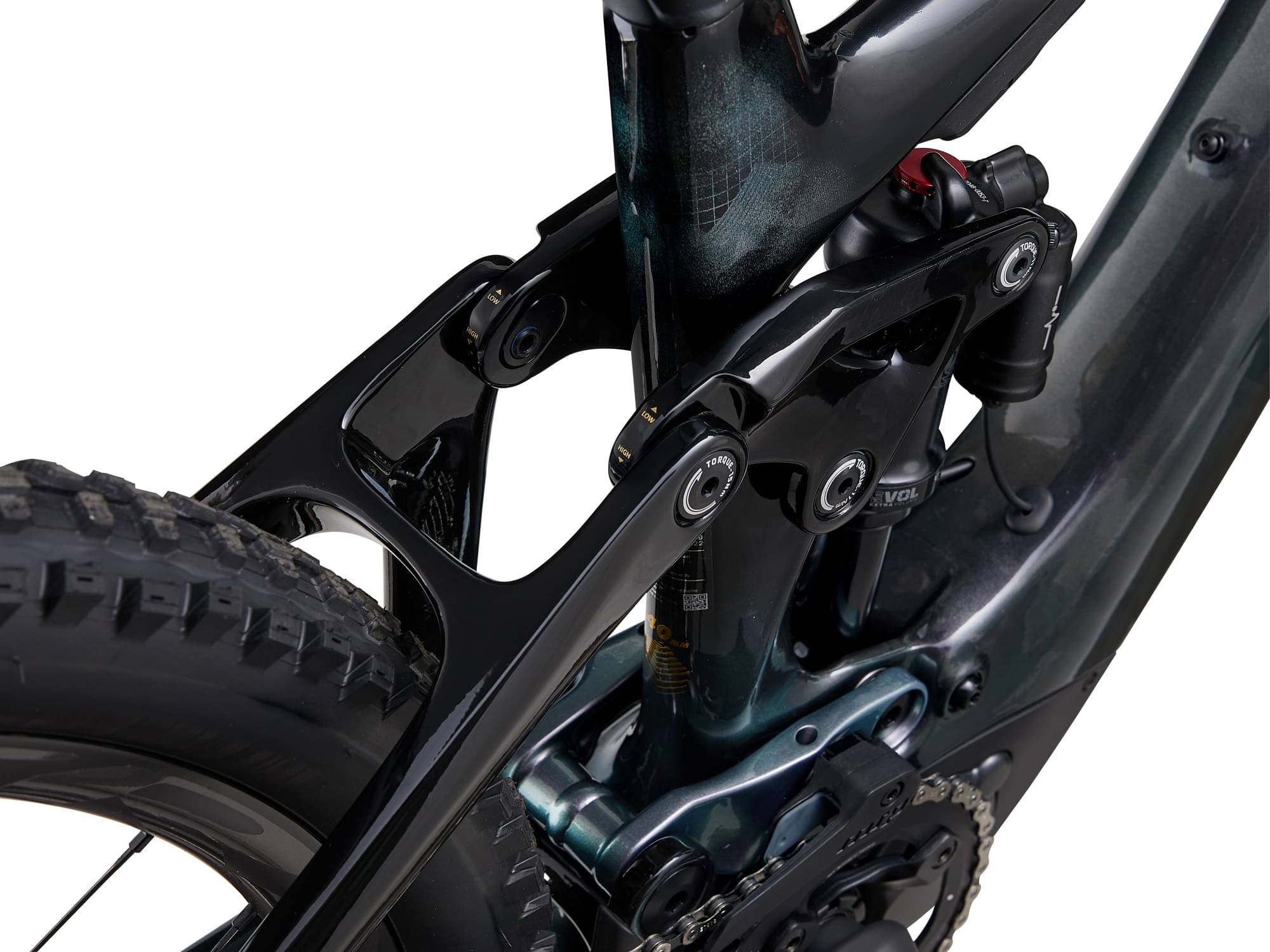

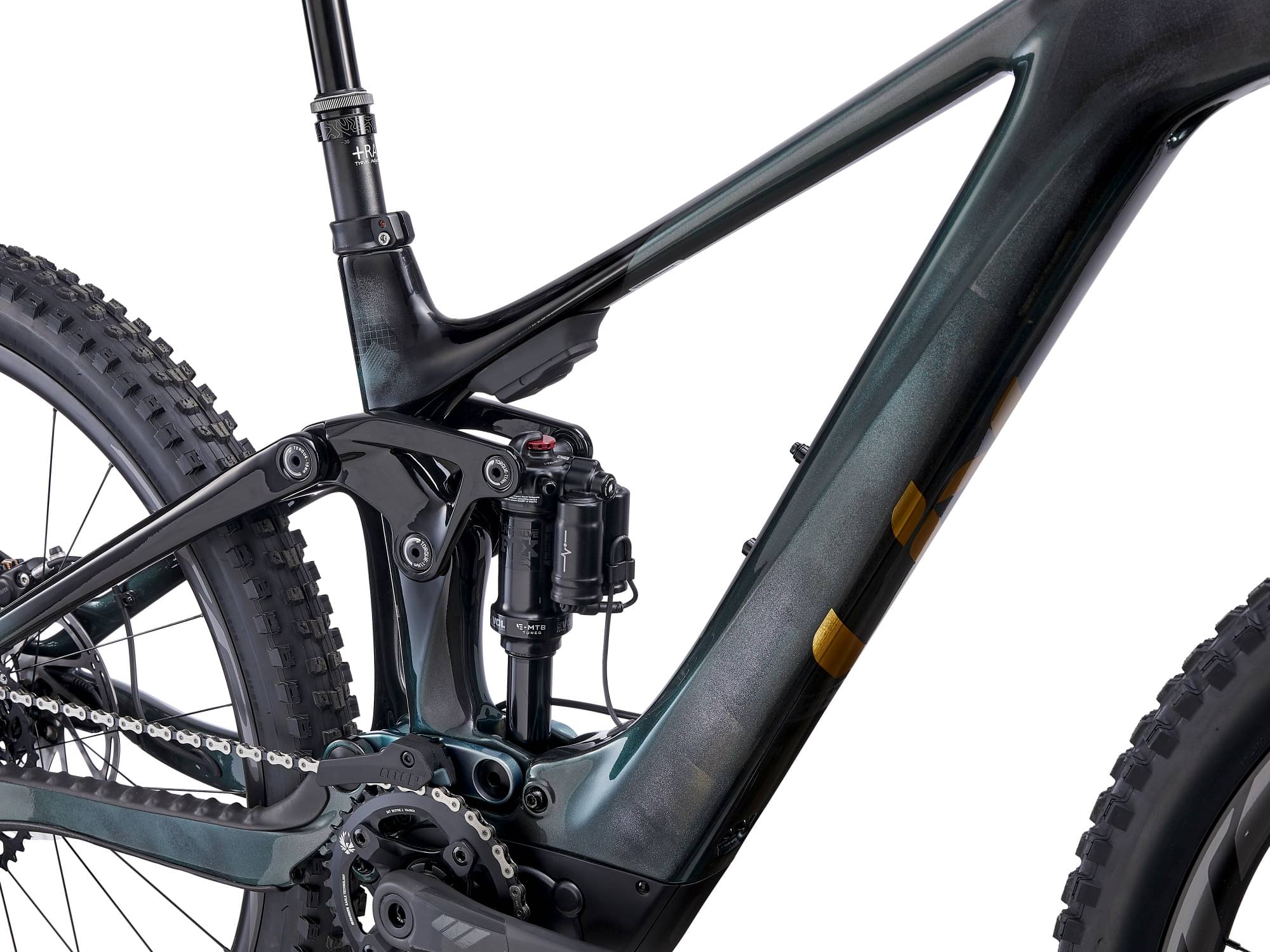

Rear Shock
Fox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS
Front Derailleur
MRP 1X HD2 custom co-molded chain guide
Shift Levers
SRAM AXS Rocker Paddle, wireless electronic shifting
Cassette
SRAM XG-1275, 10-52T, 12-speed
Crank
Praxis Performance Carbon e-crank arms(XS:160, S/M:165, L:170) SRAM X-SYNC Eagle 36T chain ring
Bottom Bracket
n/a
Chain
SRAM GX Eagle PowerLock
Pedals
n/a
Wheels
Front Hub
TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15 [F] / 148 x 12 [R] Thru-axle
Rear Hub
TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15 [F] / 148 x 12 [R] Thru-axle
Rims
TRX 2 Hookless Clincher, 29" [F] / 27.5" [R], 30mm inner width
Tires
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Brakes
Brakes
SRAM Code R, hydraulic disc, 220mm[F] /200mm[R]
Brake Levers
SRAM Code R
Cockpit

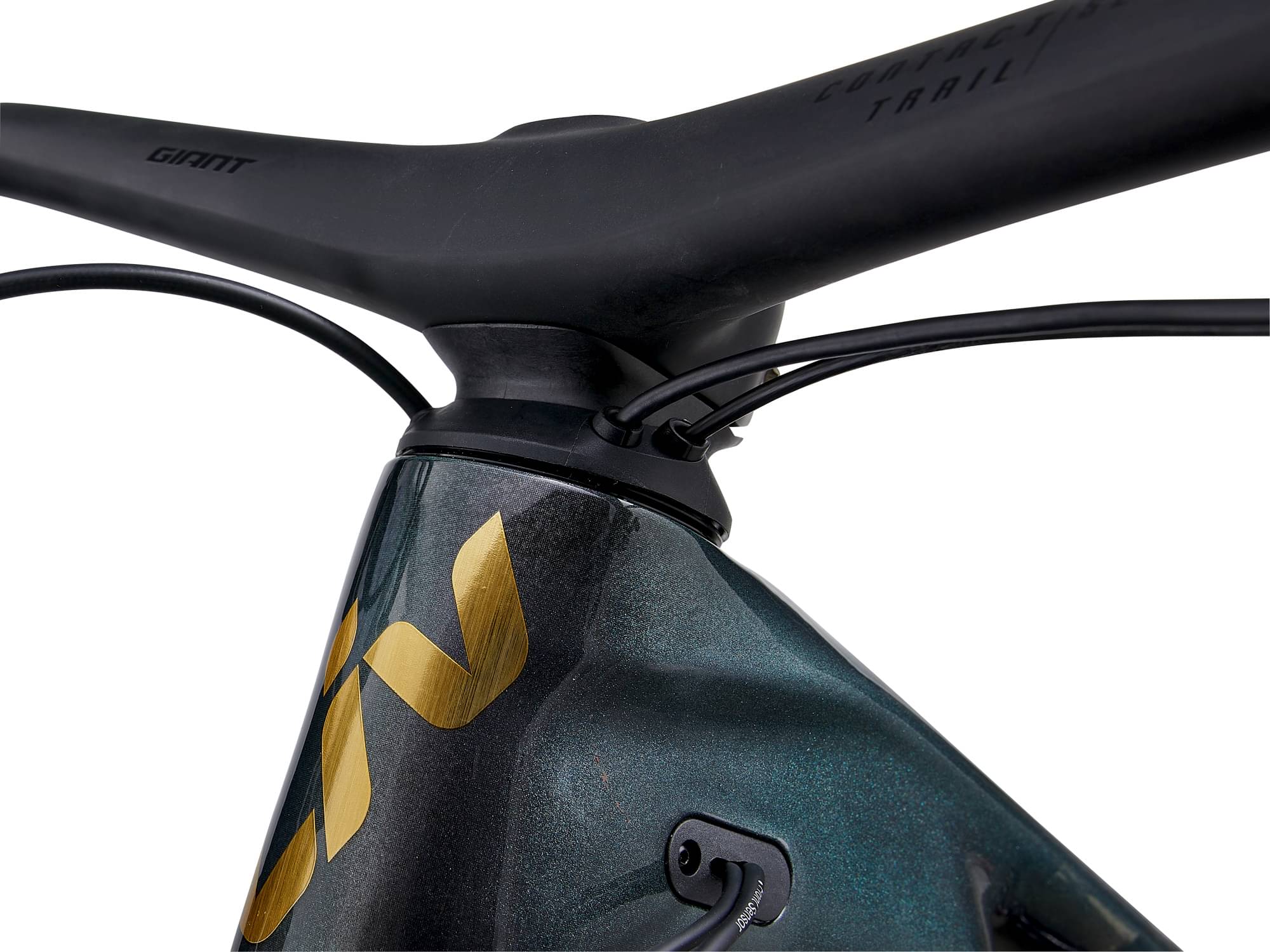

Stem
Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
Handlebar
Giant Contact SLR Trail, carbon, 760mm (XS-S), 800mm (M-L)
Grips
Liv Tactal Pro-E Single Lock-On Grips
Seat
Saddle
Liv Sylvia E+
Seatpost
Rad+ travel adjust dropper, dropper, 30,9mm (XS&S:100~140mm/ M:140~170mm/ L:170~200mm)
Motor & Battery

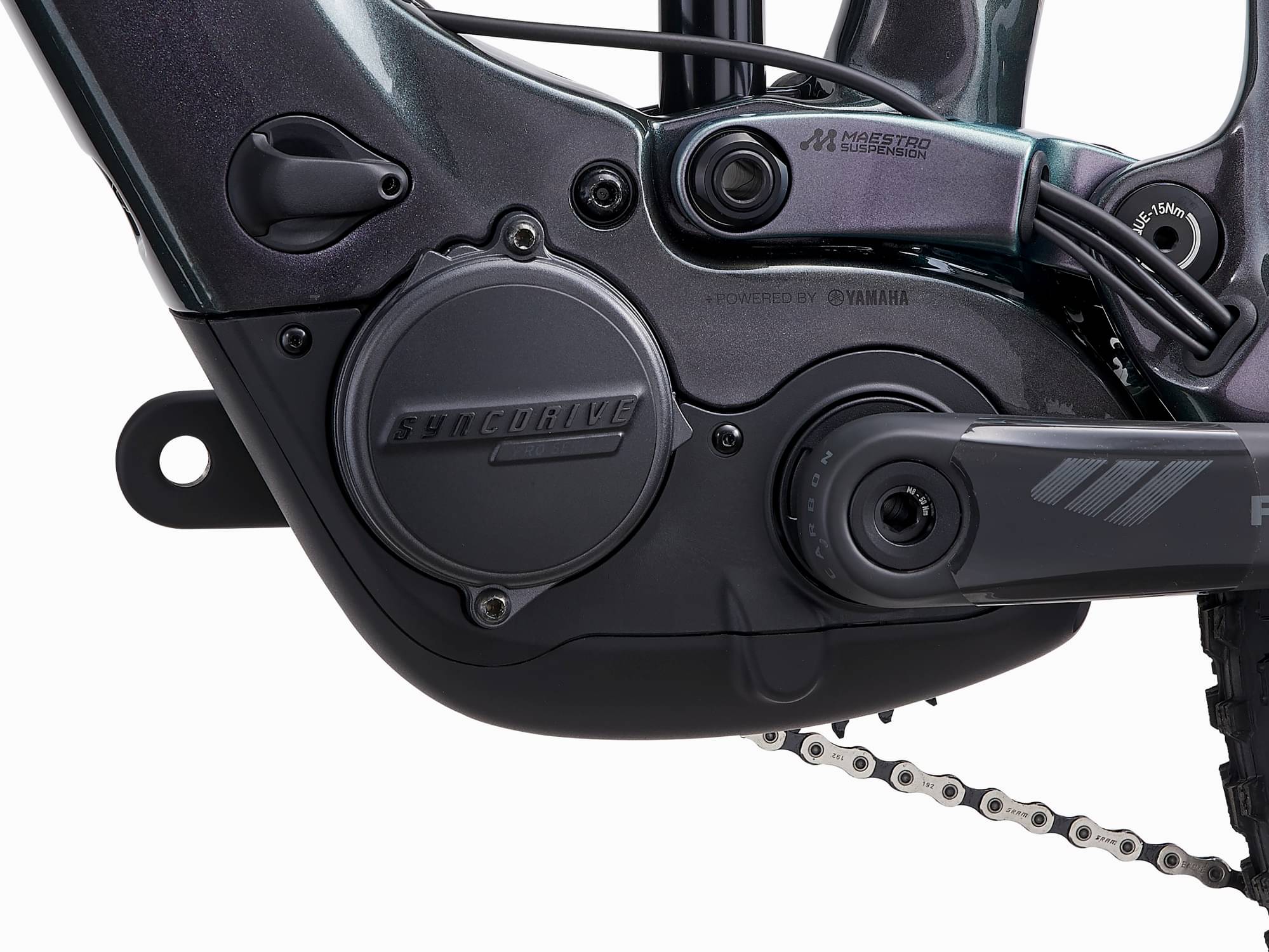

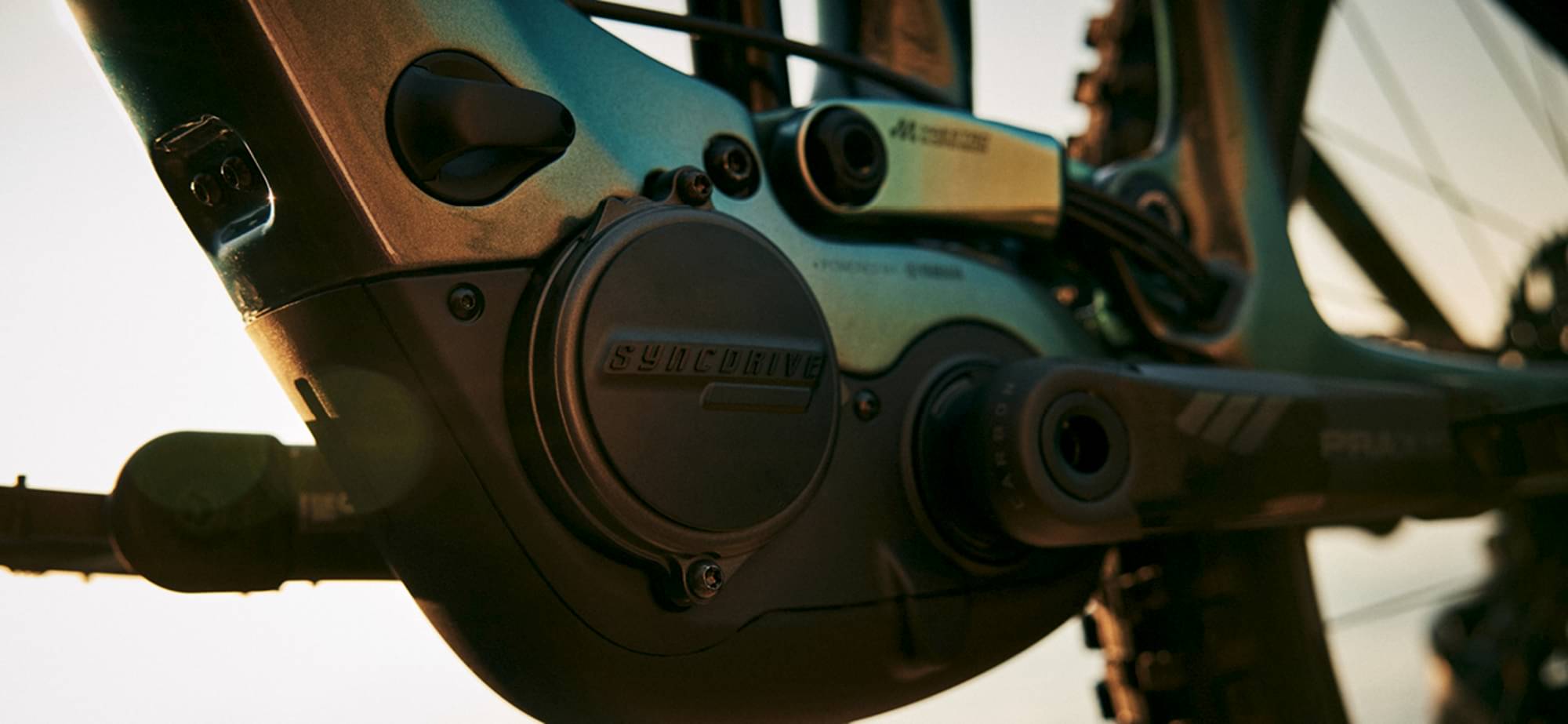

Motor
SyncDrive Pro2 85Nm, powered by Yamaha
Battery
EnergyPak Smart Compact 400, EnergyPak Plus range extender compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.45 mm | 1.36 mm | 1.4 mm | 1.34 mm | 1.38 mm | 1.31 mm | 1.34 mm |
| Bottom Bracket Height | 335 mm | 325 mm | 335 mm | 325 mm | 335 mm | 325 mm | 335 mm | 325 mm |
| Front Center | 729 mm | 729 mm | 744 mm | 743 mm | 755 mm | 755 mm | 783 mm | 783 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 113 mm | 108 mm | 113 mm | 108 mm | 113 mm | 108 mm | 113 mm |
| Stack | 598 mm | 603 mm | 598 mm | 603 mm | 602 mm | 608 mm | 616 mm | 622 mm |
| Reach | 424 mm | 416 mm | 439 mm | 431 mm | 449 mm | 441 mm | 470 mm | 463 mm |
| Top Tube Length | 552 mm | 554 mm | 567 mm | 569 mm | 592 mm | 594 mm | 617 mm | 619 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 78 ° | 77.2 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 425 mm | 425 mm | 450 mm | 450 mm |
| Head Tube Angle | 66.5 ° | 65.7 ° | 66.5 ° | 65.7 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 100 mm | 100 mm | 115 mm | 115 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1172 mm | 1171 mm | 1187 mm | 1185 mm | 1198 mm | 1197 mm | 1226 mm | 1225 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm |
| Standover Height | 727 mm | 719 mm | 732 mm | 723 mm | 723 mm | 714 mm | 720 mm | 708 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 152 cm | 158 cm | 158 cm | 164 cm | 164 cm | 170 cm | 170 cm |
| Rider Max Height | 163 cm | 163 cm | 169 cm | 169 cm | 175 cm | 175 cm | 181 cm | 181 cm |
Model Overview
Intrigue X Advanced E+, EL 1 completes the Liv E Intrigue model. There are 24 e-bikes that carry this model name. Take a sneak peek at all Liv E Intrigue e-bikes models from 2023, by clicking here.
Model range prices
Liv Intrigue X Advanced E+, EL 3 2023 is the cheapest e-bike model and costs 6000$. Liv Intrigue X Advanced, E+ Elite 1 2023 is the most expensive one and costs 10000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 10000$. Doing a quick comparison, we notice that Intrigue X Advanced E+, EL 1 price is 197.18% more expensive than the average cost of a Trail e-bike.
Overview of components
Fork
Liv Intrigue X Advanced E+, EL 1 2023 e-bike is equipped with the Fox Performance Elite Float 36 fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Intrigue X Advanced E+, EL 1 has a rear shock with a travel of 140mm. The model Fox Float X Live Valve is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Intrigue X Advanced E+, EL 1 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Intrigue X Advanced E+, EL 1 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Liv Intrigue X Advanced E+, EL 1 e-bike has 8 sizes, in the range of 152 cm – 181 cm (4.99 ft – 5.94 ft). In conclusion, you won’t have a problem finding one that suits you.

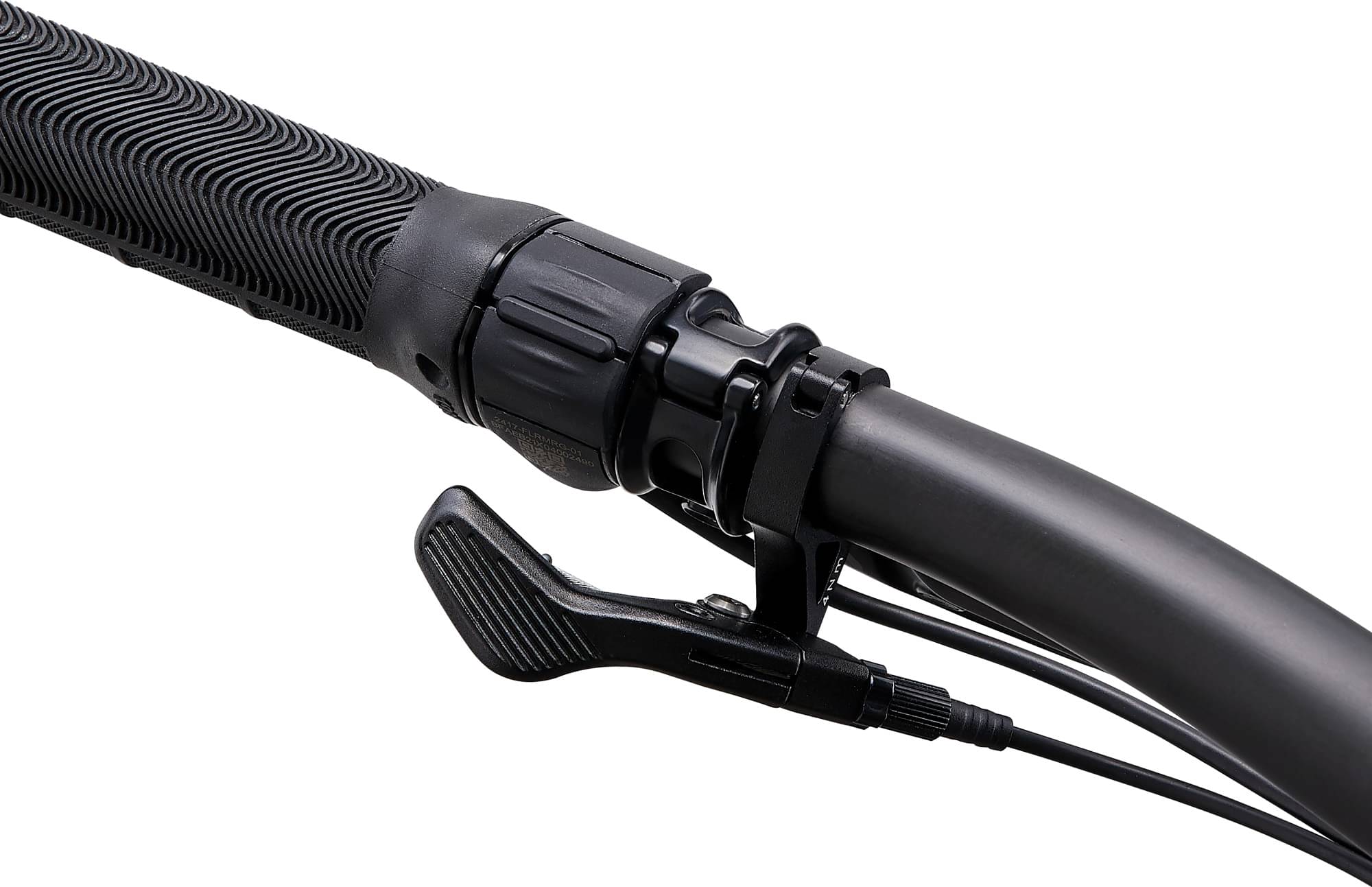

Dropper post
The Liv model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
