Liv Intrigue X Advanced E+, EL 2 2023
2023 E-bike
Estimate price |
7,200$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset SLX, Praxis -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery EnergyPak Smart 400EnergyPak Plus range extender compatible -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
152cm - 163cm
XS Low
152cm - 163cm
SM High
158cm - 169cm
SM Low
158cm - 169cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
LG High
170cm - 181cm
LG Low
170cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension systemMX (front 29", rear 27.5")
Suspension Fork
Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Kabolt-X 110

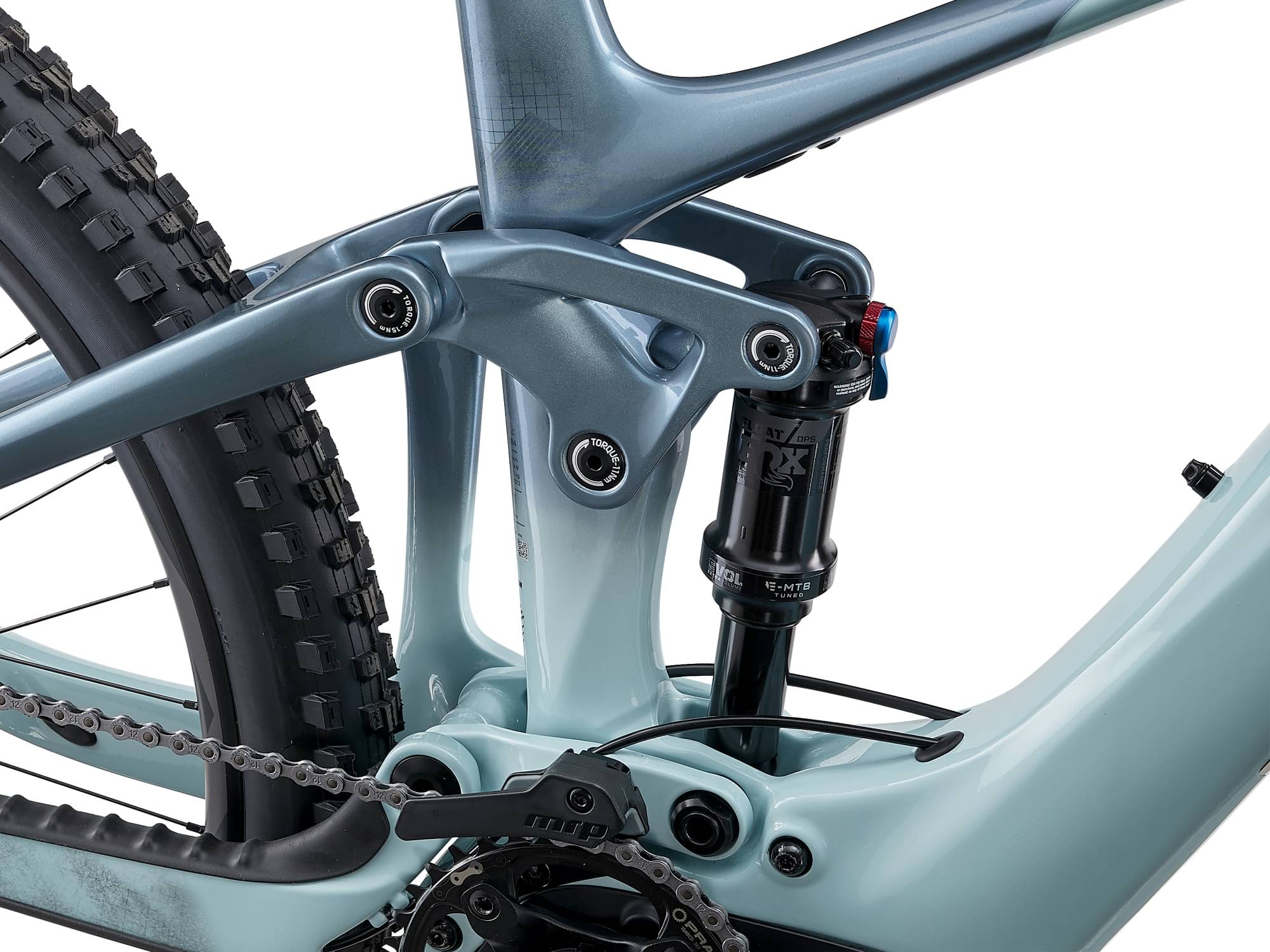

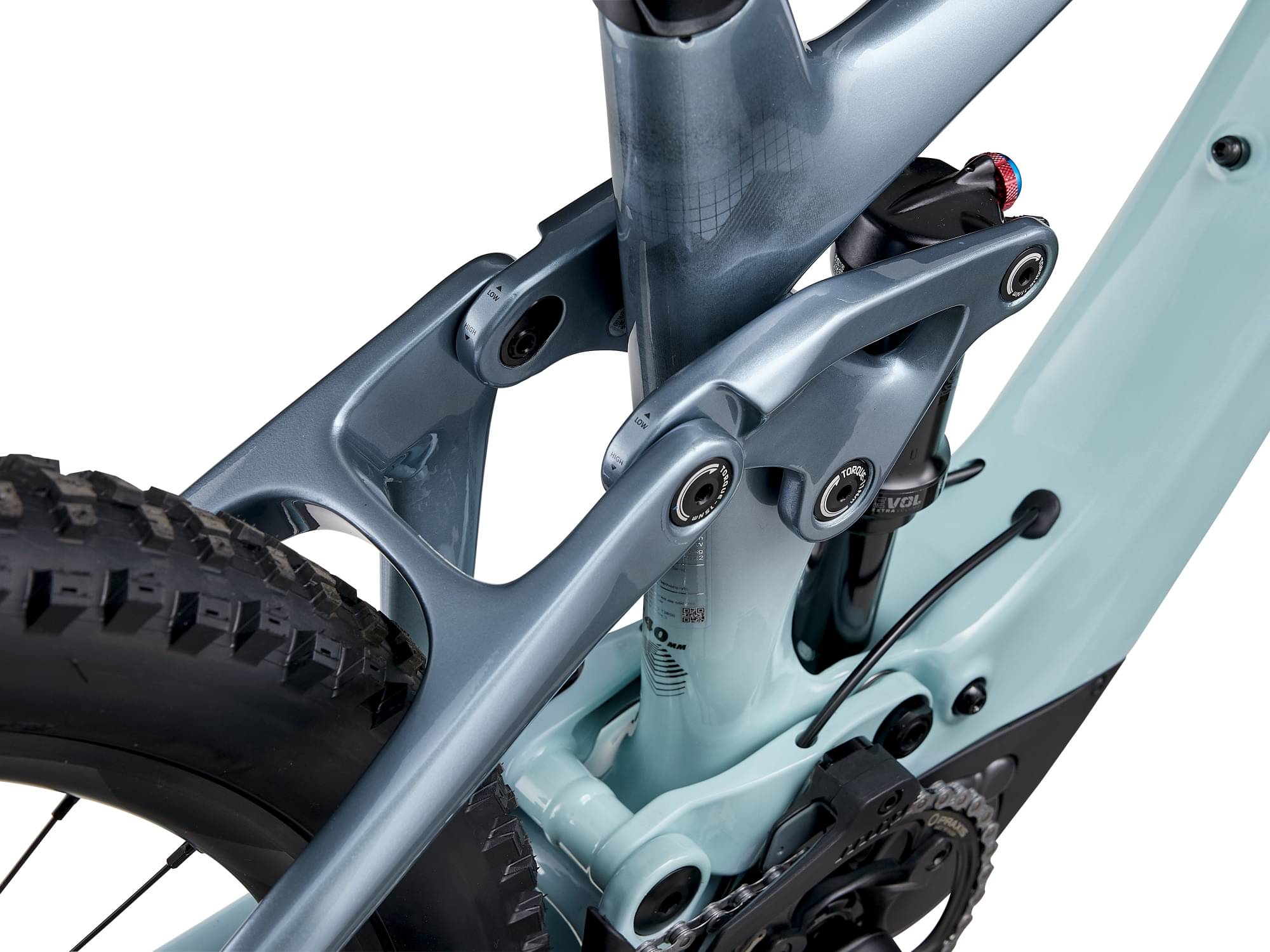

Rear Shock
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
Shimano Deore SLX, 12-speed, Shadow+
Front Derailleur
MRP HD2 co-moulded chain guide
Shift Levers
Shimano SLX
Cassette
Shimano CS-M6100-12, 10-51T, 12-speed
Crank
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (XS:160, S/M: 165, L:170)
Bottom Bracket
n/a
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized
Pedals
n/a
Wheels
Front Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Rear Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Rims
Giant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, e-bike optimized
Spokes
Sapim E-Lite [R] Race [F], e-bike optimized
Tires
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Brakes
Brakes
Shimano SLX BR-M7120, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano Deore SLX, I-spec EV
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact 35 Trail, 35x 760mm (XS-S), 780mm (M-L)
Grips
Liv Tactal Pro-E Single Lock-On Grips
Seat
Saddle
Liv Sylvia E+
Seatpost
Giant Contact Switch, dropper, 30,9mm (XS-S: 100/ M:125/ L:150)
Motor & Battery

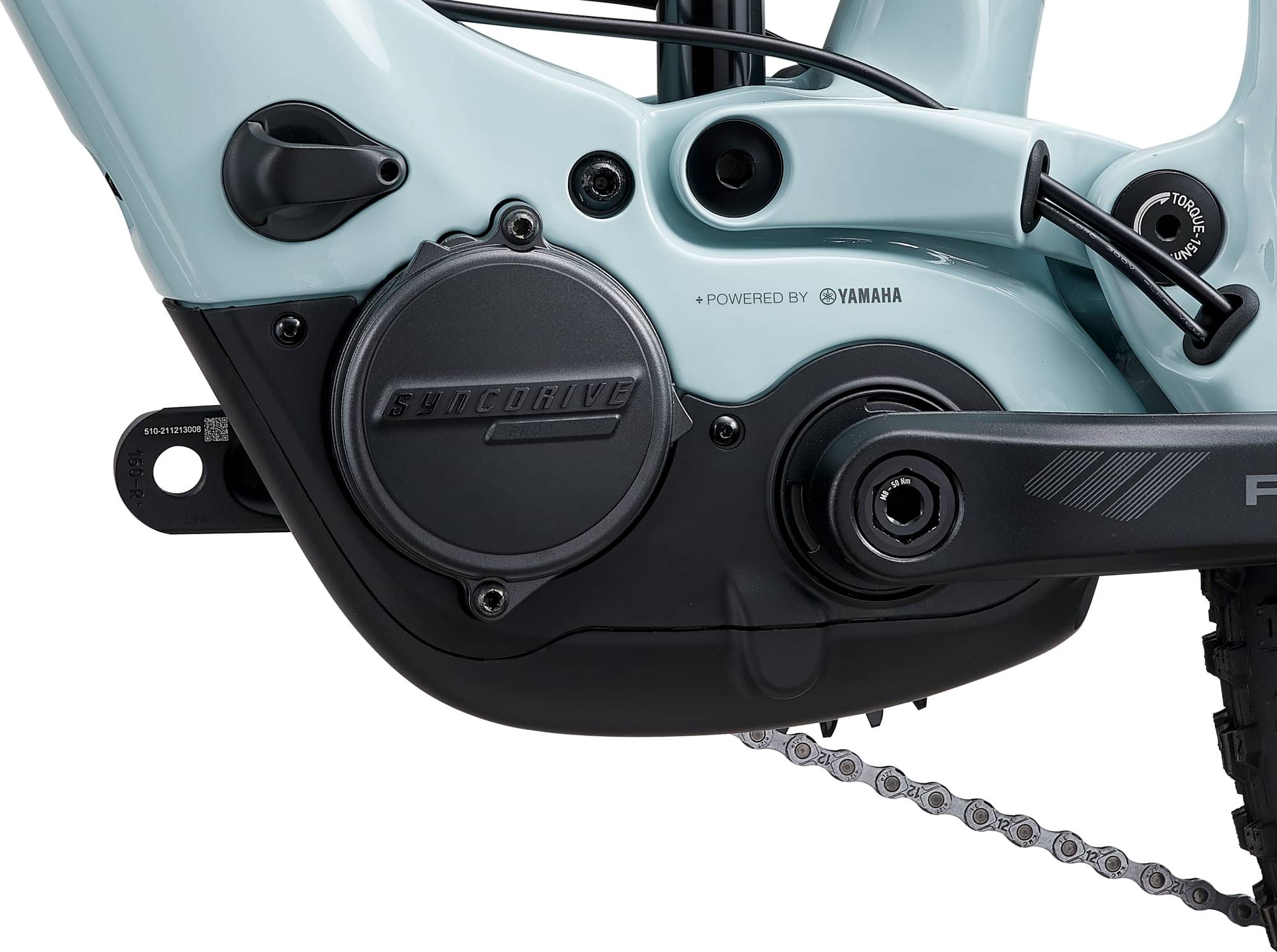

Motor
SyncDrive Pro2 85Nm, powered by Yamaha
Battery
EnergyPak Smart 400EnergyPak Plus range extender compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.45 mm | 1.36 mm | 1.4 mm | 1.34 mm | 1.38 mm | 1.31 mm | 1.34 mm |
| Front Center | 729 mm | 729 mm | 744 mm | 743 mm | 755 mm | 755 mm | 783 mm | 783 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 113 mm | 108 mm | 113 mm | 108 mm | 113 mm | 108 mm | 113 mm |
| Stack | 598 mm | 603 mm | 598 mm | 603 mm | 602 mm | 608 mm | 616 mm | 622 mm |
| Reach | 424 mm | 416 mm | 439 mm | 431 mm | 449 mm | 441 mm | 470 mm | 463 mm |
| Top Tube Length | 552 mm | 554 mm | 567 mm | 569 mm | 592 mm | 594 mm | 617 mm | 619 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 78 ° | 77.2 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 425 mm | 425 mm | 450 mm | 450 mm |
| Head Tube Angle | 66.5 ° | 65.7 ° | 66.5 ° | 65.7 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 100 mm | 100 mm | 115 mm | 115 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1172 mm | 1171 mm | 1187 mm | 1185 mm | 1198 mm | 1197 mm | 1226 mm | 1225 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm |
| Standover Height | 727 mm | 719 mm | 732 mm | 723 mm | 723 mm | 714 mm | 720 mm | 708 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 152 cm | 158 cm | 158 cm | 164 cm | 164 cm | 170 cm | 170 cm |
| Rider Max Height | 163 cm | 163 cm | 169 cm | 169 cm | 175 cm | 175 cm | 181 cm | 181 cm |
Model Overview
Intrigue X Advanced E+, EL 2 belongs to the Liv E Intrigue model. There are 24 e-bikes that carry this model name. You can easily view all of the Liv E Intrigue e-bikes models from 2023, here.
Model range prices
The most economical model, the Liv Intrigue X Advanced E+, EL 3 2023 has a starting price of 6000$. Liv Intrigue X Advanced, E+ Elite 1 2023 on the other hand is the most expensive at 10000$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 7200$. Doing a quick comparison, we notice that Intrigue X Advanced E+, EL 2 price is 113.97% higher than the average cost of a Trail e-bike.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is Fox Float Performance, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Liv Intrigue X Advanced E+, EL 2 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Intrigue X Advanced E+, EL 2 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 152 cm – 181 cm (4.99 ft – 5.94 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Liv model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
