Liv Intrigue X Advanced, E+ Elite 2 2023
2023 E-bike
Estimate price |
7,200$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset SLX, Praxis -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery EnergyPak Smart 400EnergyPak Plus range extender compatible -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
152cm - 163cm
XS Low
152cm - 163cm
SM High
158cm - 169cm
SM Low
158cm - 169cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
LG High
170cm - 181cm
LG Low
170cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension systemMX (front 29", rear 27.5")
Suspension Fork
Fox 36 Float Performance, 150mm travel, 44mm offset, Grip Damper, Boost 110x15QR, e-optimized
Rear Shock
Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
Shimano Deore SLX, 12-speed, Shadow+
Front Derailleur
MRP HD2 co-moulded chain guide
Shift Levers
Shimano SLX
Cassette
Shimano CS-M6100-12, 10-51T, 12-speed
Crank
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (XS:160, S/M: 165, L:170)
Bottom Bracket
n/a
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized
Pedals
n/a
Wheels
Front Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Rear Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Rims
Giant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, e-bike optimized
Spokes
Sapim E-Lite [R] Race [F], e-bike optimized
Tires
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Brakes
Brakes
Shimano SLX BR-M7120, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano Deore SLX, I-spec EV
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact 35 Trail, 35x 760mm (XS-S), 780mm (M-L)
Grips
Liv Tactal Pro-E Single Lock-On Grips
Seat
Saddle
Liv Sylvia E+
Seatpost
Giant Contact Switch, dropper, 30,9mm (XS-S: 100/ M:125/ L:150)
Motor & Battery

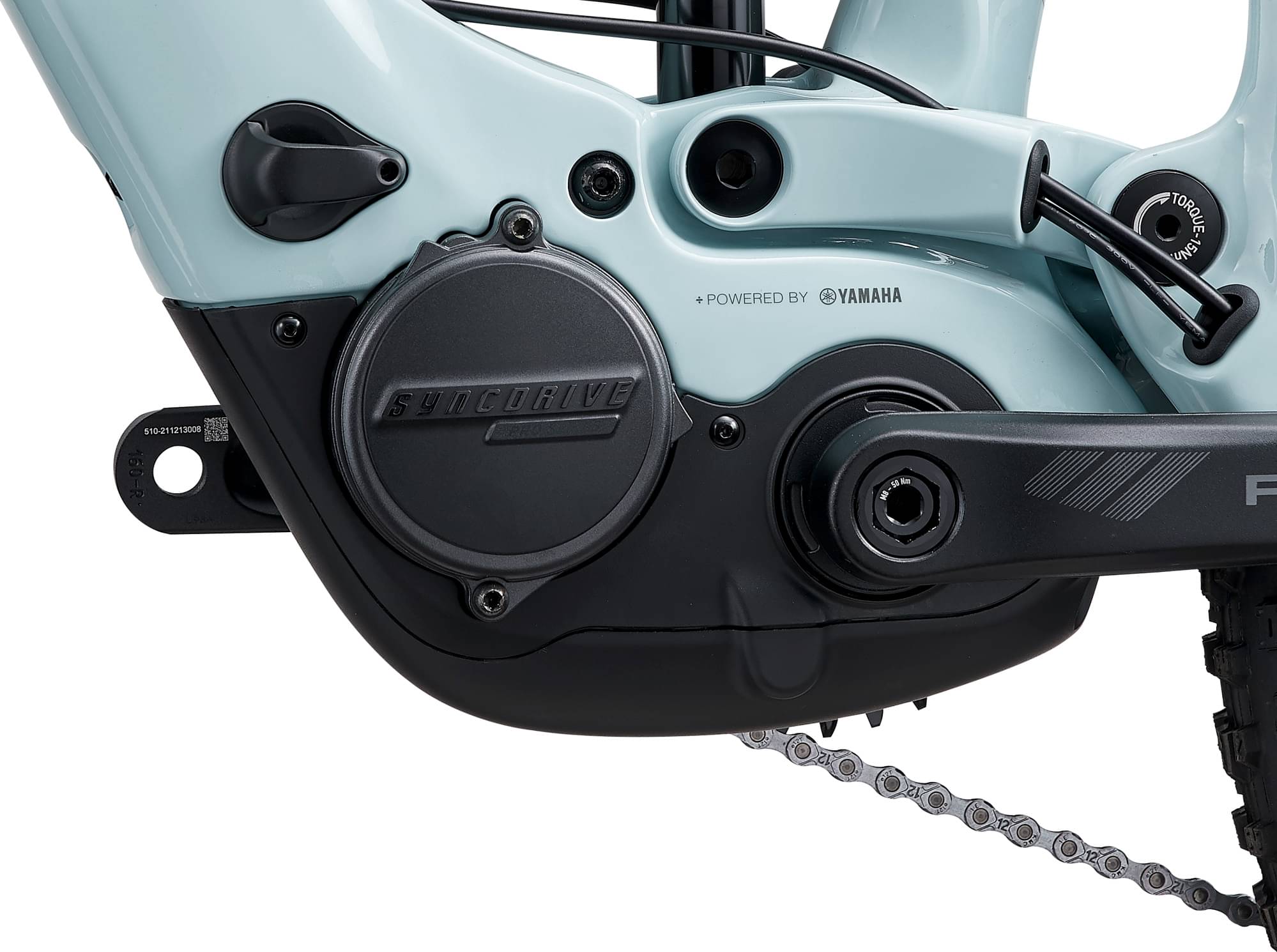

Motor
SyncDrive Pro2 85Nm, powered by Yamaha
Battery
EnergyPak Smart 400EnergyPak Plus range extender compatible
Charger
EnergyPak 4A smart charger, 60% in 1:45
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.45 mm | 1.36 mm | 1.4 mm | 1.34 mm | 1.38 mm | 1.31 mm | 1.34 mm |
| Bottom Bracket Height | 335 mm | 325 mm | 335 mm | 325 mm | 335 mm | 325 mm | mm | mm |
| Front Center | 729 mm | 729 mm | 744 mm | 743 mm | 755 mm | 755 mm | 783 mm | 783 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 113 mm | 108 mm | 113 mm | 108 mm | 113 mm | 108 mm | 113 mm |
| Stack | 598 mm | 603 mm | 598 mm | 603 mm | 602 mm | 608 mm | 616 mm | 622 mm |
| Reach | 424 mm | 416 mm | 439 mm | 431 mm | 449 mm | 441 mm | 470 mm | 463 mm |
| Top Tube Length | 552 mm | 554 mm | 567 mm | 569 mm | 592 mm | 594 mm | 617 mm | 619 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 78 ° | 77.2 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 425 mm | 425 mm | 450 mm | 450 mm |
| Head Tube Angle | 66.5 ° | 65.7 ° | 66.5 ° | 65.7 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 100 mm | 100 mm | 115 mm | 115 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1172 mm | 1171 mm | 1187 mm | 1185 mm | 1198 mm | 1197 mm | 1226 mm | 1225 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm |
| Standover Height | 727 mm | 719 mm | 732 mm | 723 mm | 723 mm | 714 mm | 720 mm | 708 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 152 cm | 158 cm | 158 cm | 164 cm | 164 cm | 170 cm | 170 cm |
| Rider Max Height | 163 cm | 163 cm | 169 cm | 169 cm | 175 cm | 175 cm | 181 cm | 181 cm |
Model Overview
Intrigue X Advanced, E+ Elite 2 is a Liv E Intrigue model. Liv released 24 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Liv Intrigue X Advanced E+, EL 3 2023 has a starting price of 6000$. Liv Intrigue X Advanced, E+ Elite 1 2023 on the other hand is the most expensive at 10000$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Liv Intrigue X Advanced, E+ Elite 2 price was 7200$. Comparing this to the average Trail e-bike price, we see that the price is 113.97% more expensive.
Intrigue X Advanced, E+ Elite 2 components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.

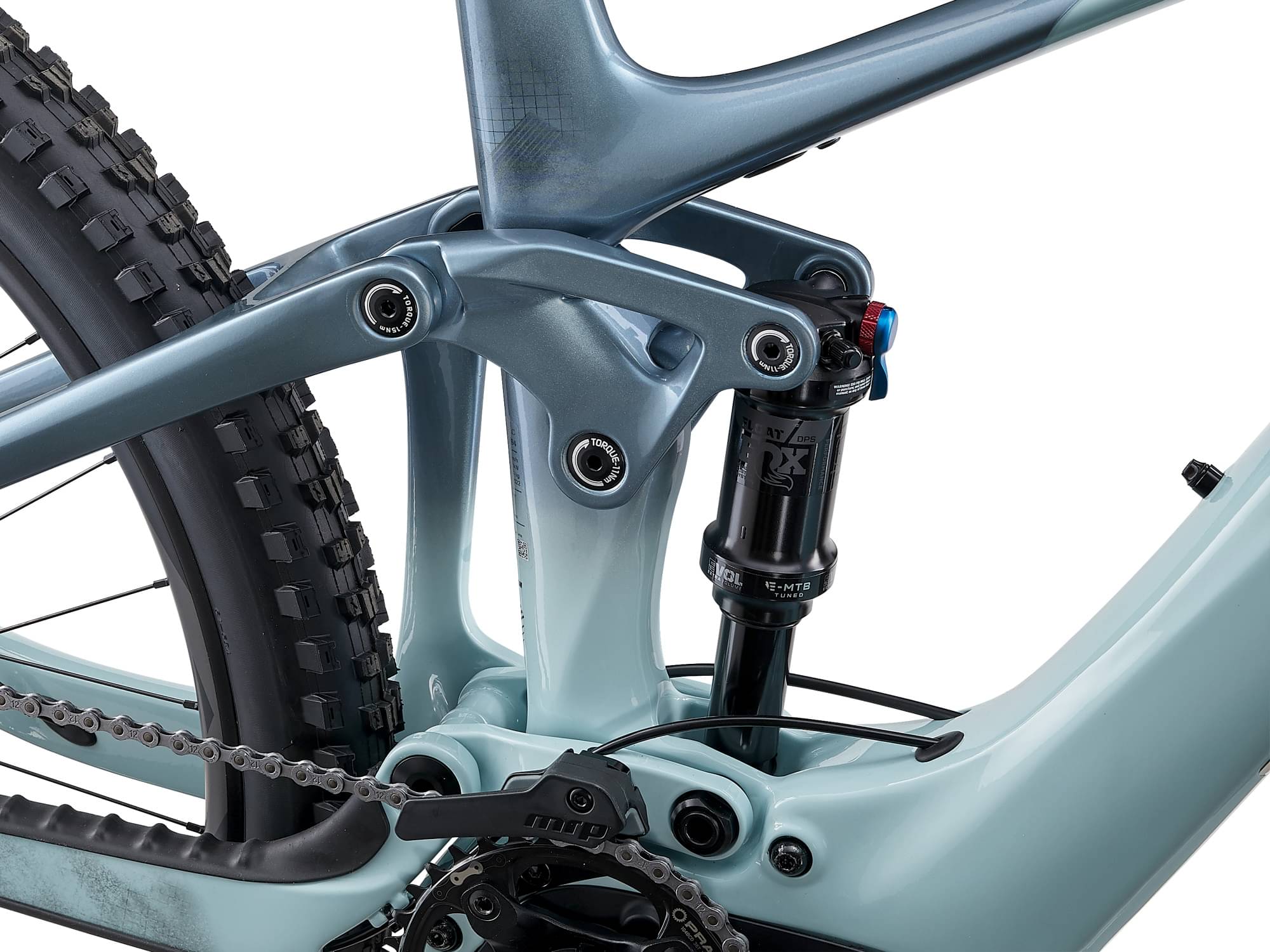

Rear Shock
The Intrigue X Advanced, E+ Elite 2 has a rear shock with a travel of 140mm. The model Fox Float DPS Performance is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Intrigue X Advanced, E+ Elite 2 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Liv Intrigue X Advanced, E+ Elite 2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Intrigue X Advanced, E+ Elite 2 comes in 8 sizes, that range from 152 cm – 181 cm (4.99 ft – 5.94 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Liv model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
