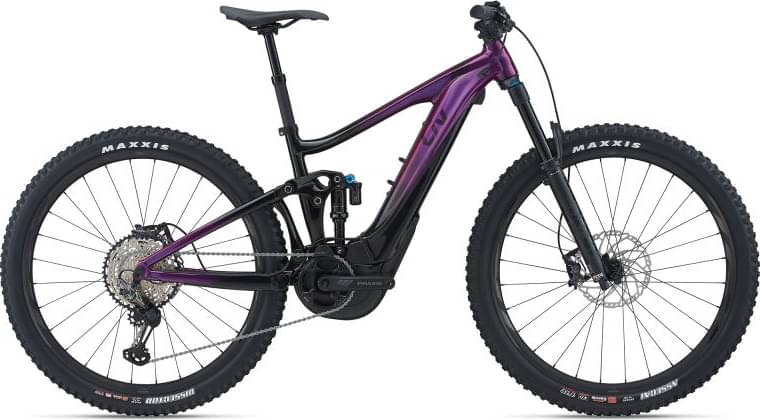

Liv Intrigue X E+ 1 Electric Bike 2021
2021 E-bike
Estimate price |
7,661$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 36
-
Groupset XTR, Praxis -
Suspension Full -
Motor Giant 250W 80Nm mid-drive -
Battery Giant EnergyPak Smart 625, 36V Integrated Lithium-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-Grade Aluminium, Advanced Forged Composite Upper Rocker, 140mm Maestro Suspension System, Boost, 148x12QR, ISS, Giant EnergyPak Plus Range Extender Compatible
Suspension Fork
Fox 36 Float Performance Elite, 150mm travel, 44mm offset, FIT4, 3Pos-Adj. Damper, Boost 110x15QR, e-optimised
Rear Shock
Fox Float DPX2 Performance,EVOL Large Volume sleeve, 3-Pos Lever, 185x52.5mm Trunnion mount
Drivetrain
Rear Derailleur
Shimano Deore XTR, 12-Speed, Shadow+
Front Derailleur
MRP 1X custom "V3" co-moulded TR chain guide
Shift Levers
Shimano Deore XT, 12-speed i-spec EV
Cassette
Shimano CS-M7100-12, 10-51T, 12-Speed
Crank
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (XS/S:160, M:165)
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimised
Pedals
N/A
Wheels
Front Hub
Giant e-TR1 [F] 110x15 [R] 148x12mm Thru-axle
Rear Hub
Giant e-TR1 [F] 110x15 [R] 148x12mm Thru-axle
Rims
Giant e-TR1 29 / 27.5+, Tubeless ready, 30mm inner width
Spokes
Giant e-TR1
Tires
Maxxis Assegai 29x2.6 foldable, Tubeless, EXO, 3c MaxxTerra[F]Maxxis Dissector 29x2.6 Foldable, Tubeless, EXO+, 120tpi 3C Compound [R] (XS: 27.5+ / S-M: 29)
Brakes
Brakes
Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano Deore XT, BL-M8100 i-spec EV
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact 35 Trail, 35x760~780mm (XS-S: 760 / M: 780)
Seat
Saddle
Liv Sport Pro
Seatpost
Giant Contact Switch, dropper, 30,9mm (XS-S: 100, M:125)
Motor & Battery
Motor
Giant SyncDrive Pro
Battery
Giant EnergyPak Smart 625, 36V Integrated Lithium-Ion
Remote
N/A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.452 mm | 1.462 mm | 1.419 mm |
| Bottom Bracket Height | 110.4 mm | 301.2 mm | 301.2 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 129.65 mm | 123.44 mm | 123.44 mm |
| Seat Tube Angle | 74.5 ° | 76 ° | 76 ° |
| Seat Tube Length | 385 mm | 405 mm | 435 mm |
| Head Tube Angle | 65 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm |
| Bottom Bracket Drop | 245 mm | 73 mm | 73 mm |
| Wheels | 27" | 29" | 29" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
Intrigue X E+ 1 Electric Bike is part of the Liv E Intrigue model. 24 e-bikes variations carry this model name so far. You can easily view all of the Liv E Intrigue e-bikes models from 2021, here.
Model range prices
Liv Intrigue X E+ 3 2021 is the cheapest e-bike model and costs 4193$. Liv Intrigue X E+ 1 Electric Bike 2021 is the most expensive one and costs 7092$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7092$. In conclusion, this e-bike price is 110.76% higher than the price of the average Trail e-bike.
Intrigue X E+ 1 Electric Bike components
Fork
The Intrigue X E+ 1 Electric Bike comes factory-installed with the Fox Performance Elite Float 36 fork. This has a travel range of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float DPX2 Performance rear shock model, which has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Liv Intrigue X E+ 1 Electric Bike 2021, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Intrigue X E+ 1 Electric Bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Liv Intrigue X E+ 1 Electric Bike e-bike has 3 sizes, in the range of 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Liv model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
