Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CoMax composite technology
Suspension Fork
Advanced-grade composite, Alloy Steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra
Cassette
Shimano CS-HG500 11x34, 10-Speed
Crank
Shimano FC-R460, 34/48
Bottom Bracket
Shimano, Press fit
Chain
KMC X10
Pedals
N/A
Wheels
Front Hub
Giant Tracker Sport Disc, 28h
Rear Hub
Giant Tracker Sport Disc, 28h
Rims
Giant SX-2 Disc, Tubeless
Spokes
Sapim Leader, 14g
Tires
Giant Crosscut Tour 2 Tubeless, 700x30
Brakes
Brakes
Tektro Spyre C, mechanical disc, [F] 160mm, [R] 140mm
Brake Levers
Tektro TL102A Sub Lever
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect XR Ergo-Control, 31.8mm
Seat
Saddle
Liv Contact Forward
Seatpost
Giant Connect composite, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.37 mm | 1.4 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm |
| Front Center | 594 mm | 611 mm | 627 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 68 mm | 68 mm |
| Stack | 512 mm | 532 mm | 556 mm |
| Reach | 374 mm | 389 mm | 397 mm |
| Top Tube Length | 517 mm | 537 mm | 557 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 465 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 105 mm | 125 mm | 150 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1014 mm | 1031 mm | 1047 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 666 mm | 694 mm | 721 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |

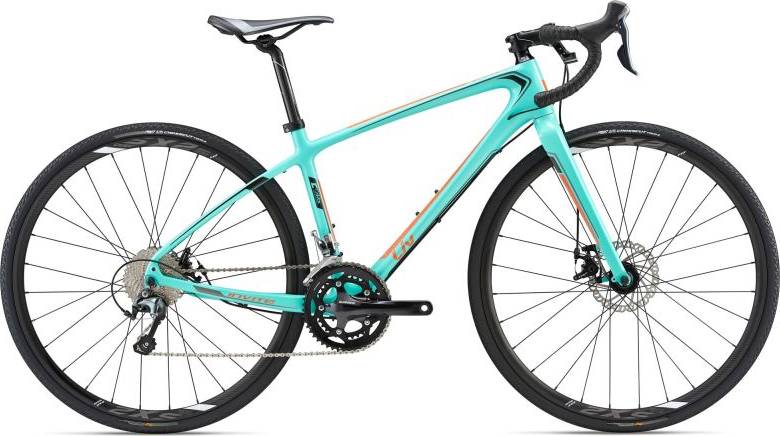

Model Overview
Invite CoMax belongs to the Liv Invite model. Liv released 10 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Liv Invite 2018 is the cheapest bike model and costs 1175$. Liv Invite CoMax 2018 is the most expensive one and costs 1685$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Liv released this model in 2018, its price was 1685$. In conclusion, this bike price is 46.11% lower than the price of the average Gravel bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Invite CoMax 2018 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Liv Invite CoMax is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Invite CoMax comes in 3 sizes, that range from 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, it won’t be difficult to find the right one for you.
