Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2, Praxis -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 163cm
SM
158cm - 169cm
MD
164cm - 176cm
LG
170cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, 12x142mm thru-axle, disc
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano 105 Di2
Front Derailleur
Shimano 105 Di2
Shift Levers
Shimano 105 Di2
Cassette
Shimano Di2, 12-speed, 11x34
Crank
Praxis Alba X, 36/52 XXS:165mm, XS:165mm, S:170mm, M:170mm, L:172.5mm
Bottom Bracket
Shimano, press fit
Chain
KMC X12
Pedals
N/A
Wheels
Front Hub
Giant alloy, 12mm thru-axle
Rear Hub
Giant alloy, 12mm thru-axle
Rims
Giant P-R2 Disc wheelset, alloy
Spokes
Sapim
Tires
Giant Course 1, tubeless, 700x25c (28mm), folding
Brakes
Brakes
Shimano 105 hydraulic, stainless rotors [F]160mm, [R]140mm
Brake Levers
Shimano 105 Di2
Cockpit
Stem
Giant Contact XXS:80mm, XS:80mm, S:90mm, M:100mm, L:110mm
Handlebar
Liv Contact XXS:36cm, XS:36cm, S:38cm, M:40cm, L:42cm
Grips
Liv All Condition
Seat
Saddle
Liv Approach
Seatpost
Giant Variant, composite XXS:357mm, XS:357mm, S:357mm, M:357mm, L:357mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 269 mm |
| Front Center | 579 mm | 582 mm | 589 mm | 600 mm |
| Rake | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 67.8 mm | 61.4 mm | 58.2 mm | 58.2 mm |
| Stack | 520 mm | 535 mm | 556 mm | 572 mm |
| Reach | 373 mm | 380 mm | 385 mm | 389 mm |
| Top Tube Length | 511 mm | 527 mm | 543 mm | 558 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 120 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 976 mm | 980 mm | 987 mm | 999 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 67 mm |
| Standover Height | 703 mm | 733 mm | 763 mm | 793 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 158 cm | 164 cm | 170 cm |
| Rider Max Height | 163 cm | 169 cm | 176 cm | 183 cm |

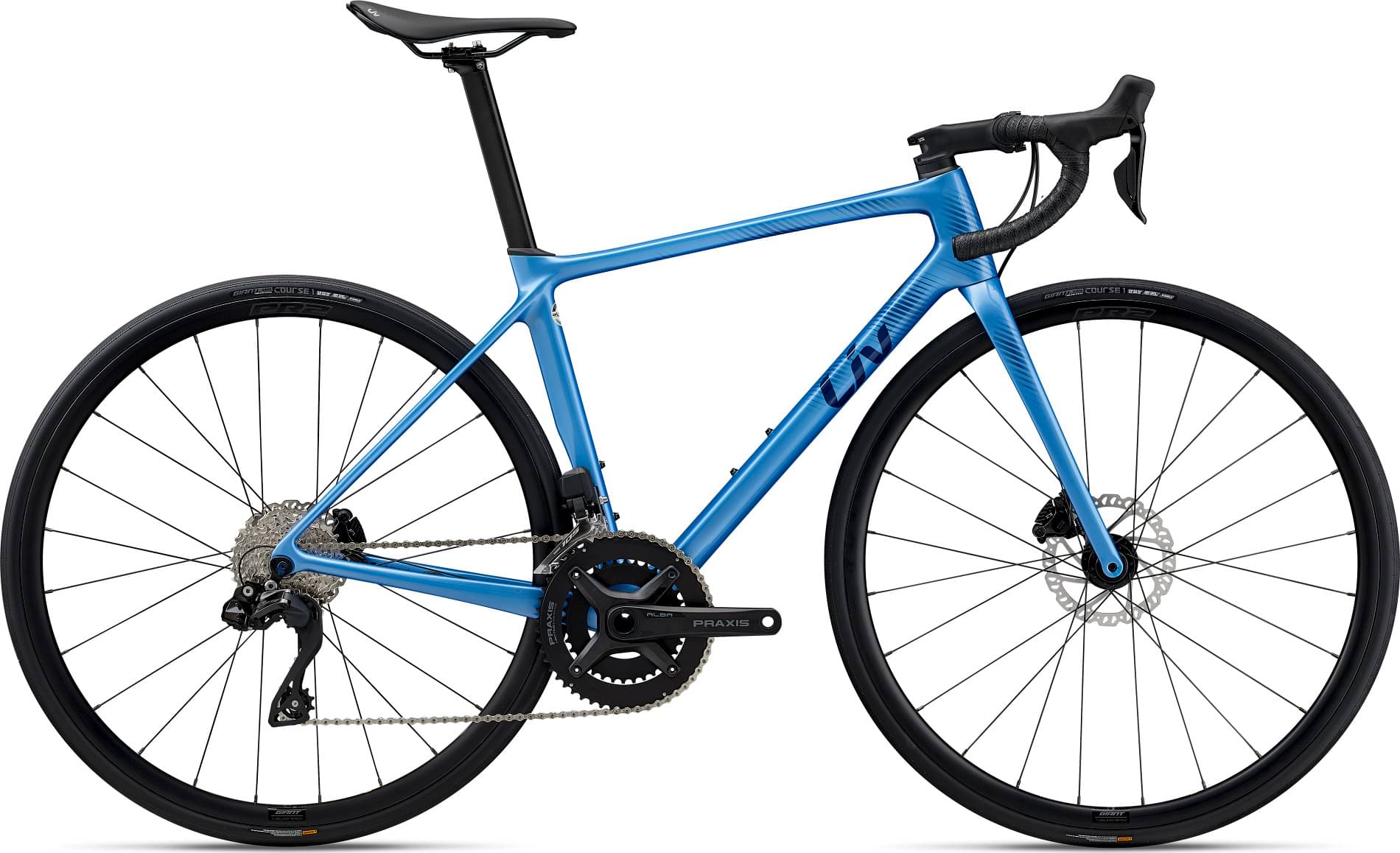

Model Overview
Langma, Advanced Disc 1 is a Liv Langma model. Liv launched 72 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Liv Langma Advanced Disc 2 Pro Compact 2023 is the cheapest bike model and costs 2653$. Liv Langma Advanced, SL Disc 0 2023 is the most expensive one and costs 8279$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 3700$. Comparing the average cost of a Race bike to this one, you will see that Langma, Advanced Disc 1 price is 10.45% higher.
Langma, Advanced Disc 1 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Langma, Advanced Disc 1 2023 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Liv Langma, Advanced Disc 1 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 152 cm – 183 cm (4.99 ft – 6 ft). In short, it won’t be difficult to find the right one for you.
