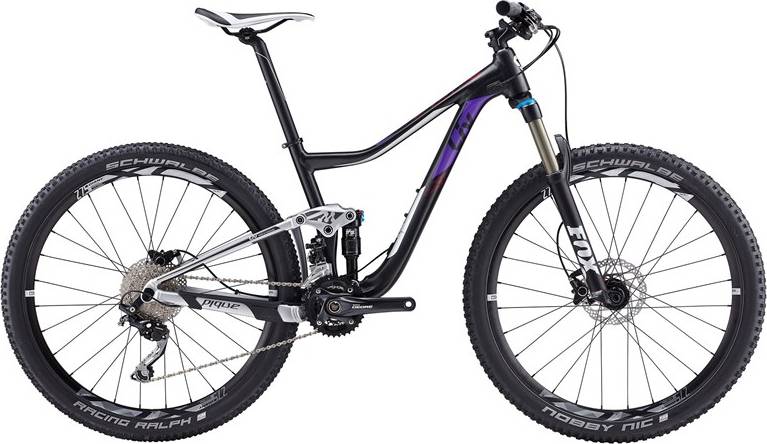

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, Advanced Forged composite upper rocker, 120mm Maestro suspension
Suspension Fork
Fox 34 Rhythm, Grip damper, 15mm thru-axle, Boost, OverDrive, 120mm travel
Rear Shock
Fox Float Performance EVOL, Trunnion mount
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano HG50 11x36, 10-speed
Crank
Shimano Deore, 22/36
Bottom Bracket
Shimano, Press fit
Chain
KMC X10
Pedals
N/A
Wheels
Front Hub
Giant Performance Tracker Disc, 28h, [F] Boost 110x15mm, [R] Boost 148x12mm
Rear Hub
Giant Performance Tracker Disc, 28h, [F] Boost 110x15mm, [R] Boost 148x12mm
Rims
Giant XC-1
Spokes
Sapim Race, 14/15g
Tires
[F] Schwalbe Nobby Nic, 27.5x2.25 [R] Racing Ralph, 27.5x2.25, Performance, Folding
Brakes
Brakes
Shimano M365, hydraulic disc, 160mm
Brake Levers
Shimano M365
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect Trail, 31.8mm
Seat
Saddle
Liv Contact Forward
Seatpost
Giant Connect, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.45 mm | 1.45 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 625 mm | 640 mm | 660 mm | 671 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 573 mm | 578 mm | 587 mm | 597 mm |
| Reach | 375 mm | 388 mm | 405 mm | 412 mm |
| Top Tube Length | 546 mm | 566 mm | 586 mm | 596 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 345 mm | 390 mm | 440 mm | 490 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1050 mm | 1065 mm | 1085 mm | 1096 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 653 mm | 683 mm | 717 mm | 750 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Pique 3 is part of the Liv Pique model. There are 32 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Liv Pique 3 2017 is the cheapest bike model and costs 2375$. Liv Pique Advanced 0 2017 is the most expensive one and costs 8975$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2017 for 2375$. Doing a quick comparison, we notice that Pique 3 price is 16.29% smaller than the average cost of a Trail bike.
Pique 3 components
Fork
This bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Fox Float Performance EVOL model, with a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Liv Pique 3 2017, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Liv Pique 3 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
