Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
148cm - 163cm
SM
158cm - 169cm
MD
164cm - 175cm
LG
170cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX grade aluminium
Suspension Fork
Suntour NCX-D hydraulic w/lockout, 63mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore shadow+
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore, 20sp
Cassette
Shimano HG500, 11-42T, 10sp
Crank
FSA V-Drive, 32-44T
Bottom Bracket
FSA sealed
Chain
KMC X10-1
Pedals
MTB caged, 9/16
Wheels
Front Hub
Alloy disc, 32H
Rear Hub
Alloy disc, 32H
Rims
Giant alloy disc
Spokes
Stainless steel, 14g
Tires
Giant CrossCut AT ERT, 700x38c
Brakes
Brakes
Shimano MT200 hydraulic, 160mm
Brake Levers
Shimano MT200 hydraulic
Cockpit
Stem
Giant Connect, 8 degree
Handlebar
Giant Connect, low-rise, 31.8mm
Seat
Saddle
Liv Contact Comfort, Upright
Seatpost
Giant alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.65 mm | 1.64 mm | 1.63 mm |
| Front Center | 599 mm | 609 mm | 624 mm | 645 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 78 mm | 74 mm | 74 mm | 74 mm |
| Stack | 587 mm | 615 mm | 629 mm | 648 mm |
| Reach | 367 mm | 373 mm | 383 mm | 397 mm |
| Top Tube Length | 534 mm | 554 mm | 574 mm | 594 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1051 mm | 1061 mm | 1076 mm | 1097 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 669 mm | 701 mm | 736 mm | 775 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 148 cm | 158 cm | 164 cm | 170 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 183 cm |

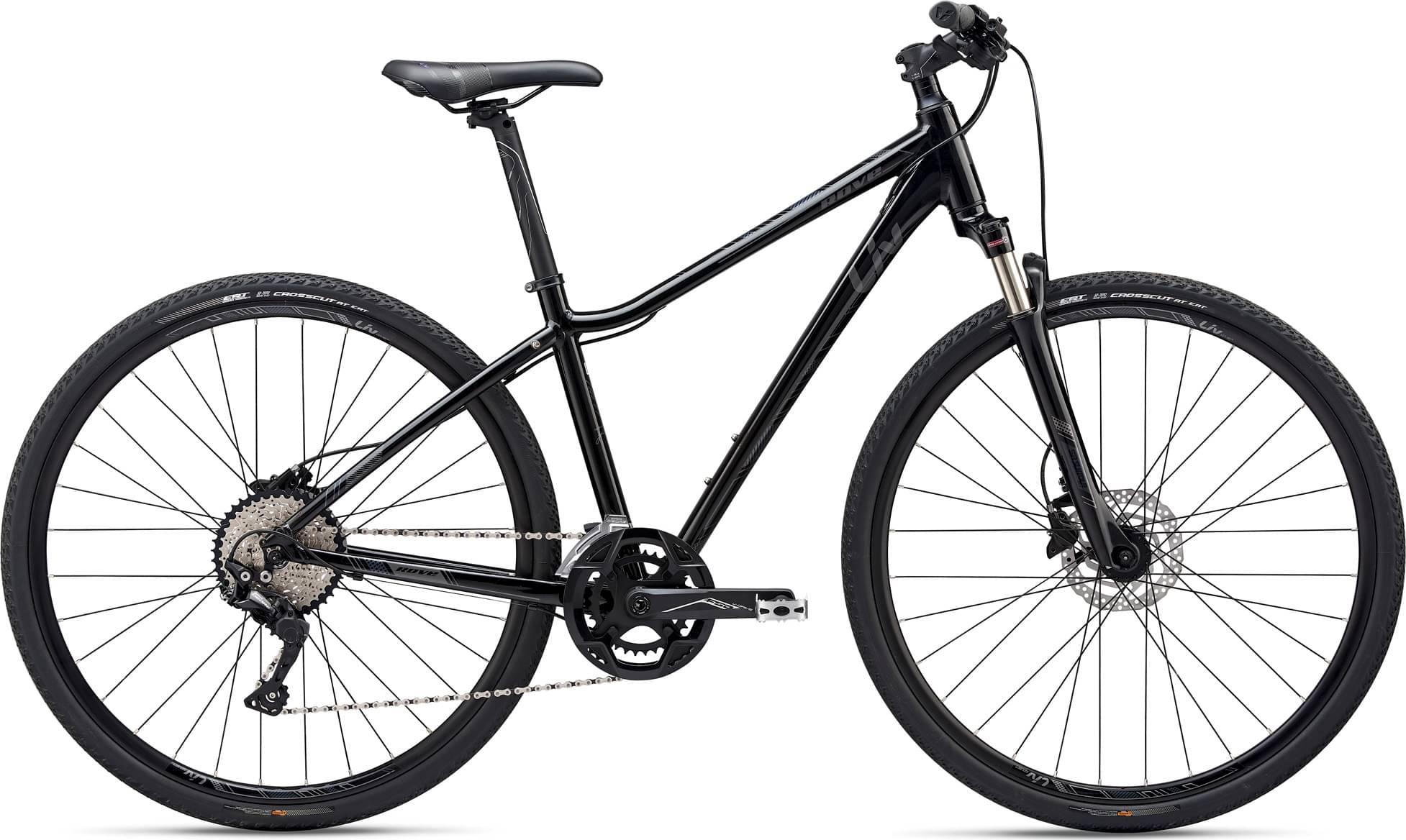

Model Overview
Rove 1 Disc is a Liv Rove model. 41 bikes variations carry this model name so far. You can easily view all of the Liv Rove bikes models from 2019, here.
Model range prices
Liv Rove 3 2019 is the cheapest bike model and costs 510$. Liv Rove 2 2019 is the most expensive one and costs 645$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid bikes
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
This bike has the Suntour NCX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Rove 1 Disc 2019 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rove 1 Disc has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Liv Rove 1 Disc bike has 4 sizes, in the range of 148 cm – 183 cm (4.86 ft – 6 ft). In conclusion, finding one for you shouldn’t be a problem.
