Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum
Suspension Fork
SR Suntour NEX HLO
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera M360
Front Derailleur
Shimano Tourney
Shift Levers
Shimano EF500
Cassette
CS-HG31, 11x34
Crank
ProWheel Burner-201P, 28/38/48
Bottom Bracket
sealed cartridge
Chain
KMC HG71
Pedals
platform
Wheels
Front Hub
32H/32h
Rear Hub
32H/32h
Rims
Giant GX28 wheelset
Spokes
stainless, 14G
Tires
Giant Crosscut, 60 tpi/wire/anti-puncture, 700x38
Brakes
Brakes
Tektro TKB172 [F160][R160]
Brake Levers
Shimano EF500
Cockpit
Stem
Giant Sport
Handlebar
Giant Sport alloy, 31.8
Seat
Saddle
Liv Connect Comfort
Seatpost
Giant Sport
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.65 mm | 1.64 mm | 1.63 mm |
| Front Center | 595 mm | 609 mm | 624 mm | 645 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 74 mm | 74 mm | 74 mm |
| Stack | 605 mm | 615 mm | 629 mm | 648 mm |
| Reach | 362 mm | 373 mm | 383 mm | 397 mm |
| Top Tube Length | 534 mm | 554 mm | 574 mm | 594 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1047 mm | 1061 mm | 1076 mm | 1097 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 626 mm | 639 mm | 667 mm | 695 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

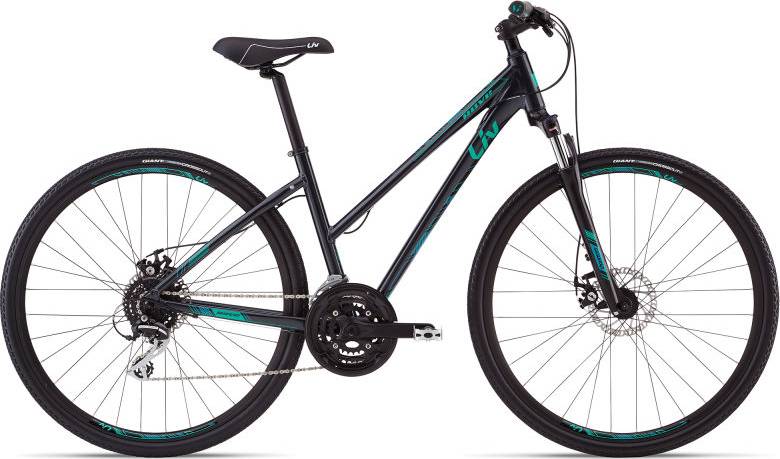

Rove 3 Disc Step Thru belongs to the Liv Rove model. Liv released 41 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Liv Rove 3 2019 is the most affordable bike of this model and has a price of 510$. On the other hand, Liv Rove 2 2019, is the most expensive and costs 645$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 510$. Doing a quick comparison, we notice that Rove 3 Disc Step Thru price is 10.2% lower than the average cost of a Hybrid bike.
Overview of components
Fork
Liv Rove 3 Disc Step Thru 2019 bike is equipped with the SunTour NEX fork, and has mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Liv Rove 3 Disc Step Thru 2019, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Rove 3 Disc Step Thru comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
