Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-grade aluminum
Suspension Fork
SR Suntour NEX, 63mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Altus
Shift Levers
Shimano EF51
Cassette
SRAM PG820 11x32, 8-speed
Crank
Shimano M131, 28/38/48
Bottom Bracket
Threaded, Sealed
Chain
KMC Z72
Pedals
Nylon w/ Anti-slip platform
Wheels
Front Hub
Alloy, 32h
Rear Hub
Alloy, 32h
Rims
Giant Alloy, Double-wall
Spokes
Stainless Steel, 14g
Tires
Kenda Multi-surface, 26x1.95
Brakes
Brakes
Alloy, Linear pull
Brake Levers
Alloy comfort
Cockpit
Stem
Alloy adjustable
Handlebar
High-tensile steel, High rise, 25.4mm
Seat
Saddle
Liv Comfort Groove Plus
Seatpost
Alloy suspension, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Top Tube Length | 541 mm | 569 mm | 589 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 196 mm | 206 mm | 216 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1029 mm | 1049 mm | 1067 mm |
| Standover Height | 442 mm | 465 mm | 485 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |

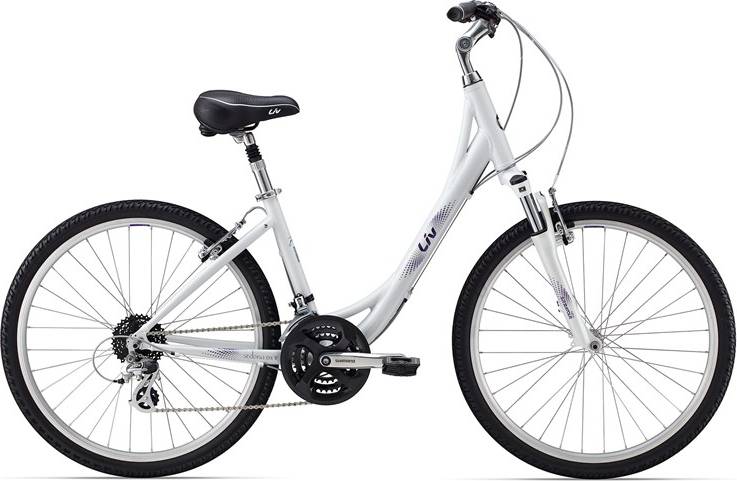

Model Overview
Sedona DX W is a Liv Sedona model. Liv launched 13 bikes of this model so far. Take a sneak peek at all Liv Sedona bikes models from 2016, by clicking here.
Model range prices
The most economical model, the Liv Sedona W 2016 has a starting price of 360$. Liv Sedona DX W 2016 on the other hand is the most expensive at 440$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Comfort bikes
If you want an acceptable Comfort bike you should know that the average price is 360$. However, this doesn’t mean that if you spend less money on a Comfort bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2016 and its price was 440$. If we compare this with the average Comfort bike cost we notice that the price is 22.22% more expensive.
Overview of components
Fork
The Sedona DX W comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Sedona DX W are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Sedona DX W comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Sedona DX W comes in 3 sizes, that range from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, finding one for you shouldn’t be a problem.
