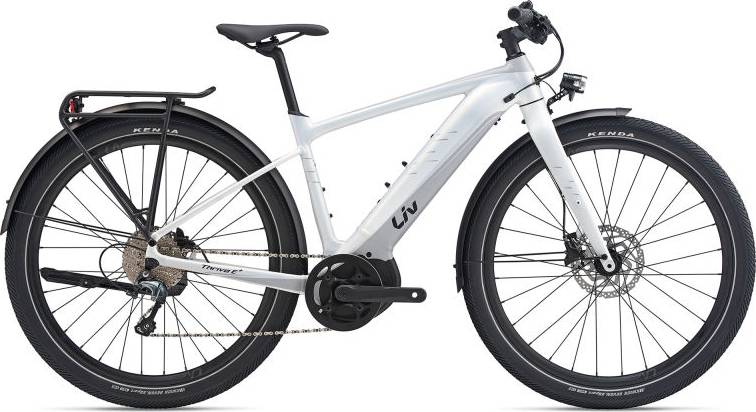

Liv Thrive E+ EX Pro 2020
2020 E-bike
Estimate price |
3,500$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset GRX 400, Tiagra -
Suspension Rigid -
Motor Yamaha mid-drive -
Battery Giant EnergyPak 375, 36V Integrated Lithium-Ion -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum
Suspension Fork
ALUXX SL-grade aluminium, OverDrive steerer, 12x100 thru-axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano GRX RX400
Front Derailleur
-
Shift Levers
Shimano Tiagra, 10-Speed
Cassette
Shimano Tiagra, 11-36, 10-Speed
Crank
Forged Alloy minimal Q-factor, 42T
Bottom Bracket
N/A
Chain
KMC e.10 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant Performance Tracker Road, Sealed Bearing
Rear Hub
Giant Performance Tracker Road, Sealed Bearing
Rims
Giant eX-2, Tubeless Ready, e-bike optimized
Spokes
Stainless
Tires
Kenda Kwick Seven.5 27.5 x 2.40 (61-584), 60TPI, W/ reflex
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180/160mm
Brake Levers
Shimano BL-MT201
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect XC Riser 31.8x640mm
Seat
Saddle
Liv Sport
Seatpost
Giant D-shape, Aluminium
Motor & Battery
Motor
Giant SyncDrive Pro, 360% tuneable support, powered by YAMAHA. Pedal support up to 28 mph.
Battery
Giant EnergyPak 375, 36V Integrated Lithium-Ion
Remote
Giant RideControl EVO, remote button
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.42 mm | 1.42 mm | 1.42 mm |
| Front Center | 604 mm | 614 mm | 620 mm | 641 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 69.4 mm | 69.4 mm | 66.1 mm | 66.1 mm |
| Stack | 559 mm | 564 mm | 575 mm | 594 mm |
| Reach | 389 mm | 397 mm | 404 mm | 419 mm |
| Top Tube Length | 547 mm | 557 mm | 567 mm | 587 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 475 mm | 510 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1057 mm | 1067 mm | 1073 mm | 1094 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Thrive E+ EX Pro completes the Liv E Thrive model. Liv released 10 e-bikes variations of this model so far. Take a sneak peek at all Liv E Thrive e-bikes models from 2020, by clicking here.
Model range prices
Liv Thrive E+ Pro EX 2020 is the most affordable e-bike of this model and has a price of 2892$. On the other hand, Liv Thrive E+ 1 Pro Electric Bike 2020, is the most expensive and costs 3648$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3500$. If we compare this with the average Hybrid e-bike cost we notice that the price is 41.13% more expensive.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The wheels on Thrive E+ EX Pro are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Thrive E+ EX Pro comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
