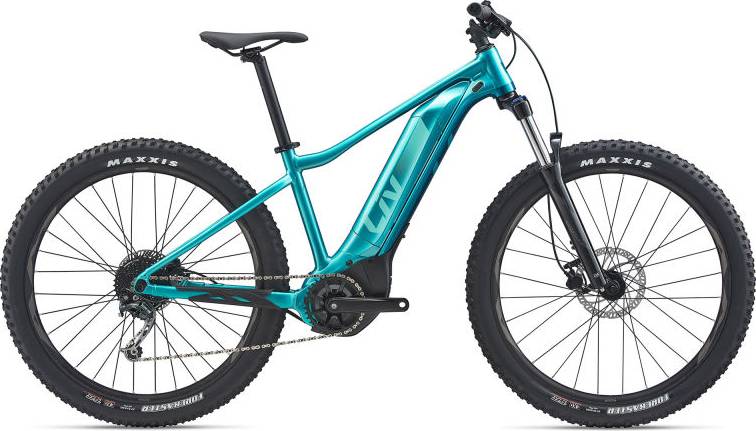

Liv Vall-E+ 3 Electric Bike 2020
2020 E-bike
Estimate price |
2,675$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Giant 250W 80Nm mid-drive -
Battery Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX aluminum, Overdrive 1½ - 1?" head tube, 141mm Boost QR, integrated KS18 kickstand mount
Suspension Fork
SR Suntour XCM34 Boost Coil NLO 27,5+ 120mm travel, Tapered 1½ - 1?" steerer, lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore, 9-Speed
Front Derailleur
-
Shift Levers
Shimano SL-M2000
Cassette
Shimano CS-HG200, 11-36T, 9-Speed
Crank
Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring
Bottom Bracket
N/A
Chain
KMC e.9 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker Boost, [F] 15mm Thru-Axle [R] 148x12mm Thru-axle, e-bike optimized
Rear Hub
Giant eTracker Boost, [F] 15mm Thru-Axle [R] 148x12mm Thru-axle, e-bike optimized
Rims
Giant AM 27.5, Tubeless ready, 30mm inner width, e-bike optimized
Spokes
Stainless steel
Tires
Maxxis Forekaster 27.5x2.6, foldable, 60 TPI, EXO, Tubeless ready
Brakes
Brakes
Tektro HD-M286, hydraulic disc, 180mm
Brake Levers
Tektro HD-M285
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect TR Riser
Seat
Saddle
Liv Sport
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport, 70Nm, 350% tuneable support with automatic smart support
Battery
Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion
Remote
Giant RideControl ONE, remote button
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.62 mm | 1.63 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm |
| Front Center | 646 mm | 656 mm | 672 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 100.2 mm | 100.2 mm | 100.2 mm |
| Stack | 611 mm | 616 mm | 634 mm |
| Reach | 373 mm | 381 mm | 389 mm |
| Top Tube Length | 549 mm | 564 mm | 584 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 365 mm | 405 mm | 460 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 115 mm | 135 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1115 mm | 1125 mm | 1141 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Standover Height | 673 mm | 695 mm | 741 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
Vall-E+ 3 Electric Bike is a Liv E Vall Eplus model. 4 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Liv Vall-E+ 3 Electric Bike 2020 is the cheapest e-bike model and costs 2432$. Liv Vall-E+ 1 Pro Electric Bike 2020 is the most expensive one and costs 3648$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 2432$. If we compare this with the average Trail e-bike cost we notice that the price is 38.36% lower.
Vall-E+ 3 Electric Bike components
Fork
This e-bike has the SunTour XCM fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the Vall-E+ 3 Electric Bike e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, it won’t take much to find one that’s right for you.
