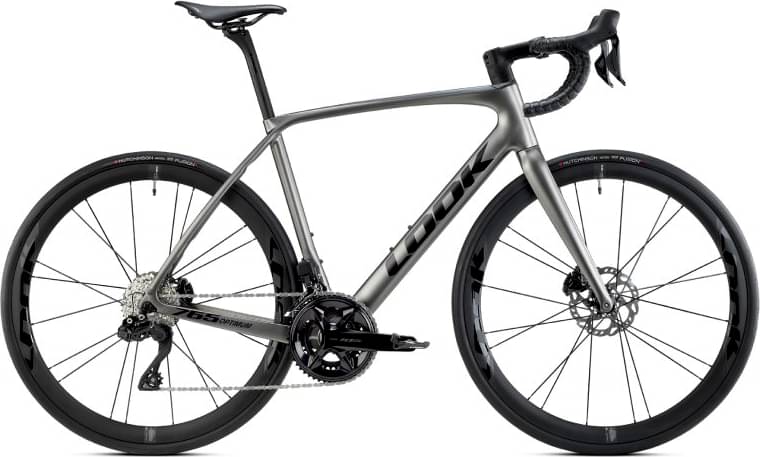

Look 765 Optimum Charcoal – SHIMANO 105 DI2 2024
2024 Road
Estimate price |
6,182$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Rear Derailleur
SHIMANO 105 DI2
Shift Levers
SHIMANO 105 DI2
Cassette
SHIMANO 105 11 x 34
Crank
SHIMANO 105 (XS-S 170/M-L 172,5 /XL 175)
Bottom Bracket
BB T47 V24 85.5 / Token
Chain
SHIMANO 105 12 Speed
Wheels
Rims
LOOK R 38 D Carbon Tubeless
Tires
CONICAL (Syntace STD) 142X12 R / 100 X 12 F P1.5
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
LOOK LS3 Alloy (XS 80/ S 90 / M 100 / L 110 / XL 120)
Handlebar
LOOK LS2 Alloy (XS –S 40 / M – L 42 / XL 44)
Seat
Saddle
LOOK by S MARCO Short Fit Dynamic Open Fit
Seatpost
LOOK LS1 Carbon Super Light 27.2 mm 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.487 mm | 1.512 mm | 1.536 mm | 1.558 mm | 1.579 mm |
| Bottom Bracket Height | 260 mm | 260 mm | 262 mm | 262 mm | 265 mm |
| Front Center | 576 mm | 594 mm | 613 mm | 630 mm | 650 |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 534 mm | 558 mm | 582 mm | 606 mm | 630 mm |
| Reach | 359 mm | 369 mm | 379 mm | 389 mm | 399 mm |
| Top Tube Length | 511.8 mm | 528.7 mm | 545.5 mm | 562.4 mm | 579.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 535 mm | 560 mm |
| Head Tube Angle | 70.8 ° | 70.8 ° | 70.8 ° | 70.8 ° | 70.8 ° |
| Head Tube Length | 117 mm | 142 mm | 170 mm | 196 mm | 224 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 979 mm | 997 mm | 1017 mm | 1034 mm | 1055 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 73 mm | 73 mm | 71 mm |
| Standover Height | 742 mm | 766 mm | 790 mm | 814 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
765 Optimum Charcoal – SHIMANO 105 DI2 is a Look 765 model. Look launched 54 bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Look 765 GRAVEL Green Mat 2024 is the cheapest bike model and costs 2637$. Look 765 Optimum Charcoal – Shimano Ultegra DI2 2024 is the most expensive one and costs 6661$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Look released this model in 2024, its price was 5708$. In conclusion, this bike price is 143.31% higher than the price of the average Endurance bike.
Overview of components
Fork material
765 Optimum Charcoal – SHIMANO 105 DI2 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The 765 Optimum Charcoal – SHIMANO 105 DI2 2024 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The 765 Optimum Charcoal – SHIMANO 105 DI2 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
