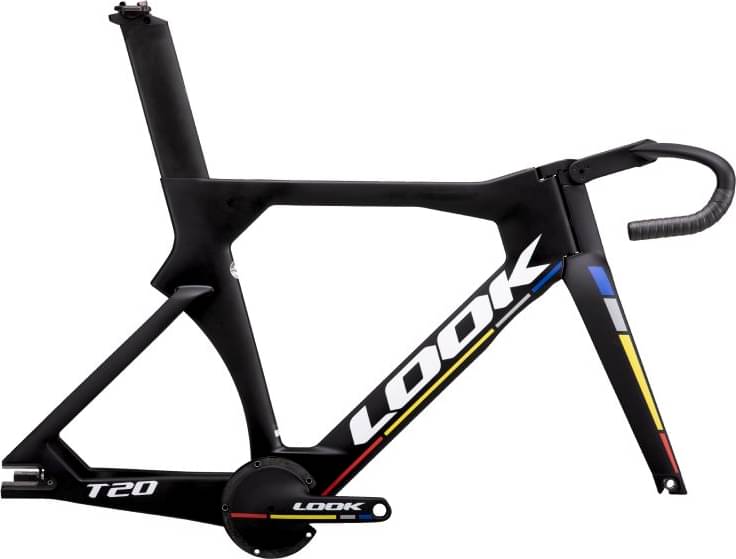

Look T20 Speed Version – Frameset 2024
2024 Road
Estimate price |
8,433$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Crank
LOOK ZED Track (without plates) - T1: 165 / 167.5 / 170 mm or T2: 172.5 / 175 / 177.5 mm
Bottom Bracket
BB 65 LOOK Specific
Cockpit
Stem
LOOK TRACK CARBON Stem - Available lengths: from 55 to 140 mm, in 5 mm intervals
Handlebar
AERO BAR TRACK 400 mm reversible + AERGO extensions
Seat
Seatpost
LOOK AEROPOST Track
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.354 mm | 1.28 mm | 1.218 mm | 1.165 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 544 mm | 583.2 mm | 622.1 mm | 650.6 mm |
| Rake | 43 mm | 43 mm | 43 mm | 34 mm |
| Trail | 61.5 mm | 61.5 mm | 61.5 mm | 70.9 mm |
| Stack | 486 mm | 503 mm | 520 mm | 537 mm |
| Reach | 359 mm | 393 mm | 427 mm | 461 mm |
| Top Tube Length | 493.7 mm | 532.5 mm | 571.2 mm | 609.9 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 89.5 mm | 107.3 mm | 125.1 mm | 142.9 mm |
| Chainstay Length | 380 mm | 380 mm | 380 mm | 380 mm |
| Wheelbase | 918 mm | 958 mm | 997 mm | 1025 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 746 mm | 758 mm | 799 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
T20 Speed Version – Frameset belongs to the Look T20 model. Look launched 6 frames of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
The most economical model, the Look T20 Speed Version – Frameset 2024 has a starting price of 7676$. Look T20 TT Version – Frameset 2024 on the other hand is the most expensive at 8311$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Track frames average price
If you want an acceptable Track frame you should know that the average price is 2508$. However, even though the average price of a Track frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Look T20 Speed Version – Frameset price was 7676$. Doing a quick comparison, we notice that T20 Speed Version – Frameset price is 206.06% higher than the average cost of a Track frame.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
