Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c / 650b -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
XS
155cm - 168cm
SM
163cm - 174cm
SM
163cm - 174cm
MD
170cm - 181cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
LG
181cm - 193cm
XL
188cm - 200cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro GR Gravel Fork with 12mm Thru Axle
Drivetrain
Rear Derailleur
SRAM Force eTap AXS Front Derailleur
Cassette
SRAM Force AXS XG-1270 12-SPEED CASSETTE 10-33t
Crank
SRAM Force AXS DUB CRANKSET 2x
Bottom Bracket
SRAM DUB Bottom Bracket - BSA 68mm English threaded
Chain
SRAM Force D1 12 Speed Chain
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Alluvium Pro 700x40
Brakes
Brakes
SRAM Force eTap AXS HRD Front(left) Shifter w/Caliper
Disk Rotors
160mm
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | MD/LG | MD/LG | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.47 mm | 1.47 mm | 1.5 mm | 1.5 mm | 1.53 mm | 1.53 mm | 1.58 mm | 1.58 mm | 1.59 mm | 1.59 mm |
| Bottom Bracket Height | 269 mm | mm | 271 mm | mm | 271 mm | mm | 274 mm | mm | 274 mm | mm | 276 mm | mm |
| Front Center | 595 mm | 595 mm | 605 mm | 605 mm | 612 mm | 612 mm | 625 mm | 625 mm | 633 mm | 633 mm | 650 | 650 |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 64 mm | 74 mm | 67 mm | 69 mm | 63 mm | 69 mm | 63 mm | 67 mm | 61 mm | 67 mm | 61 mm |
| Stack | 529 mm | 529 mm | 549 mm | 549 mm | 569 mm | 569 mm | 589 mm | 589 mm | 614 mm | 614 mm | 634 mm | 634 mm |
| Reach | 369 mm | 369 mm | 374 mm | 374 mm | 379 mm | 379 mm | 384 mm | 384 mm | 389 mm | 389 mm | 399 mm | 399 mm |
| Top Tube Length | 523 mm | 523 mm | 537 mm | 537 mm | 549 mm | 549 mm | 564 mm | 564 mm | 579 mm | 579 mm | 599 mm | 599 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 450 mm | 470 mm | 470 mm | 490 mm | 490 mm | 510 mm | 510 mm | 530 mm | 530 mm | 550 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 110 mm | 126 mm | 126 mm | 145 mm | 145 mm | 169 mm | 169 mm | 193 mm | 193 mm | 217 mm | 217 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1017 mm | 1017 mm | 1027 mm | 1027 mm | 1035 mm | 1035 mm | 1049 mm | 1049 mm | 1056 mm | 1056 mm | 1074 mm | 1074 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm | 78 mm | 75 mm | 75 mm | 75 mm | 75 mm | 73 mm | 73 mm |
| Standover Height | 715 mm | 715 mm | 736 mm | 736 mm | 757 mm | 757 mm | 779 mm | 779 mm | 799 mm | 799 mm | 823 mm | 823 mm |
| Wheels | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 |
| Rider Min Height | 155 cm | 155 cm | 163 cm | 163 cm | 170 cm | 170 cm | 175 cm | 175 cm | 181 cm | 181 cm | 188 cm | 188 cm |
| Rider Max Height | 168 cm | 168 cm | 174 cm | 174 cm | 181 cm | 181 cm | 187 cm | 187 cm | 193 cm | 193 cm | 200 cm | 200 cm |
Model Overview

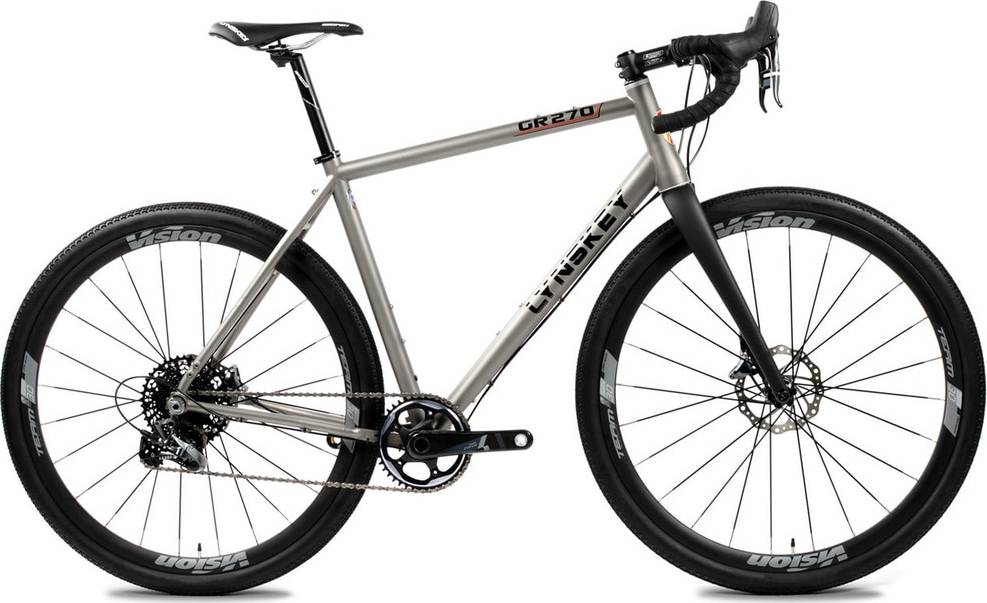

GR 270 SRAM Force eTap AXS completes the Lynskey Gr model. Lynskey released 20 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
GR 270 SRAM Force eTap AXS components
Wheels
When leaving the production line, the GR 270 SRAM Force eTap AXS model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The GR 270 SRAM Force eTap AXS has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
GR 270 SRAM Force eTap AXS comes in 12 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
