Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro GR Gravel Fork with 12mm Thru Axle
Drivetrain
Rear Derailleur
SRAM Force eTap AXS Rear Derailleur
Shift Levers
Optional: Please select preferred setup.
Cassette
SRAM Force AXS XG-1270 12-SPEED CASSETTE 10-33t
Crank
SRAM Force AXS DUB CRANKSET 1x
Bottom Bracket
SRAM DUB Bottom Bracket - BSA 68mm English threaded
Chain
SRAM Force D1 12 Speed Chain
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Flintridge Pro 700x40c
Brakes
Brakes
SRAM Force eTap AXS HRD Front(left) Shifter w/Caliper
Disk Rotors
SRAM Centerline XR 2-Piece 160mm Rounded Rotors
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.46 mm | 1.52 mm | 1.57 mm | 1.59 mm |
| Bottom Bracket Height | 269 mm | 271 mm | 271 mm | 274 mm | 274 mm | 276 mm |
| Front Center | 589 mm | 606 mm | 608 mm | 613 mm | 619 mm | 629 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm | 63 mm | 64 mm | 57 mm | 59 mm |
| Stack | 539 mm | 541 mm | 563 mm | 585 mm | 612 mm | 629 mm |
| Reach | 367 mm | 383 mm | 386 mm | 384 mm | 391 mm | 396 mm |
| Top Tube Length | 519 mm | 539 mm | 549 mm | 559 mm | 574 mm | 589 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 71.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 111 mm | 115 mm | 135 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 995 mm | 1013 mm | 1015 mm | 1021 mm | 1027 mm | 1037 mm |
| Bottom Bracket Drop | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm | 73 mm |
| Standover Height | 715 mm | 736 mm | 757 mm | 779 mm | 799 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
About this model

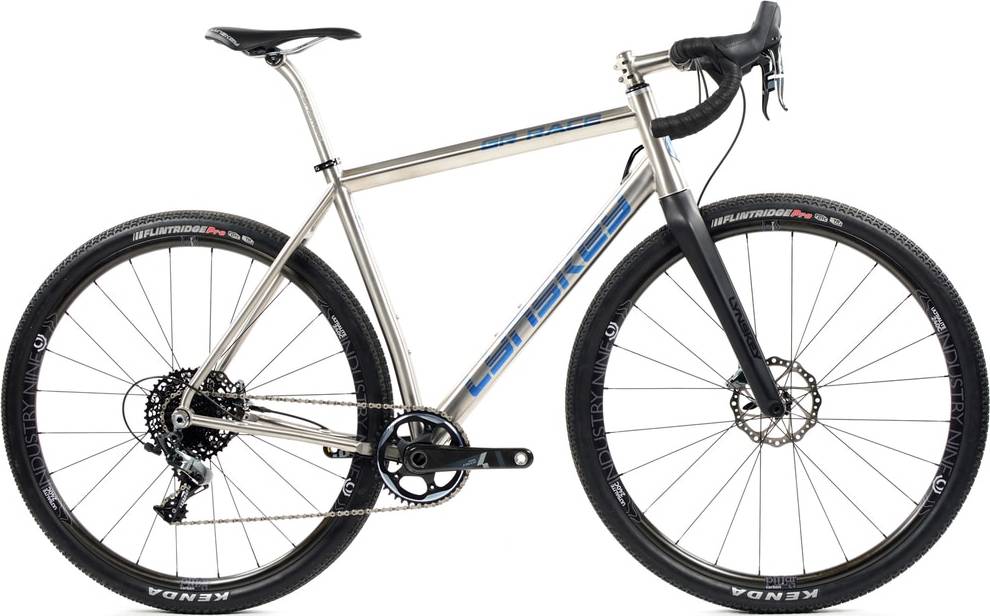

GR Race SRAM Force eTap AXS 1×12 is a Lynskey Gr model. Lynskey launched 20 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
GR Race SRAM Force eTap AXS 1×12 components
Wheels size
The GR Race SRAM Force eTap AXS 1×12 2020 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lynskey GR Race SRAM Force eTap AXS 1×12 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
GR Race SRAM Force eTap AXS 1×12 comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
