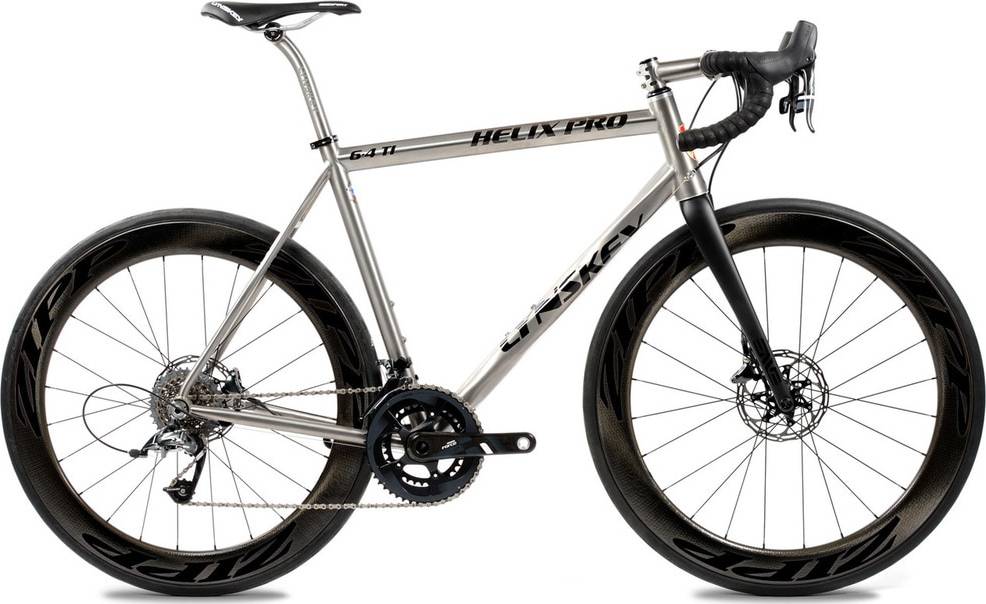

Lynskey Helix Pro SRAM Force eTap AXS Hydraulic Disc 2019
2019 Road
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Force eTAP, RED eTAP -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro Road Carbon #5 Fork w/ Axle
Drivetrain
Rear Derailleur
SRAM Force eTap AXS Front Derailleur
Shift Levers
Yes: Shimano Di2, SRAM eTap (Removable Guides)
Cassette
SRAM Force AXS XG-1270 12-Speed Cassette 10-33t
Crank
SRAM Force AXS DUB Crankset 2x
Bottom Bracket
SRAM DUB Bottom Bracket - BSA 68mm English threaded
Chain
SRAM Force D1 12 Speed Chain
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Valkyrie 700x28
Brakes
Brakes
SRAM Force eTap AXS HRD Front(left) Shifter w/Caliper
Disk Rotors
SRAM Centerline XR 2-Piece 160mm Rounded Rotor
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.4 mm | 1.4 mm | 1.44 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 269 mm |
| Front Center | 571 mm | 574 mm | 590 mm | 595 mm | 615 mm | 635 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 58 mm | 58 mm | 56 mm | 57 mm | 56 mm |
| Stack | 502 mm | 519 mm | 533 mm | 554 mm | 572 mm | 589 mm |
| Reach | 364 mm | 370 mm | 381 mm | 386 mm | 400 mm | 414 mm |
| Top Tube Length | 502 mm | 522 mm | 542 mm | 557 mm | 577 mm | 602 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 111 mm | 126 mm | 141 mm | 161 mm | 180 mm | 201 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 968 mm | 971 mm | 987 mm | 993 mm | 1012 mm | 1033 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 67 mm |
| Standover Height | 722 mm | 737 mm | 752 mm | 772 mm | 792 mm | 808 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview
Helix Pro SRAM Force eTap AXS Hydraulic Disc belongs to the Lynskey Helix model. Lynskey launched 111 bikes of this model so far. Take a sneak peek at all Lynskey Helix bikes models from 2019, by clicking here.
Model range prices
Lynskey Helix Sport Shimano 105 Mechanical Disc 2019 is the most affordable bike of this model and has a price of 2850$. On the other hand, Lynskey Helix Pro Limited Edition Shimano 105 Mechanical Disc 2019, is the most expensive and costs 3250$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Helix Pro SRAM Force eTap AXS Hydraulic Disc components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Helix Pro SRAM Force eTap AXS Hydraulic Disc model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Helix Pro SRAM Force eTap AXS Hydraulic Disc has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Helix Pro SRAM Force eTap AXS Hydraulic Disc comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
