Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset RED, RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro Road Carbon #5 Fork w/ Axle
Drivetrain
Rear Derailleur
SRAM Red WiFli Rear Derailleur, 11 speed, Medium Cage
Front Derailleur
SRAM Red Yaw, Braze-on Front Derailler
Shift Levers
Yes: Shimano Di2, SRAM eTap (Removable Guides)
Cassette
SRAM Red XG-1190 11-SPEED CASSETTE 11-32t
Crank
SRAM Red GXP CRANKSET 50/34t
Bottom Bracket
SRAM GXP Team Bottom Bracket - BSA 68mm English threaded
Chain
SRAM PC-1170 11 Speed Chain
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Valkyrie 700x28
Brakes
Brakes
SRAM Red HRD Front Shifter w/Caliper
Disk Rotors
SRAM Centerline 160mm Rotor
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.4 mm | 1.4 mm | 1.44 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 269 mm |
| Front Center | 571 mm | 574 mm | 590 mm | 595 mm | 615 mm | 635 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 58 mm | 58 mm | 56 mm | 57 mm | 56 mm |
| Stack | 502 mm | 519 mm | 533 mm | 554 mm | 572 mm | 589 mm |
| Reach | 364 mm | 370 mm | 381 mm | 386 mm | 400 mm | 414 mm |
| Top Tube Length | 502 mm | 522 mm | 542 mm | 557 mm | 577 mm | 602 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 111 mm | 126 mm | 141 mm | 161 mm | 180 mm | 201 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 968 mm | 971 mm | 987 mm | 993 mm | 1012 mm | 1033 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 67 mm |
| Standover Height | 722 mm | 737 mm | 752 mm | 772 mm | 792 mm | 808 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |

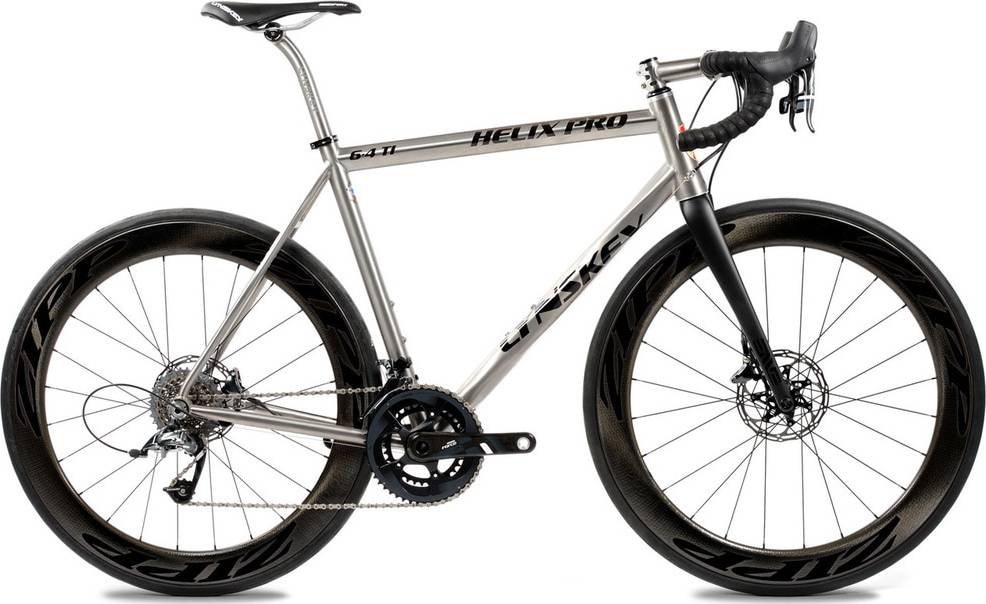

Model Overview
Helix Pro SRAM Red 22 Hydraulic Disc is part of the Lynskey Helix model. Lynskey launched 111 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Lynskey Helix Sport Shimano 105 Mechanical Disc 2019 has a starting price of 2850$. Lynskey Helix Pro Limited Edition Shimano 105 Mechanical Disc 2019 on the other hand is the most expensive at 3250$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Helix Pro SRAM Red 22 Hydraulic Disc components
Fork material
Helix Pro SRAM Red 22 Hydraulic Disc has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Lynskey Helix Pro SRAM Red 22 Hydraulic Disc 2019, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Lynskey Helix Pro SRAM Red 22 Hydraulic Disc has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
