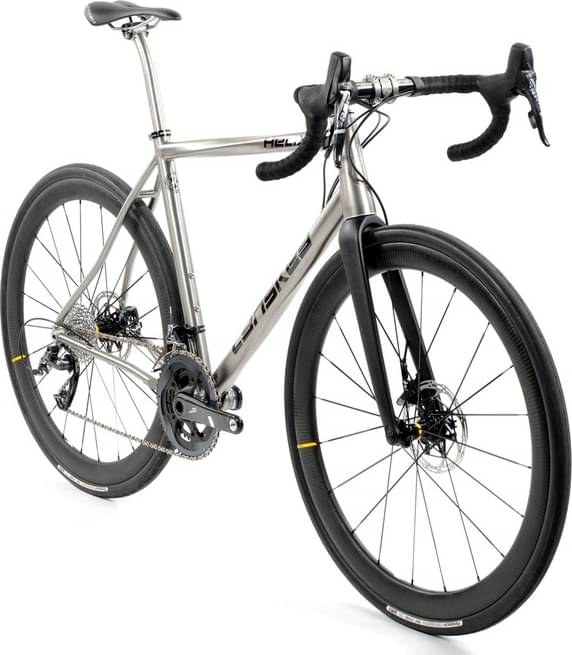

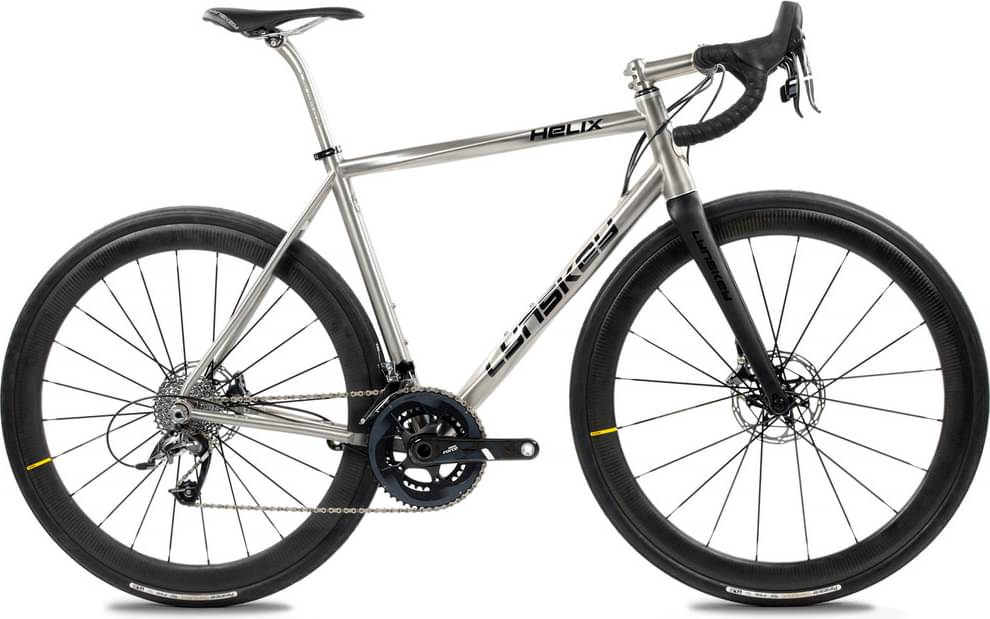

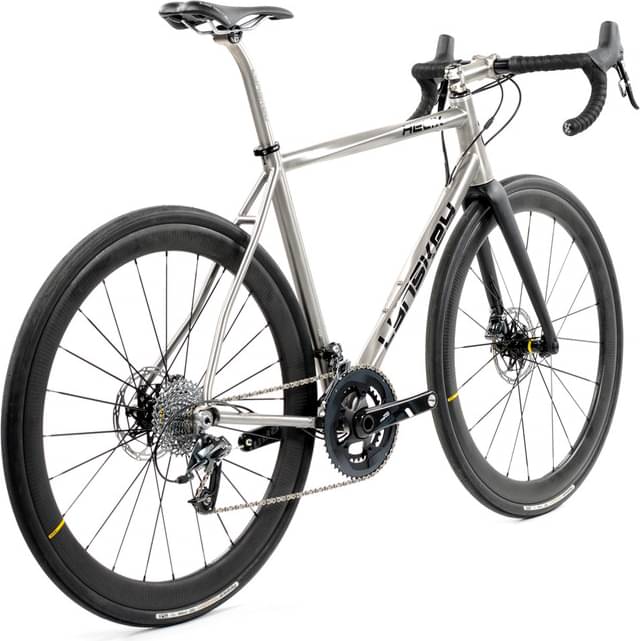

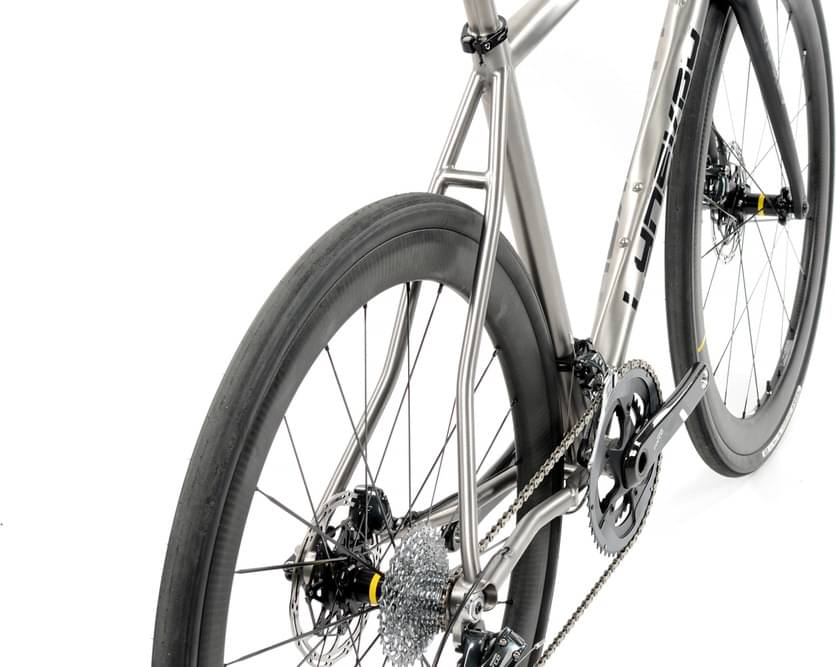

Lynskey Helix Shimano Ultegra Di2 2022
2022 Road
Estimate price |
5,360$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

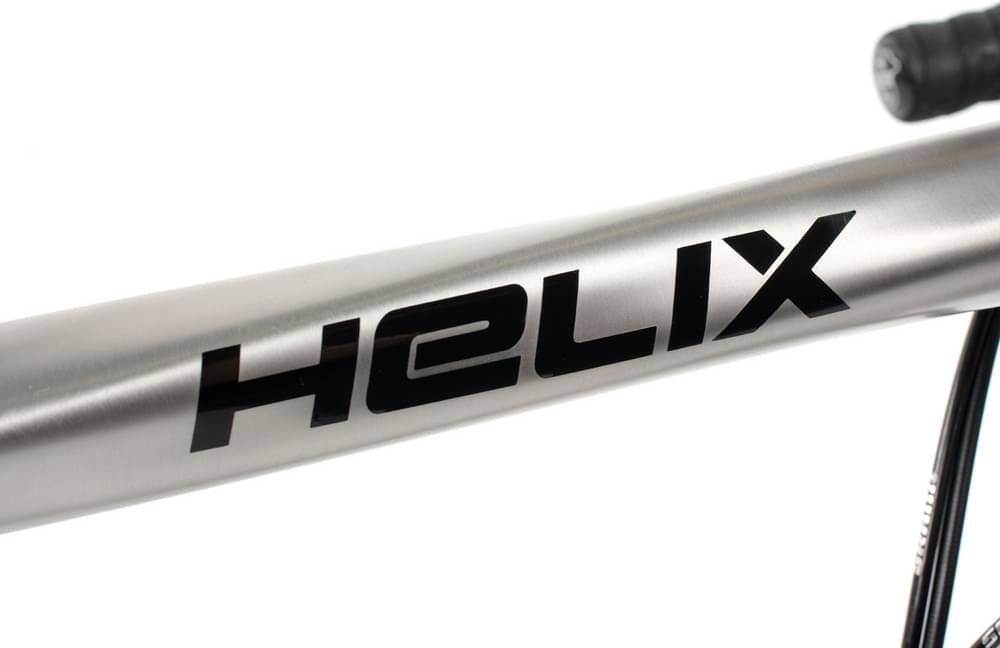

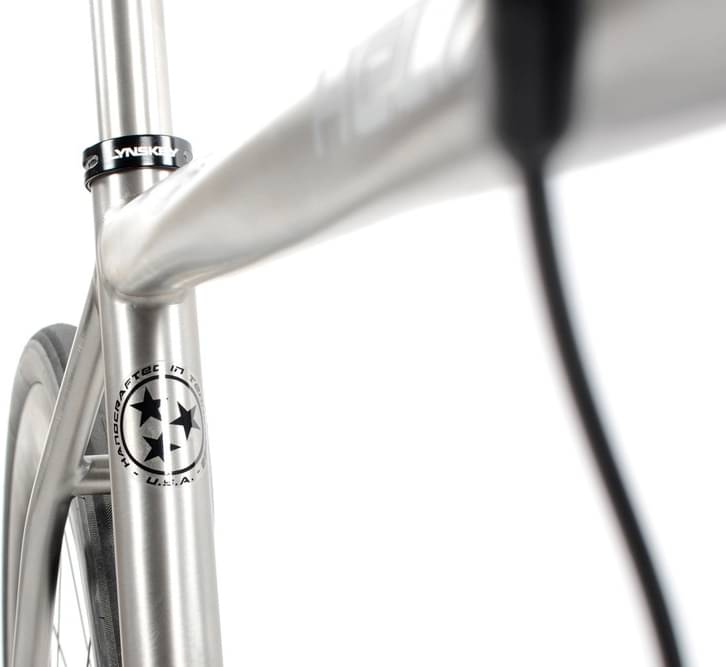

Frame Titanium -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 157cm
SM
160cm - 165cm
MD
167cm - 172cm
MD/LG
175cm - 180cm
LG
182cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components

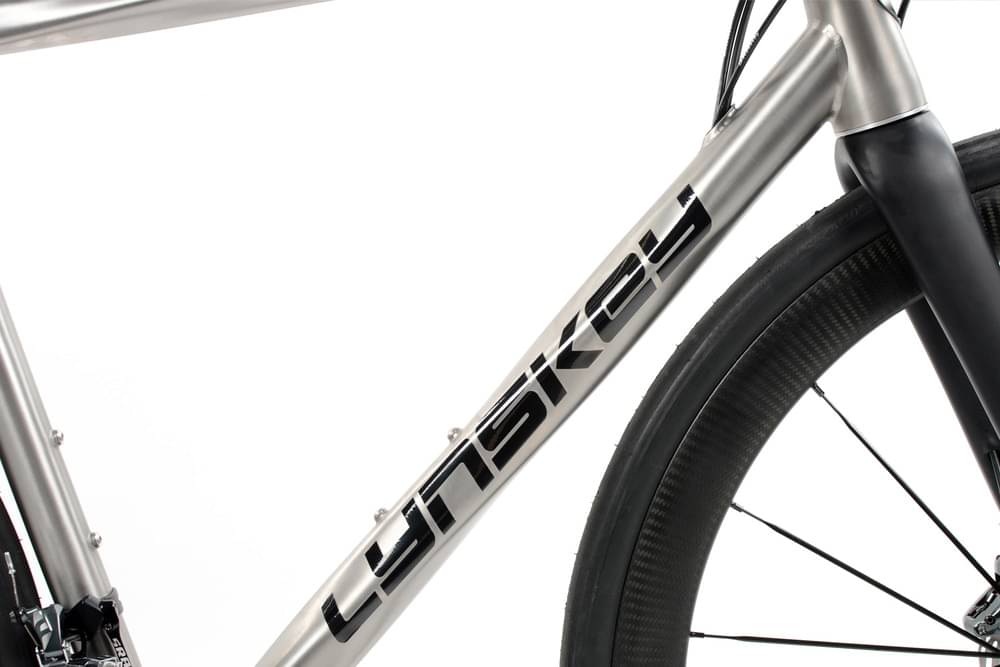

Frame
Frame
Titanium

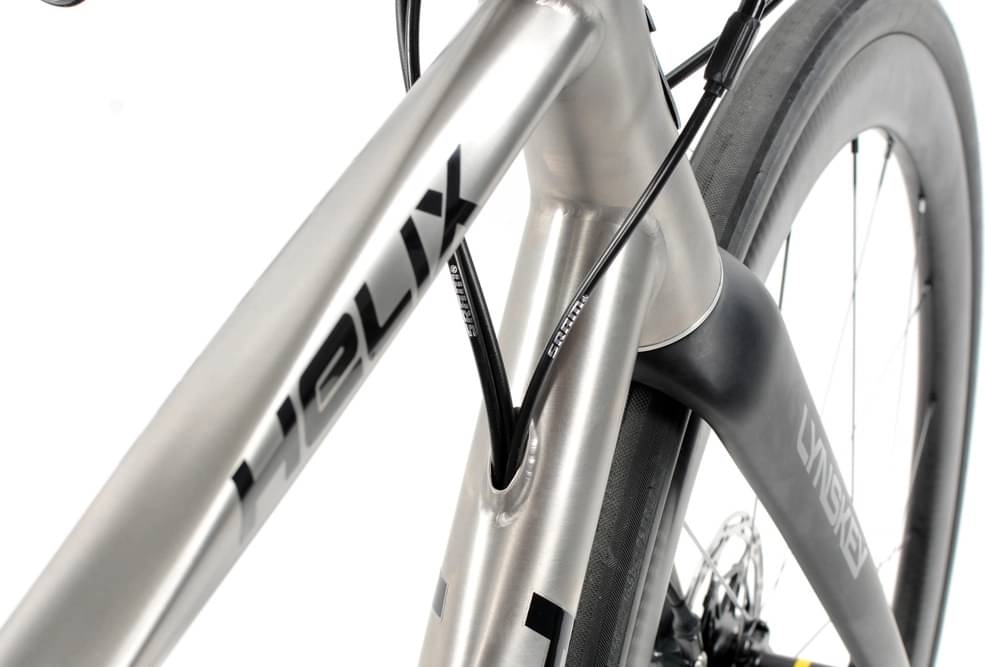

Suspension Fork
Lynskey Pro Road Carbon #5 Fork w/ Axle
Drivetrain

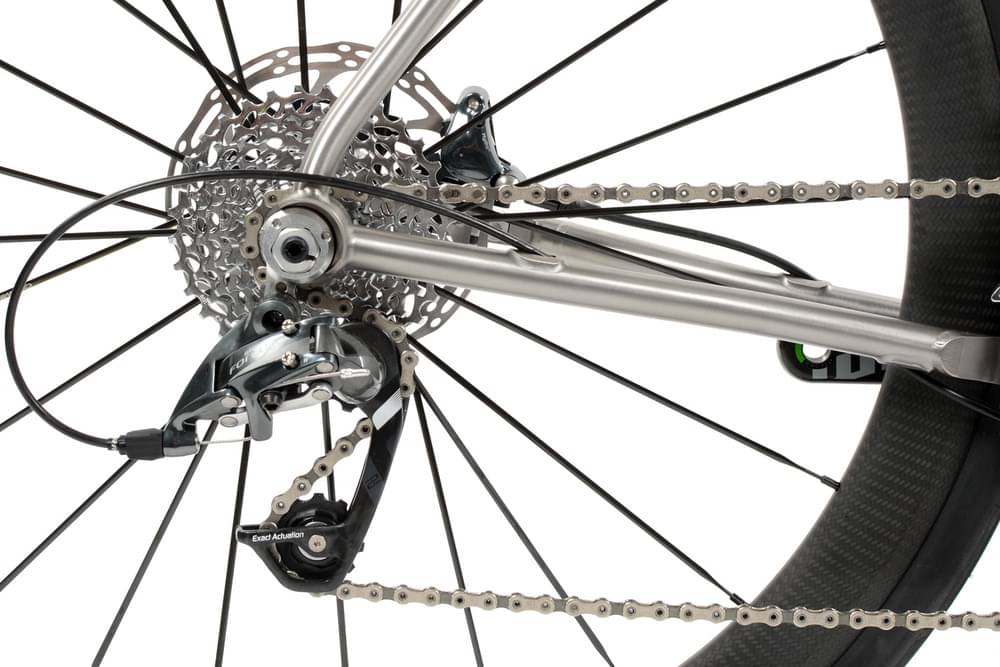

Rear Derailleur
Shimano Ultegra R8150 Di2 12 Speed Rear Derailleur GS Cage

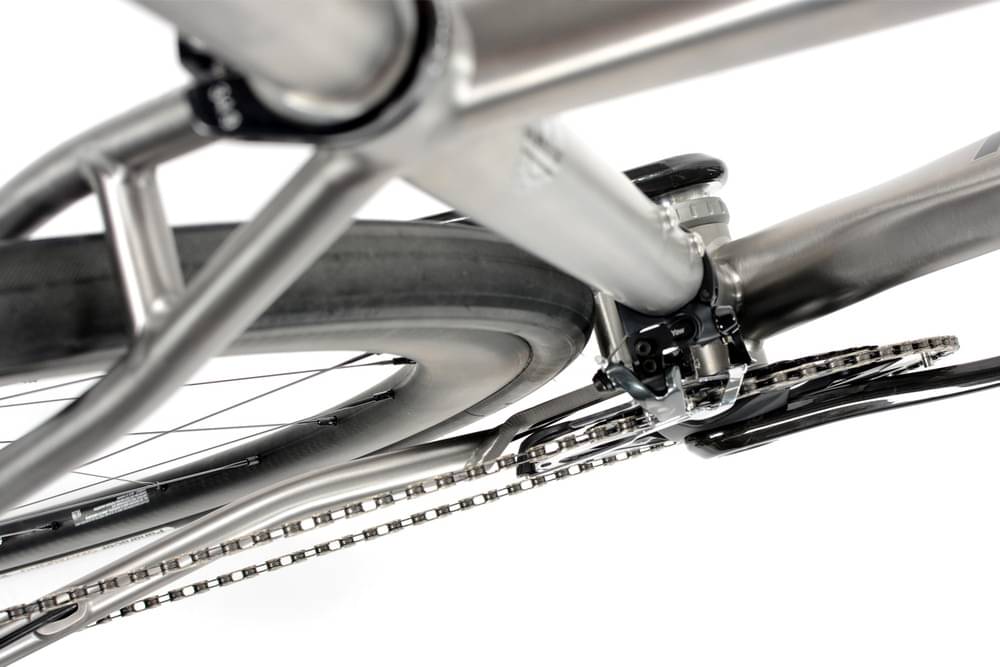

Front Derailleur
Shimano Ultegra R8150 Di2 2x12 Speed Braze-on Front Derailleur
Shift Levers
Optional: Please select preferred setup.

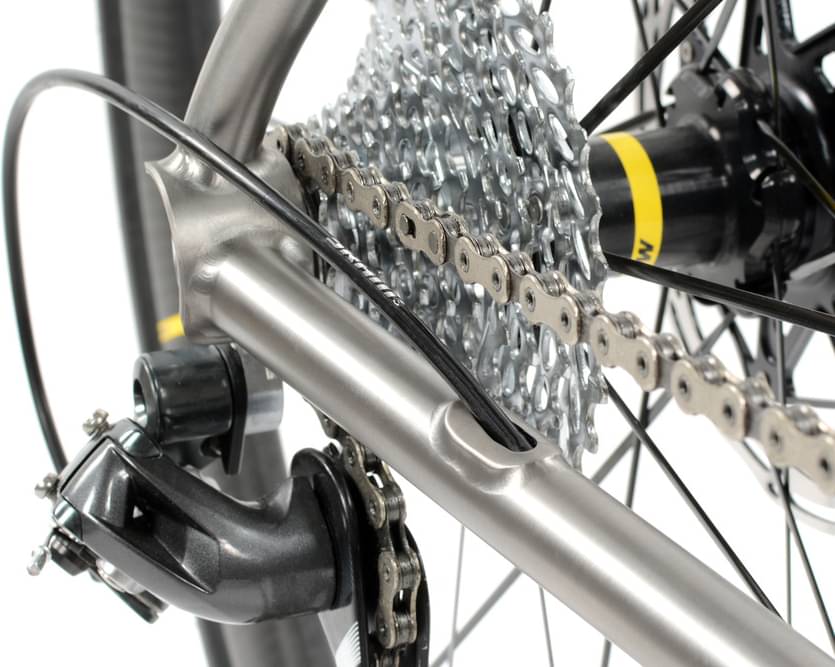

Cassette
Shimano Ultegra 8100 12 Speed Road Cassette 11-34t

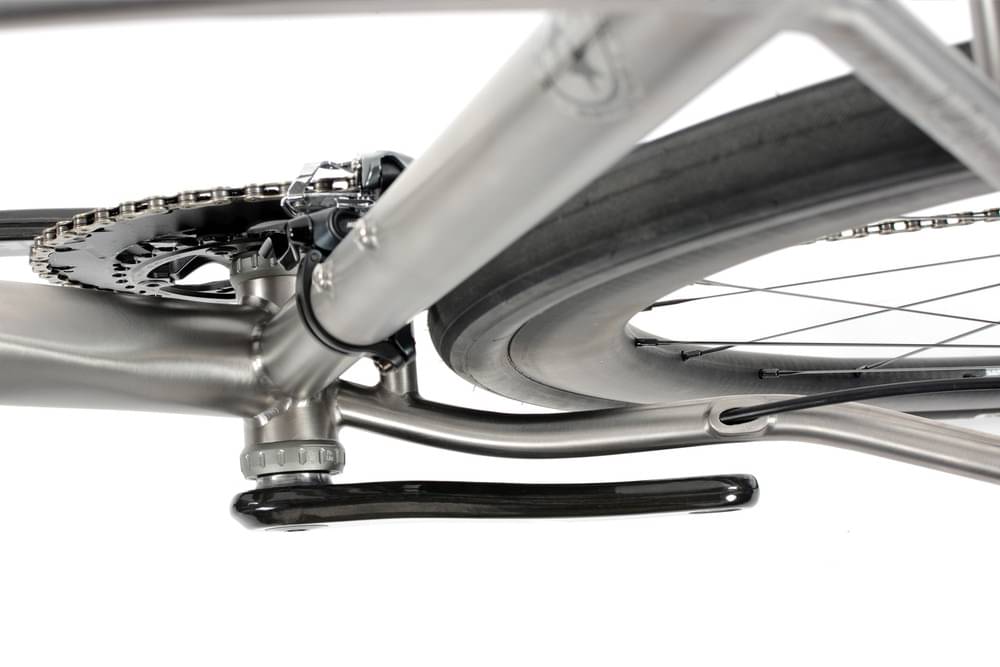

Crank
Shimano Ultegra 8100 12-SPD CRANKSET

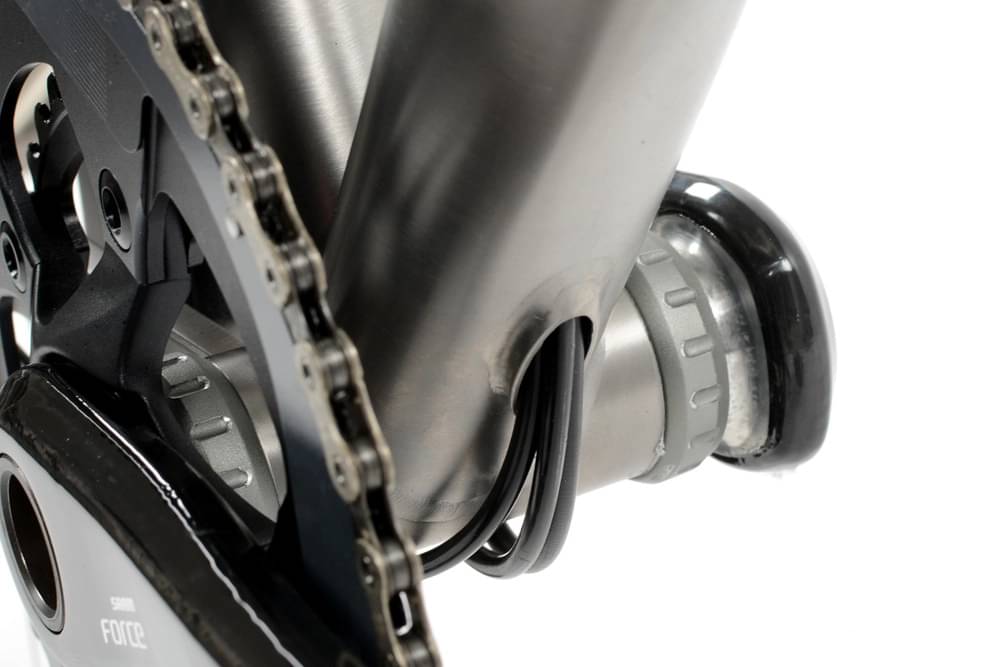

Bottom Bracket
Shimano BBR60 68mm English Threaded Bottom Bracket

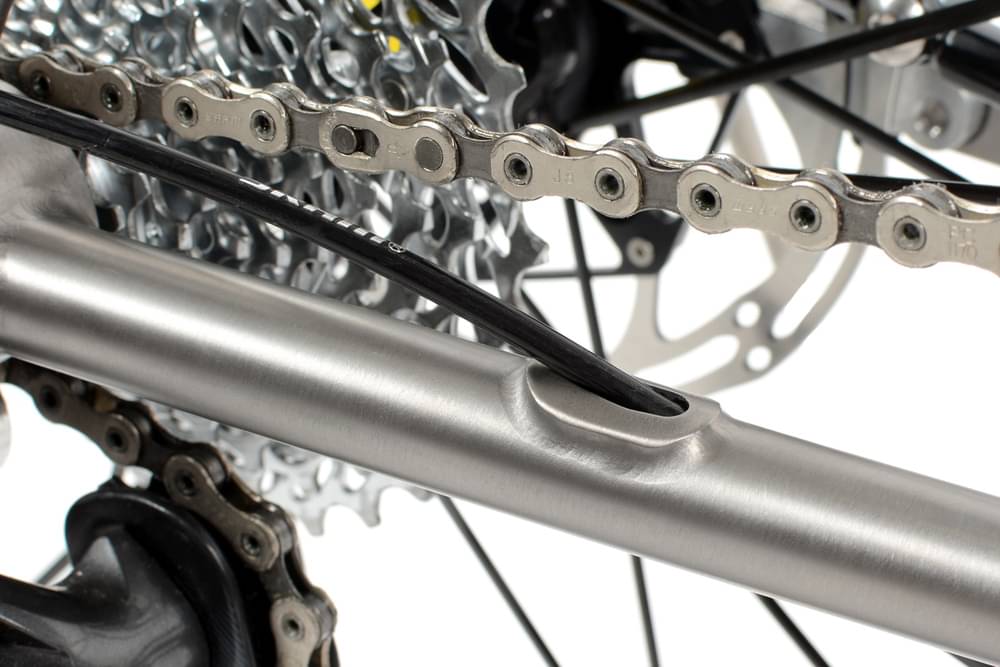

Chain
Shimano CN-M8100 QL Chain - 12 Speed
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Valkyrie Elite 700x30c
Brakes
Brakes
Shimano ST-R8170 2x11 Speed STI Right Di2 Shifter Set (w/ BR8170 FM Caliper)

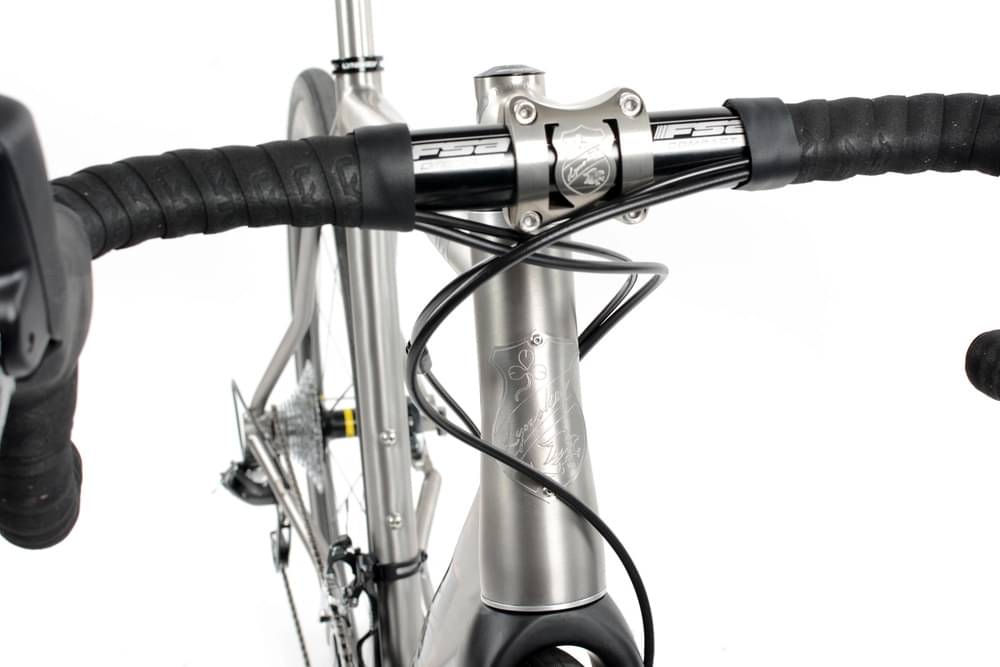

Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.52 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 269 mm |
| Front Center | 562 mm | 569 mm | 581 mm | 589 mm | 603 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 59 mm | 59 mm | 55 mm | 55 mm | 55 mm |
| Stack | 512 mm | 534 mm | 548 mm | 567 mm | 586 mm | 606 mm |
| Reach | 351 mm | 361 mm | 368 mm | 374 mm | 383 mm | 388 mm |
| Top Tube Length | 492 mm | 517 mm | 533 mm | 549 mm | 565 mm | 582 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 141 mm | 156 mm | 176 mm | 196 mm | 218 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 958 mm | 966 mm | 977 mm | 986 mm | 1001 mm | 1013 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 67 mm |
| Standover Height | 730 mm | 742 mm | 762 mm | 782 mm | 798 mm | 822 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 160 cm | 167 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 157 cm | 165 cm | 172 cm | 180 cm | 188 cm | cm |
Model Overview
Helix Shimano Ultegra Di2 belongs to the Lynskey Helix model. There are 111 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Lynskey Helix Shimano Ultegra 2022 is the most affordable bike of this model and has a price of 5360$. On the other hand, Lynskey Helix Pro Shimano Ultegra 2022, is the most expensive and costs 5660$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Lynskey Helix Shimano Ultegra Di2 price was 5360$. If we compare this with the average Race bike cost we notice that the price is 60% more expensive.
Overview of components

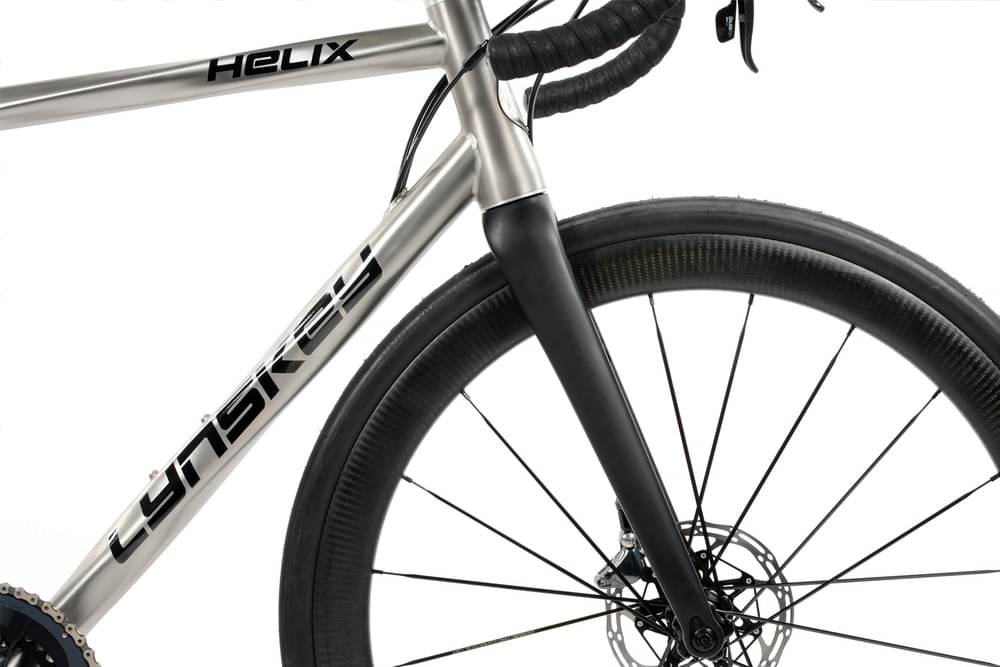

Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Lynskey Helix Shimano Ultegra Di2 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
