Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Ultegra, RED eTAP -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro Road Carbon #5 Fork w/ Axle
Drivetrain
Rear Derailleur
Shimano Ultegra 8000 11 speed Rear Derailleur GS cage
Front Derailleur
Shimano Ultegra 8000 Double 11 Speed Clamp-on Front Derailleur
Shift Levers
Yes: Shimano Di2, SRAM Etap (Removable Guides)
Cassette
Shimano Ultegra 8000 11 speed road cassette 11-34t
Crank
Shimano Ultegra 8000 11-SPD CRANKSET
Bottom Bracket
Shimano BBR60 68mm English Threaded Bottom Bracket
Chain
Shimano CN-HG701 QL Chain - 11 Speed
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Valkyrie 700x28
Brakes
Brakes
Shimano ST-R8020 2x11 Speed STI Right Shifter Set (W/ BR-R8070 FM Caliper)
Disk Rotors
Shimano Ultegra RT800S 160mm Centerlock IceTech Disc Brake Rotor
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.52 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 269 mm |
| Front Center | 562 mm | 569 mm | 581 mm | 589 mm | 603 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 59 mm | 59 mm | 55 mm | 55 mm | 55 mm |
| Stack | 512 mm | 534 mm | 548 mm | 567 mm | 586 mm | 606 mm |
| Reach | 351 mm | 361 mm | 368 mm | 374 mm | 383 mm | 388 mm |
| Top Tube Length | 492 mm | 517 mm | 533 mm | 549 mm | 565 mm | 582 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 141 mm | 156 mm | 176 mm | 196 mm | 218 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 958 mm | 966 mm | 977 mm | 986 mm | 1001 mm | 1013 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 67 mm |
| Standover Height | 730 mm | 742 mm | 762 mm | 782 mm | 798 mm | 822 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |

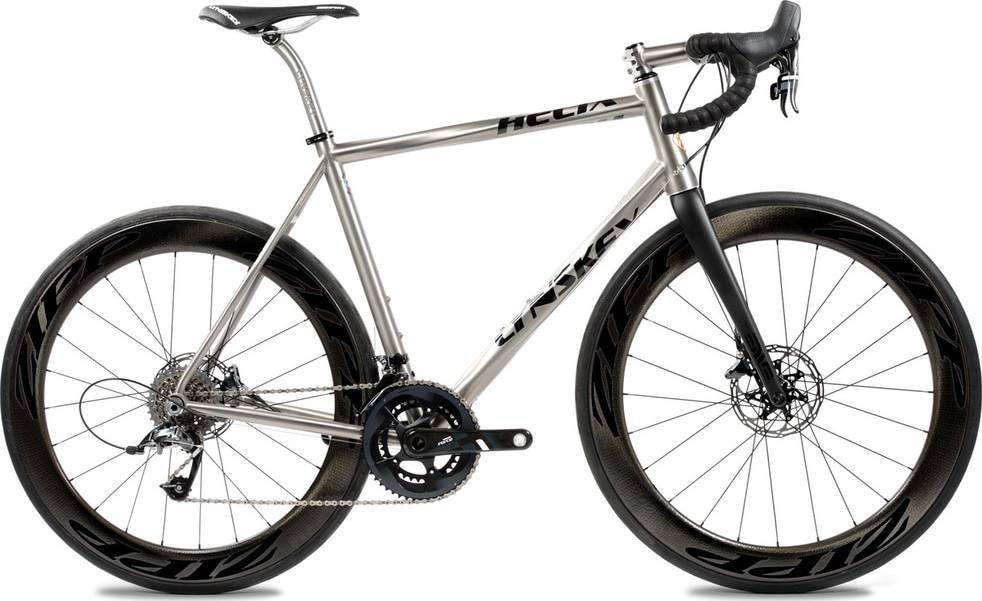

About this model
Helix Sport Shimano Ultegra Hydraulic Disc completes the Lynskey Helix model. There are 111 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Lynskey Helix Sport Shimano 105 Mechanical Disc 2019 has a starting price of 2850$. Lynskey Helix Pro Limited Edition Shimano 105 Mechanical Disc 2019 on the other hand is the most expensive at 3250$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Helix Sport Shimano Ultegra Hydraulic Disc components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Helix Sport Shimano Ultegra Hydraulic Disc model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lynskey Helix Sport Shimano Ultegra Hydraulic Disc is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
