Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset RED, RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro Road Carbon #5 Fork w/ Axle
Drivetrain
Rear Derailleur
SRAM Red WiFli Rear Derailleur, 11 speed, Medium Cage
Front Derailleur
SRAM Red Yaw, Braze-on Front Derailler
Shift Levers
Yes: Shimano Di2, SRAM Etap (Removable Guides)
Cassette
SRAM Red XG-1190 11-SPEED CASSETTE 11-32t
Crank
SRAM Red GXP CRANKSET 50/34t
Bottom Bracket
SRAM GXP Team Bottom Bracket - BSA 68mm English threaded
Chain
SRAM PC-1170 11 Speed Chain
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Valkyrie 700x28
Brakes
Brakes
SRAM Red HRD Front Shifter w/Caliper
Disk Rotors
SRAM Centerline 160mm Rotor
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.52 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 269 mm |
| Front Center | 562 mm | 569 mm | 581 mm | 589 mm | 603 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 59 mm | 59 mm | 55 mm | 55 mm | 55 mm |
| Stack | 512 mm | 534 mm | 548 mm | 567 mm | 586 mm | 606 mm |
| Reach | 351 mm | 361 mm | 368 mm | 374 mm | 383 mm | 388 mm |
| Top Tube Length | 492 mm | 517 mm | 533 mm | 549 mm | 565 mm | 582 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 141 mm | 156 mm | 176 mm | 196 mm | 218 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 958 mm | 966 mm | 977 mm | 986 mm | 1001 mm | 1013 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 67 mm |
| Standover Height | 730 mm | 742 mm | 762 mm | 782 mm | 798 mm | 822 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
About this model

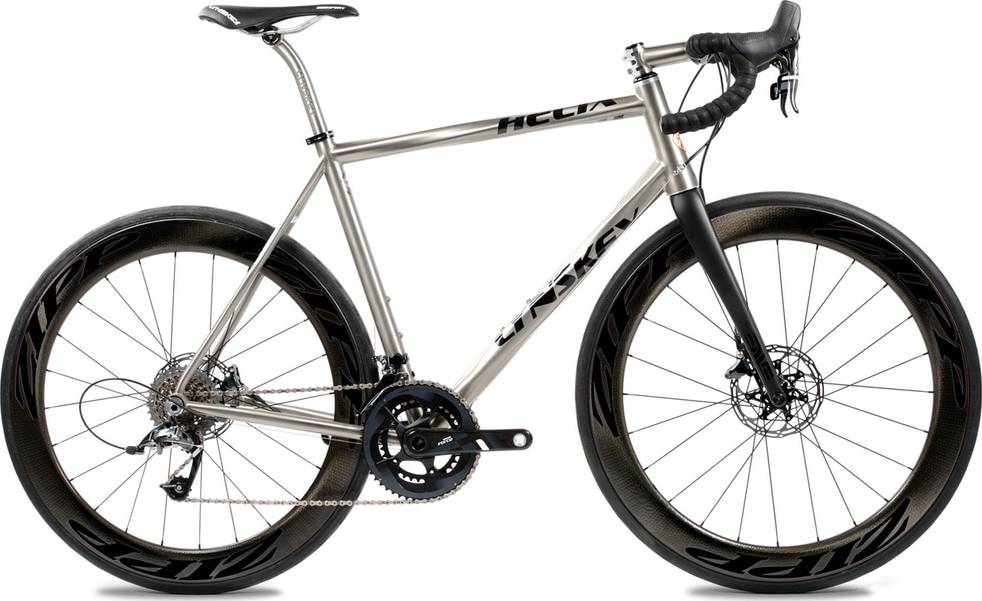

Helix Sport SRAM Red 22 Hydraulic Disc belongs to the Lynskey Helix model. Lynskey launched 111 bikes of this model so far. You can easily view all of the Lynskey Helix bikes models from 2019, here.
Model range prices
The most economical model, the Lynskey Helix Sport Shimano 105 Mechanical Disc 2019 has a starting price of 2850$. Lynskey Helix Pro Limited Edition Shimano 105 Mechanical Disc 2019 on the other hand is the most expensive at 3250$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
Helix Sport SRAM Red 22 Hydraulic Disc has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Helix Sport SRAM Red 22 Hydraulic Disc 2019 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Helix Sport SRAM Red 22 Hydraulic Disc comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
