Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Force 22 -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro Road Carbon #5 Fork w/ Axle
Drivetrain
Rear Derailleur
SRAM Force 22 WiFli Rear Derailleur, 11 speed, Medium Cage
Front Derailleur
SRAM Force 22 Yaw, Braze-on Front Derailler
Shift Levers
Optional: Please select preferred setup.
Cassette
SRAM NX PG-1170 11-SPEED CASSETTE
Crank
SRAM FORCE 22 GXP CRANKSET
Bottom Bracket
SRAM GXP Team Bottom Bracket - BSA 68mm English threaded
Chain
SRAM PC-1170 11 Speed Chain
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Valkyrie Elite 700x30c
Brakes
Brakes
SRAM Force 22 HRD Front Shifter w/Caliper
Disk Rotors
SRAM Centerline 160mm Rotor
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.52 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 269 mm |
| Front Center | 562 mm | 569 mm | 581 mm | 589 mm | 603 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 59 mm | 59 mm | 55 mm | 55 mm | 55 mm |
| Stack | 512 mm | 534 mm | 548 mm | 567 mm | 586 mm | 606 mm |
| Reach | 351 mm | 361 mm | 368 mm | 374 mm | 383 mm | 388 mm |
| Top Tube Length | 492 mm | 517 mm | 533 mm | 549 mm | 565 mm | 582 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 141 mm | 156 mm | 176 mm | 196 mm | 218 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 958 mm | 966 mm | 977 mm | 986 mm | 1001 mm | 1013 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 67 mm |
| Standover Height | 730 mm | 742 mm | 762 mm | 782 mm | 798 mm | 822 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview

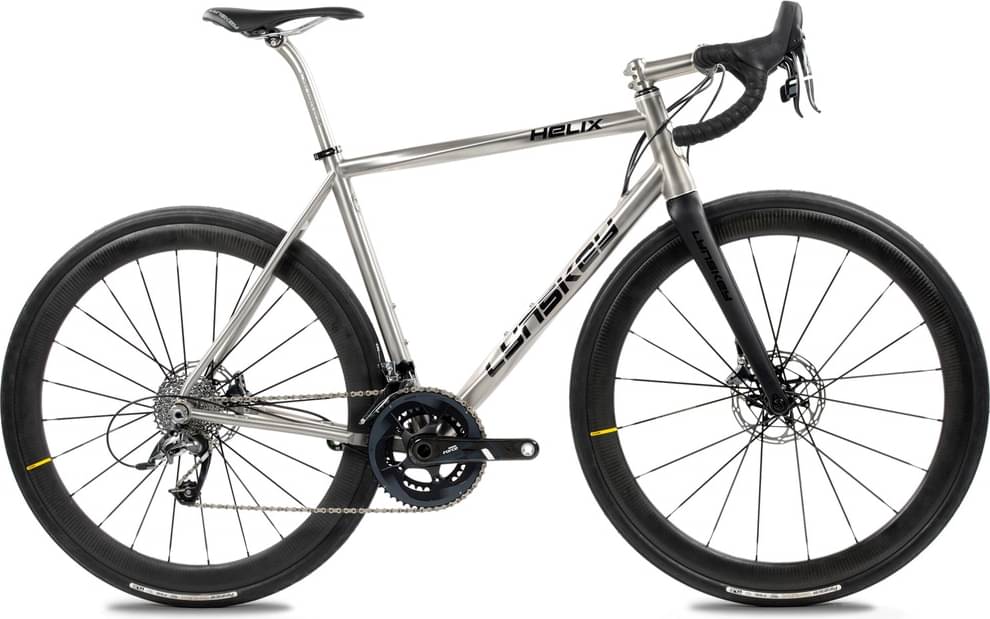

Helix SRAM Force is part of the Lynskey Helix model. 111 bikes variations carry this model name so far. You can easily view all of the Lynskey Helix bikes models from 2021, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Helix SRAM Force bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lynskey Helix SRAM Force is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Helix SRAM Force comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
