Lynskey Helix SRAM Force 22 2021

2021 Road
Open compare Use advisor

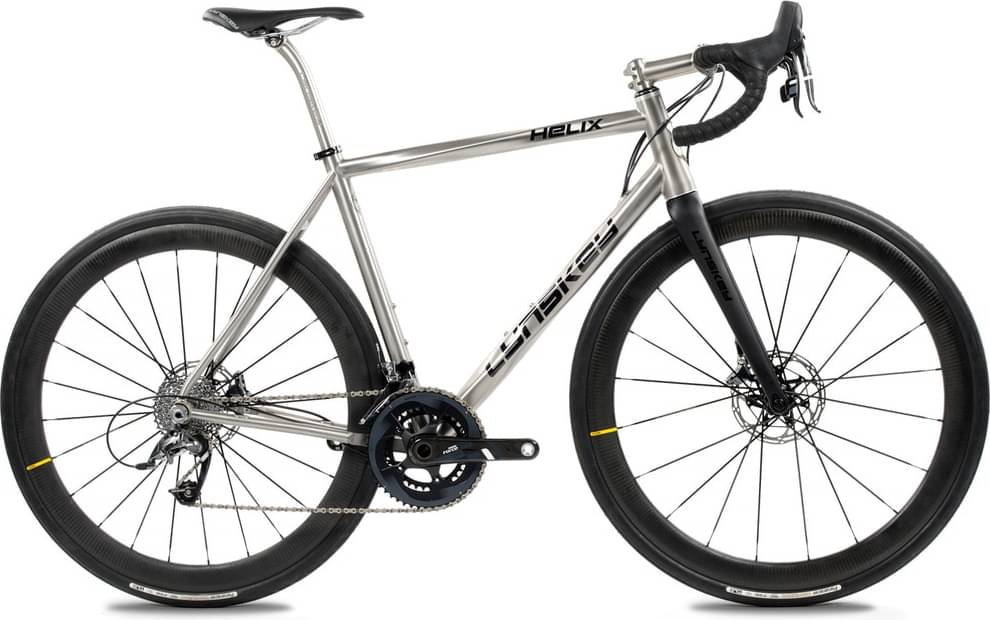

Lynskey Helix Sram Force 22 2021

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Titanium
  • Wheels 700c
  • Groupset Force 22
  • Suspension Rigid
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • XS

    155cm - 168cm

  • SM

    163cm - 174cm

  • MD

    170cm - 181cm

  • MD/LG

    175cm - 187cm

  • LG

    181cm - 193cm

  • XL

    188cm - 200cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Titanium

Suspension Fork

Lynskey Pro Road Carbon #6 Fork w/ Axle

Drivetrain

Rear Derailleur

SRAM Force 22 WiFli Rear Derailleur, 11 speed, Medium Cage

Front Derailleur

SRAM Force 22 Yaw, Braze-on Front Derailler

Shift Levers

Optional: Please select preferred setup.

Cassette

SRAM NX PG-1170 11-SPEED CASSETTE 11-32t

Crank

SRAM FORCE 22 GXP CRANKSET

Bottom Bracket

SRAM GXP Team Bottom Bracket - BSA 68mm English threaded

Chain

SRAM PC-1170 11 Speed Chain

Wheels

Rims

Vision Team 30 Disc

Tires

Kenda Valkyrie Elite 700x30c

Brakes

Brakes

SRAM Force 22 HRD Front Shifter w/Caliper

Disk Rotors

SRAM Centerline 160mm Rotor

Cockpit

Stem

FSA Omega Stem +/- 6° Rise

Handlebar

FSA Omega Compact Alloy Handlebar

Headset

Cane Creek 40 IS 42/28.6- IS 52/40

Seat

Saddle

Lynskey Pro Saddle - Blk

Seatpost

FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDMD/LGLGXL
Stack Reach Ratio
1.46 mm1.48 mm1.49 mm1.52 mm1.53 mm1.56 mm
Bottom Bracket Height
266 mm266 mm266 mm268 mm268 mm269 mm
Front Center
562 mm569 mm581 mm589 mm603 mm615 mm
Rake
45 mm45 mm45 mm45 mm45 mm45 mm
Trail
65 mm59 mm59 mm55 mm55 mm55 mm
Stack
512 mm534 mm548 mm567 mm586 mm606 mm
Reach
351 mm361 mm368 mm374 mm383 mm388 mm
Top Tube Length
492 mm517 mm533 mm549 mm565 mm582 mm
Seat Tube Angle
75 °74 °73.5 °73 °73 °72.5 °
Seat Tube Length
460 mm480 mm500 mm520 mm540 mm560 mm
Head Tube Angle
71.5 °72.5 °72.5 °73 °73 °73 °
Head Tube Length
120 mm141 mm156 mm176 mm196 mm218 mm
Chainstay Length
407 mm407 mm407 mm407 mm407 mm407 mm
Wheelbase
958 mm966 mm977 mm986 mm1001 mm1013 mm
Bottom Bracket Drop
70 mm70 mm70 mm68 mm68 mm67 mm
Standover Height
730 mm742 mm762 mm782 mm798 mm822 mm
Wheels700700700700700700
Rider Min Height155 cm163 cm170 cm175 cm181 cm188 cm
Rider Max Height168 cm174 cm181 cm187 cm193 cm200 cm

About this model

Helix SRAM Force 22 is a Lynskey Helix model. Lynskey released 111 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.

Safety

When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.

Race bikes average price

Our math shows that the average cost of a dependable Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.

Overview of components

Fork material

The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.

Wheels

As for the wheels, Lynskey Helix SRAM Force 22 2021, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.

Brakes

We ride faster and faster, so a good braking system is essential on a bike nowadays. The Helix SRAM Force 22 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.

Sizes

Helix SRAM Force 22 comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
