Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset RED -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro Road Carbon #6 Fork w/ Axle
Drivetrain
Rear Derailleur
SRAM Red WiFli Rear Derailleur, 11 speed, Medium Cage
Front Derailleur
SRAM Red Yaw, Braze-on Front Derailler
Shift Levers
Optional: Please select preferred setup.
Cassette
SRAM Red XG-1190 11-SPEED CASSETTE 11-32t
Crank
SRAM Red GXP CRANKSET 50/34t
Bottom Bracket
SRAM GXP Team Bottom Bracket - BSA 68mm English threaded
Chain
SRAM PC-1170 11 Speed Chain
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Valkyrie Elite 700x30c
Brakes
Brakes
SRAM Red HRD Front Shifter w/Caliper
Disk Rotors
SRAM Centerline 160mm Rotor
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.52 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 269 mm |
| Front Center | 562 mm | 569 mm | 581 mm | 589 mm | 603 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 59 mm | 59 mm | 55 mm | 55 mm | 55 mm |
| Stack | 512 mm | 534 mm | 548 mm | 567 mm | 586 mm | 606 mm |
| Reach | 351 mm | 361 mm | 368 mm | 374 mm | 383 mm | 388 mm |
| Top Tube Length | 492 mm | 517 mm | 533 mm | 549 mm | 565 mm | 582 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 141 mm | 156 mm | 176 mm | 196 mm | 218 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 958 mm | 966 mm | 977 mm | 986 mm | 1001 mm | 1013 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 67 mm |
| Standover Height | 730 mm | 742 mm | 762 mm | 782 mm | 798 mm | 822 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview

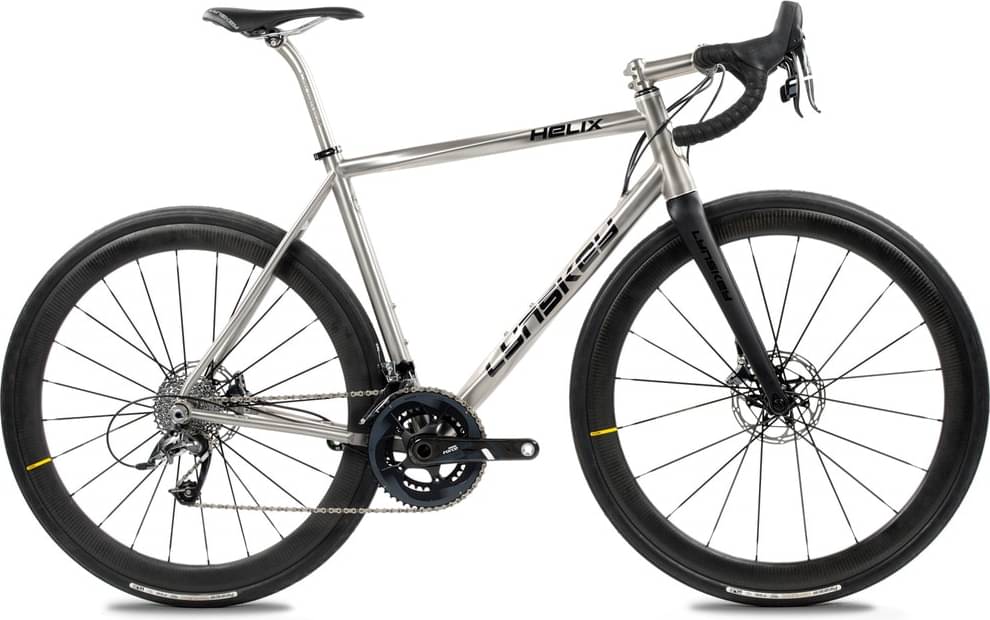

Helix SRAM Red 22 completes the Lynskey Helix model. 111 bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Lynskey Helix SRAM Red 22 2021, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Lynskey Helix SRAM Red 22 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Helix SRAM Red 22 comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
