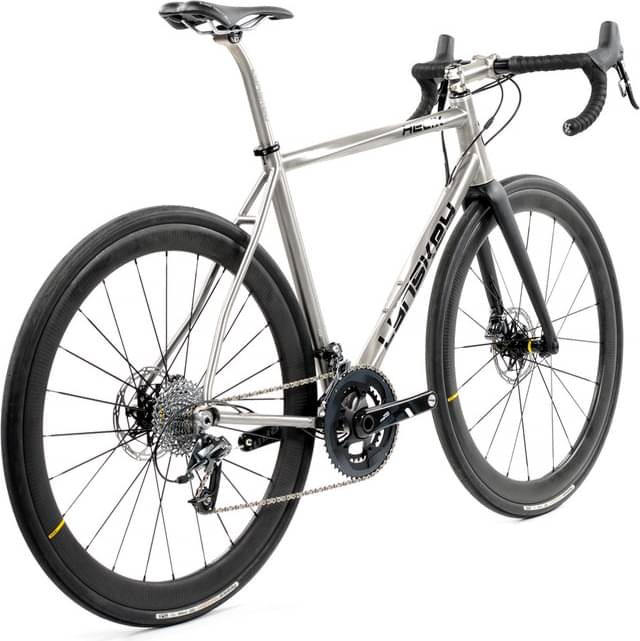

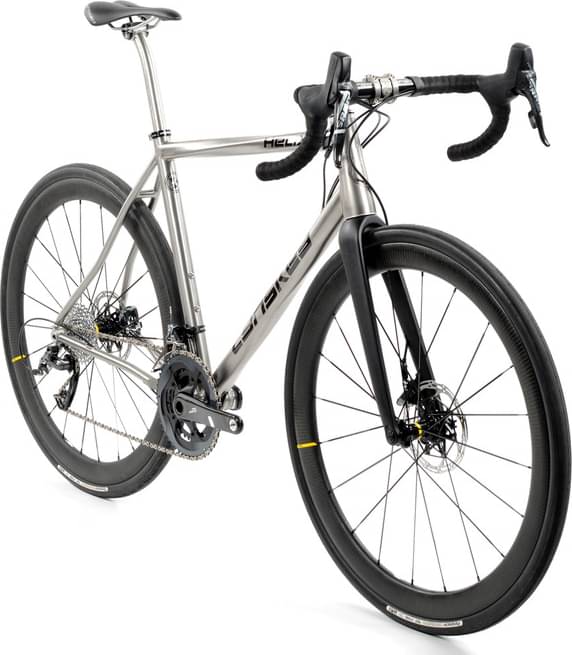

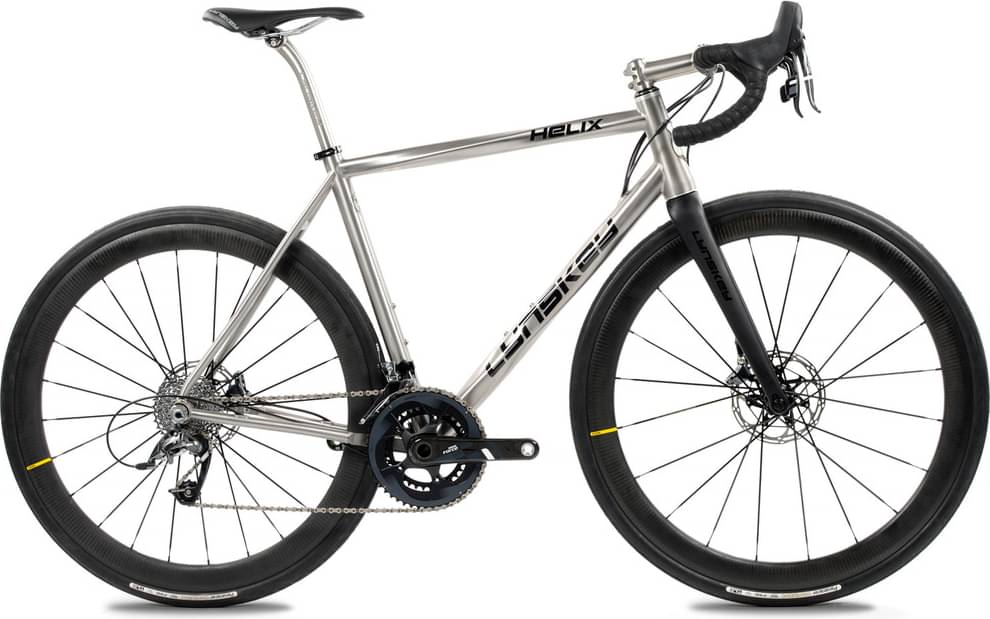

Lynskey Helix SRAM Rival eTap AXS 2022
2022 Road
Estimate price |
5,360$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 157cm
SM
160cm - 165cm
MD
167cm - 172cm
MD/LG
175cm - 180cm
LG
182cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components

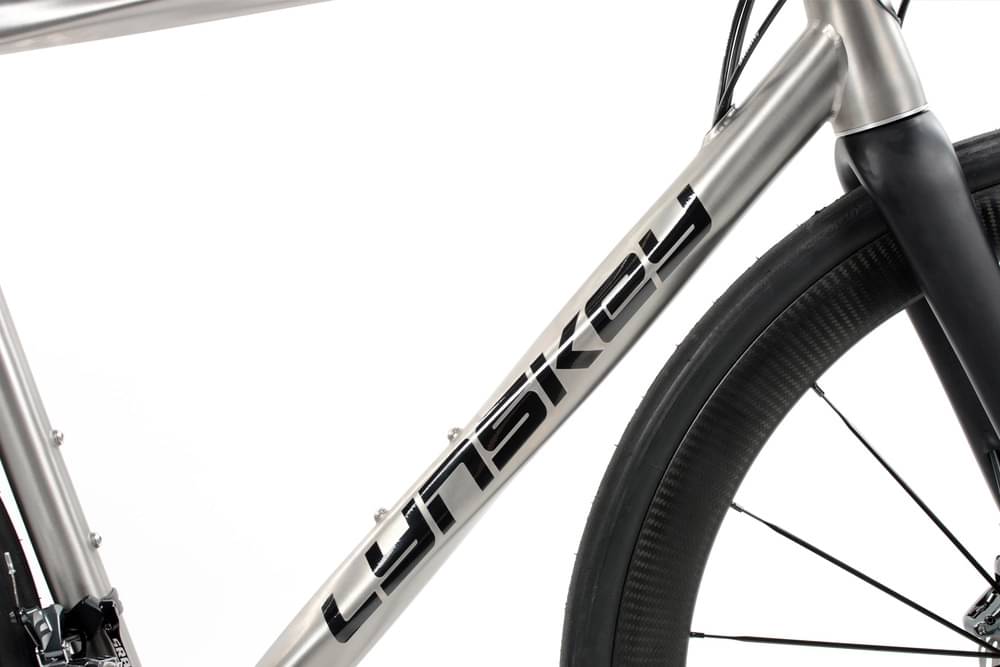

Frame
Frame
Titanium
Suspension Fork
Lynskey Pro Road Carbon #5 Fork w/ Axle
Drivetrain

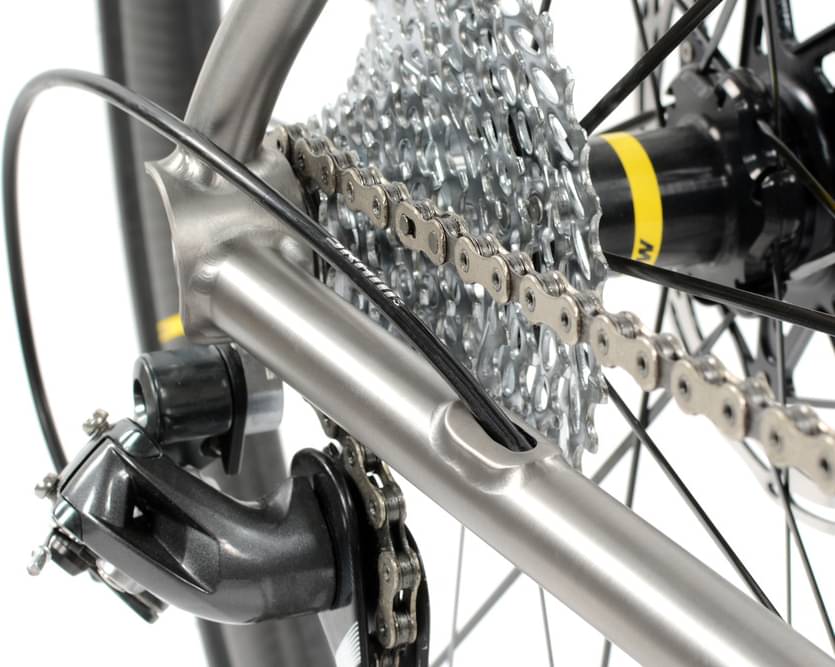

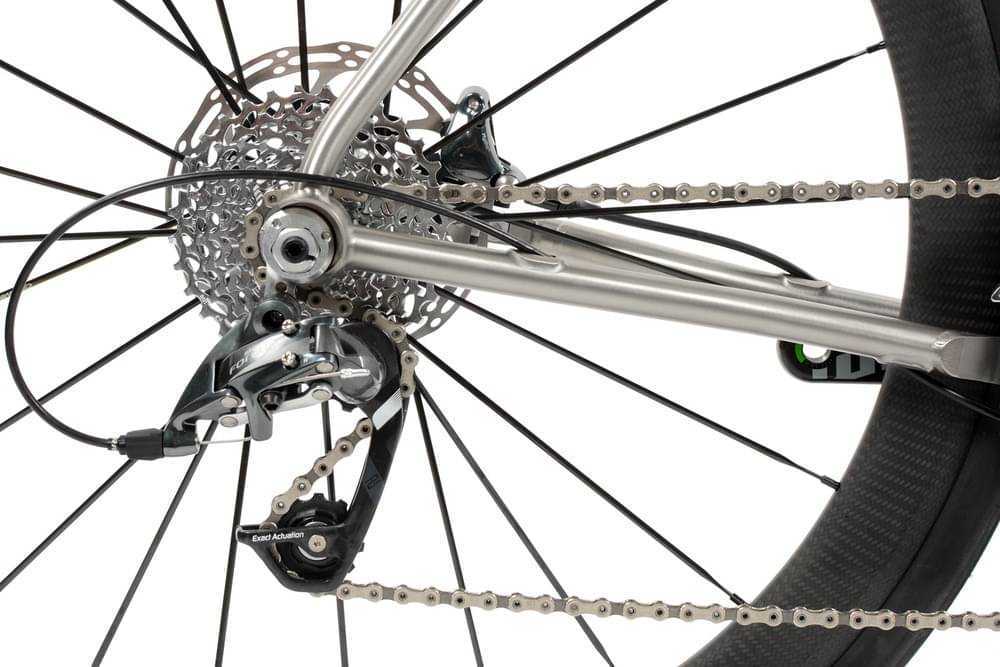

Rear Derailleur
SRAM Rival eTap AXS Rear Derailleur - 36t Max

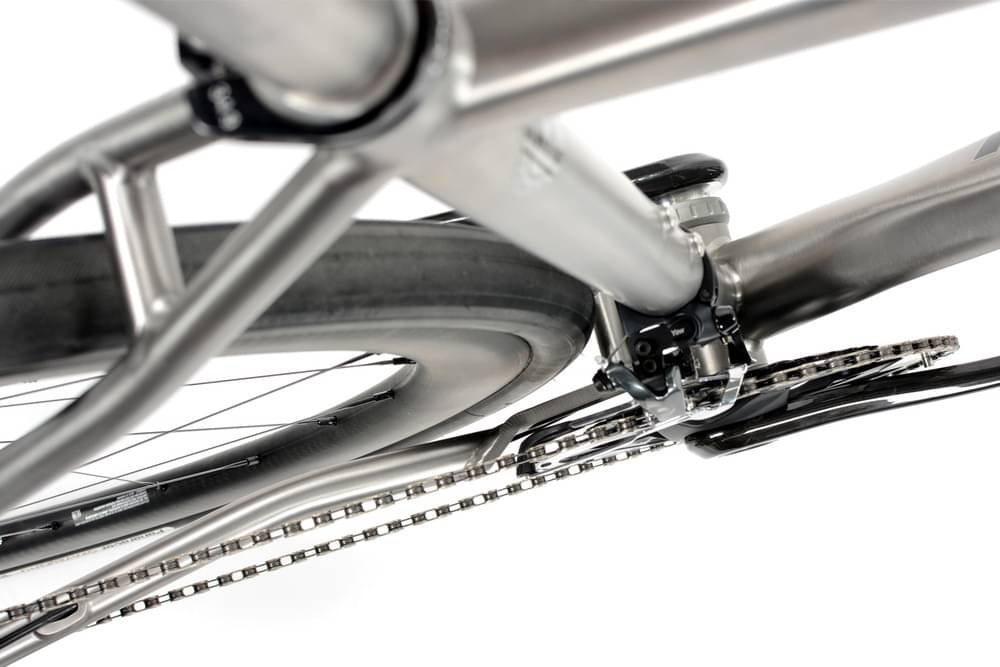

Front Derailleur
SRAM Rival eTap AXS Front Derailleur
Shift Levers
Optional: Please select preferred setup.
Cassette
SRAM XG-1250 12-SPEED CASSETTE 10-36t

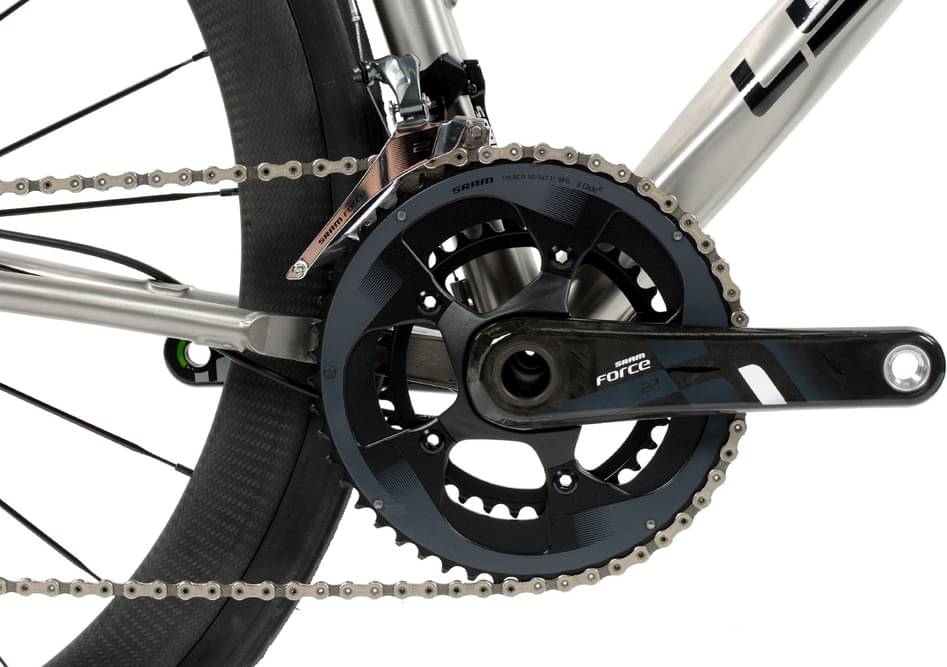

Crank
SRAM Rival AXS 2x12-SPD Crankset

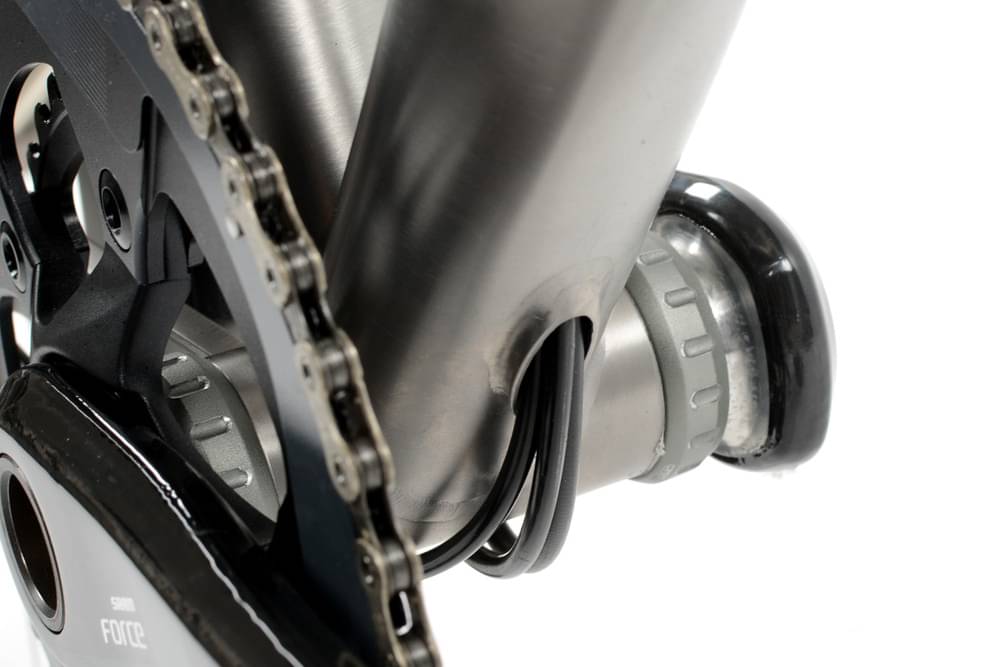

Bottom Bracket
SRAM DUB Bottom Bracket - BSA 68mm English threaded

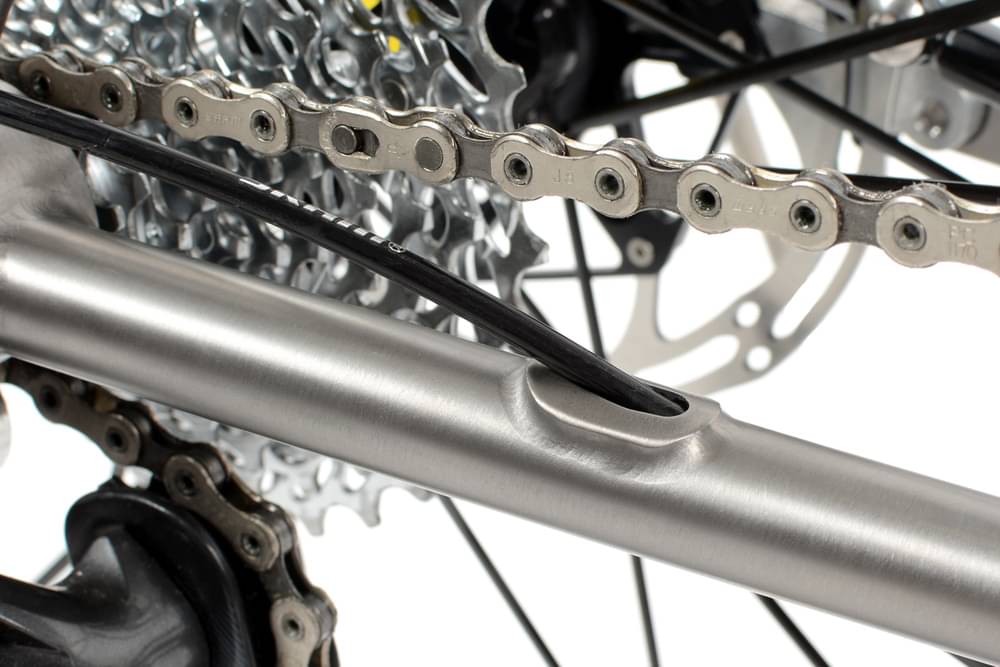

Chain
SRAM Rival D1 Flattop 12 Speed Chain
Wheels
Rims
Vision Team 30 Disc Wheelset
Tires
Kenda Valkyrie Elite, 700x30c
Brakes
Brakes
SRAM Rival eTap AXS HRD Front(left) Shifter w/Caliper
Cockpit

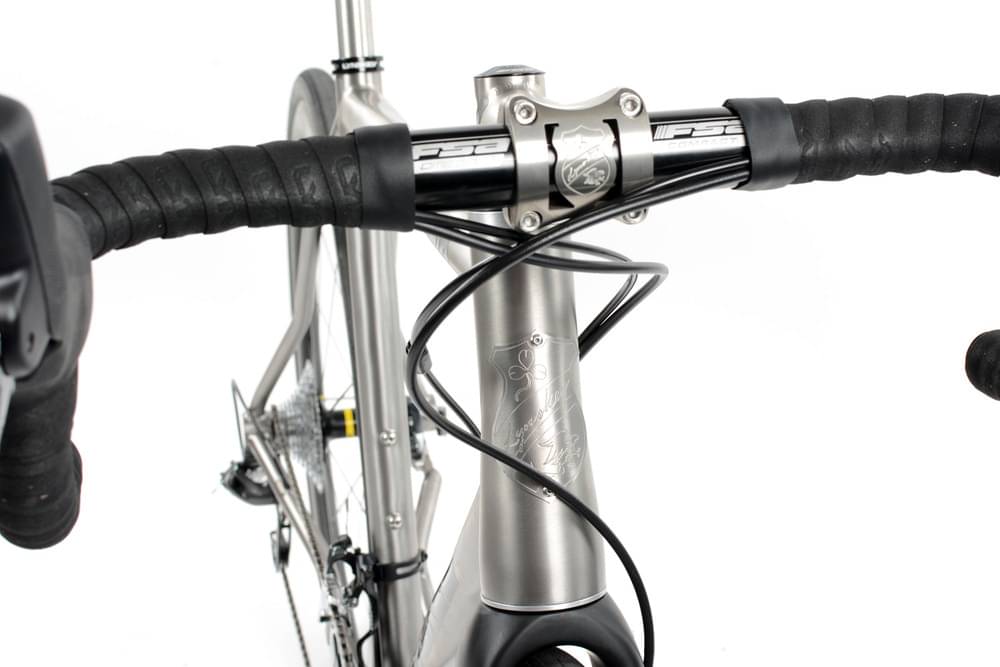

Stem
FSA Omega stem +/- 6° Rise 31.8
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Motor & Battery
Charger
SRAM eTap Battery Charger and Cord
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.52 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 269 mm |
| Front Center | 562 mm | 569 mm | 581 mm | 589 mm | 603 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 59 mm | 59 mm | 55 mm | 55 mm | 55 mm |
| Stack | 512 mm | 534 mm | 548 mm | 567 mm | 586 mm | 606 mm |
| Reach | 351 mm | 361 mm | 368 mm | 374 mm | 383 mm | 388 mm |
| Top Tube Length | 492 mm | 517 mm | 533 mm | 549 mm | 565 mm | 582 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 141 mm | 156 mm | 176 mm | 196 mm | 218 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 958 mm | 966 mm | 977 mm | 986 mm | 1001 mm | 1013 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 67 mm |
| Standover Height | 730 mm | 742 mm | 762 mm | 782 mm | 798 mm | 822 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 160 cm | 167 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 157 cm | 165 cm | 172 cm | 180 cm | 188 cm | cm |
About this model
Helix SRAM Rival eTap AXS completes the Lynskey Helix model. Lynskey launched 111 bikes of this model so far. Take a sneak peek at all Lynskey Helix bikes models from 2022, by clicking here.
Model range prices
Lynskey Helix Shimano Ultegra 2022 is the cheapest bike model and costs 5360$. Lynskey Helix Pro Shimano Ultegra 2022 is the most expensive one and costs 5660$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 5360$. If we compare this with the average Race bike cost we notice that the price is 60% more expensive.
Helix SRAM Rival eTap AXS components

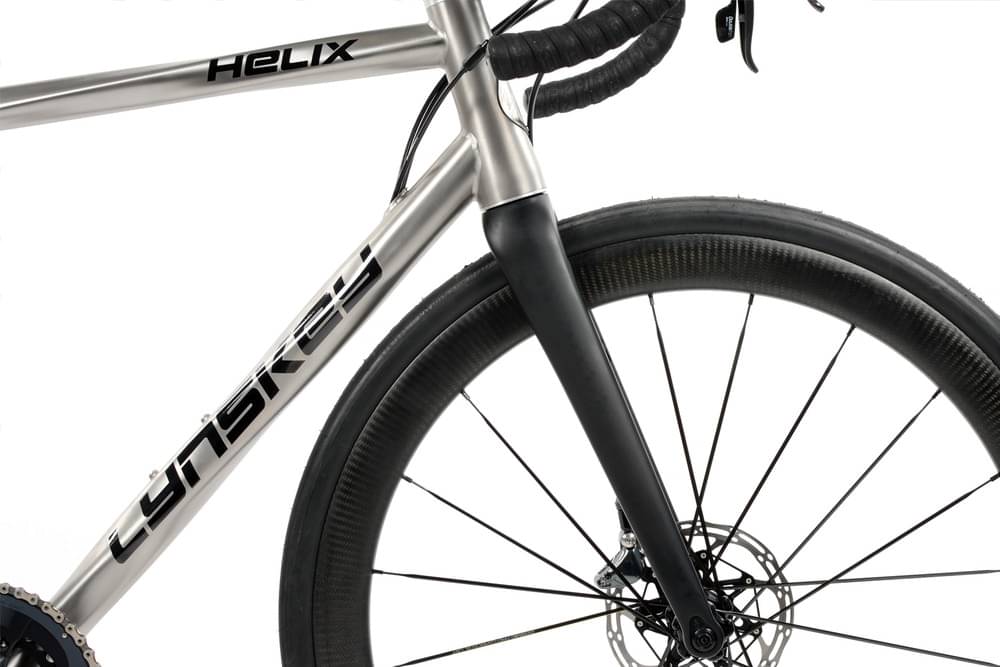

Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Helix SRAM Rival eTap AXS bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Helix SRAM Rival eTap AXS has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
