Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Travel Front 130mm -
Fork Cane Creek HELM
-
Groupset XTR -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Works 130mm
Drivetrain
Rear Derailleur
Shimano XTR RD-M9100 12 Speed Rear Derailleur SGS Cage(Long)
Shift Levers
Shimano XTR M9100 Right I-Spec EV 12 Speed Shifter
Cassette
Shimano XTR CS-M9100 12 Speed Cassette 10-51t
Crank
Shimano XTR FC-M9120 Crank Arms 175mm
Bottom Bracket
Shimano XTR BB93 Bottom Bracket
Chain
Shimano CN-M9100 Chain - 12 Speed
Wheels
Rims
Stan's Flow MK3
Tires
Kenda Nevegal 2 Pro ATC 29"x2.4" or Kenda Havok Pro 27.5"x3.0"
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
Afterburner Low Rise Handlebar 31.8 x 15 x 740mm Black
Headset
Cane Creek 40 IS42/28.6 - IS52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.53 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 677 mm | 706 mm | 738 mm | 762 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 86 mm | 88 mm |
| Stack | 627 mm | 629 mm | 638 mm | 648 mm |
| Reach | 382 mm | 410 mm | 438 mm | 459 mm |
| Top Tube Length | 569 mm | 598 mm | 629 mm | 653 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 432 mm | 470 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 111 mm | 114 mm | 123 mm | 134 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1108 mm | 1137 mm | 1170 mm | 1194 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 781 mm | 806 mm | 832 mm | 883 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

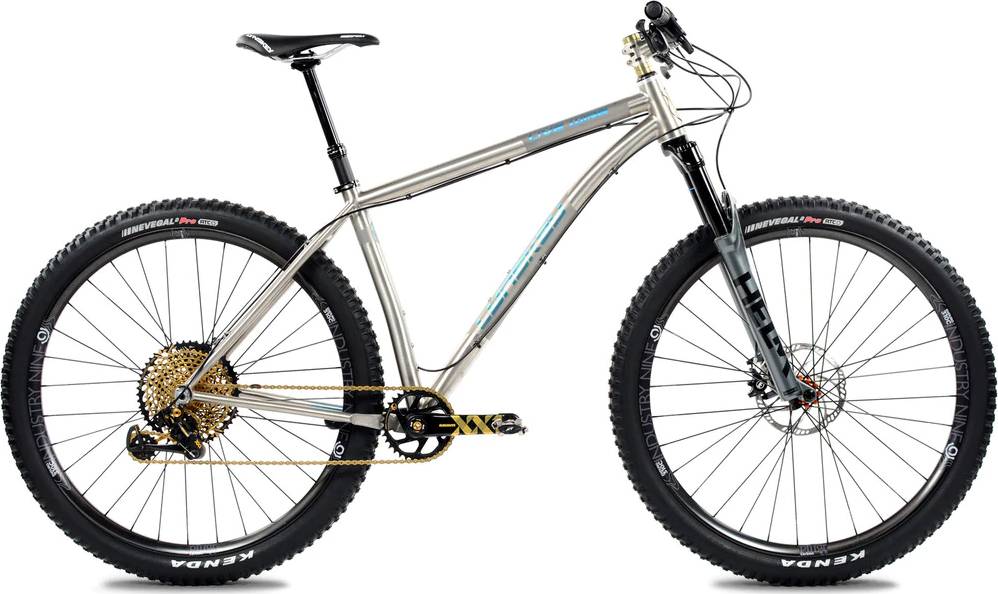

Live Wire Shimano XTR 1×12 completes the Lynskey Live model. Lynskey released 35 bikes variations of this model so far. You can easily view all of the Lynskey Live bikes models from 2019, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The fork installed on this bike is the Cane Creek HELM model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Live Wire Shimano XTR 1×12 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lynskey Live Wire Shimano XTR 1×12 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Lynskey Live Wire Shimano XTR 1×12 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
